2.2 Connect Power Cables
Before You Start
Make sure you have powered off the main power switch of your home.
Steps
1. Loosen the screws on the rear panel of the doorbell, put loops of power cables
(included in the box content) into the screws, and then tighten them.

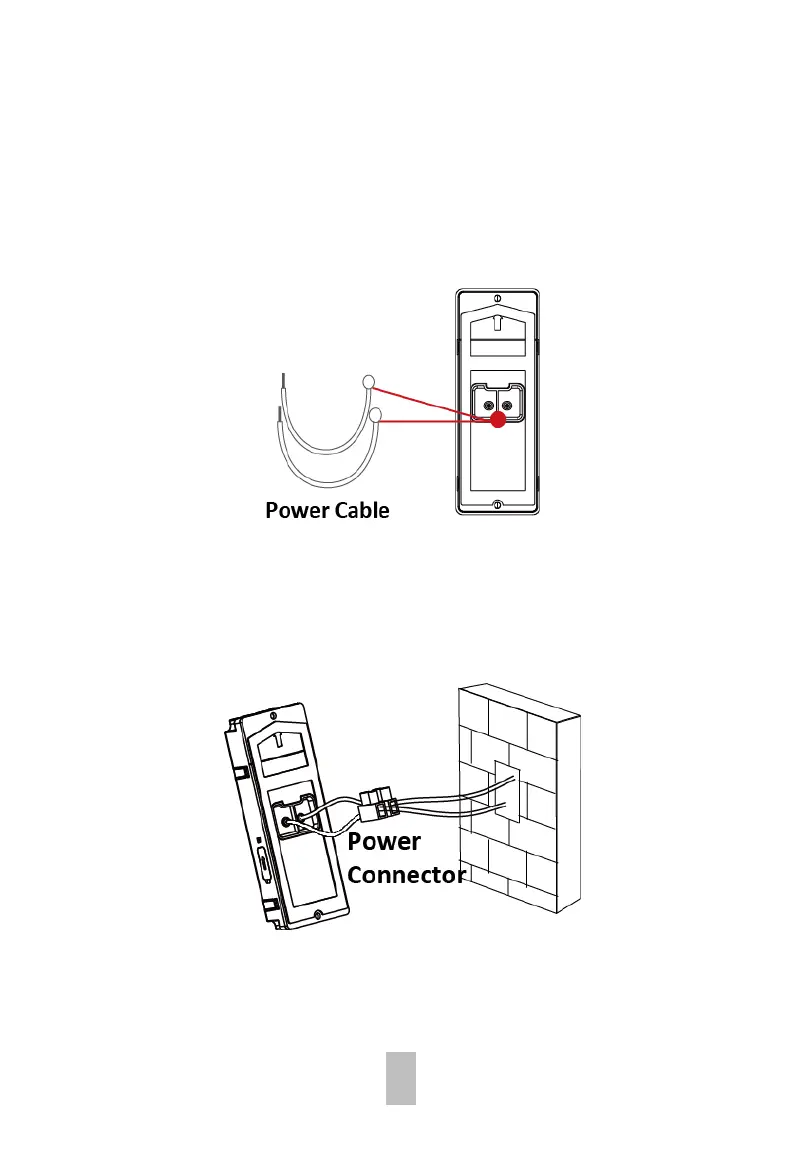

Figure 2-3 Connect Included Power Cables
2. Drill a cable hole on the wall which should be align with the hole on the mounting
template.
3. Pull the power cables from the wall, and connect to the power connector.
4. Connect the power cables on the rear panel of the doorbell to the power connector
(included in the box content).
Figure 2-4 Connect Power Cables
2.3 Install TF Card (Optional)
You can use TF card to store the video files.

HIKVISION DS-KB6403-WIP Specifications

General

Color	Yes
Video codecs	H.264
Certification	CE
Frequency band	2.4 GHz
Number of buttons	2 buttons
Connectivity technology	Wireless
Sustainability certificates	RoHS
Number of displays supported	-
Maximum number of cameras supported	1
Voice codecs	G.711u
Megapixel	2 MP
Sensor type	CMOS
Supported video modes	720p
Viewing angle, vertical	96 °
Viewing angle, horizontal	180 °
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
LED type	IR
Night vision distance	5 m
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Display diagonal	- \
Operating system installed	Linux
Product color	Gray
International Protection (IP) code	IP54
Supported network protocols	TCP/IP, RTSP
Power consumption	0.6 mA
Operating voltage (door opener)	12 V

Weight and Dimensions

Depth	122.4 mm
Width	45.9 mm
Height	28.1 mm
