HIKVISION DS-KB6403-WIP User Manual

11
Steps
1. Remove the faceplate attached on the doorbell to view the front panel and side panel
of the doorbell.
2. Remove the card slot cover.
3. Insert the TF card into the card slot on the side of the doorbell.
4. Cover the TF card slot.

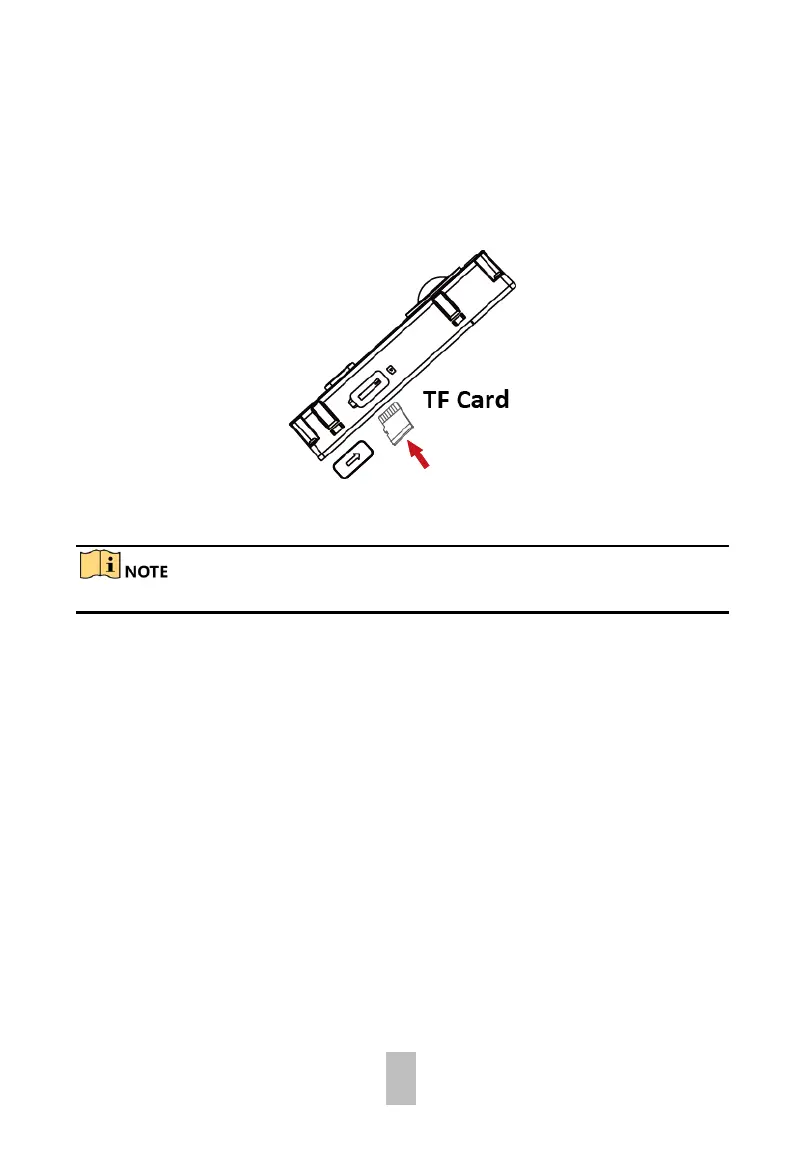

Figure 2-5 Install TF Card
Motion detection does not support recording without the TF card.
2.4 Install Doorbell
Before You Start
 Make sure you have powered off the main power switch of your home.
 Make sure you have connected power cables of the doorbell.
Steps
1. Drill 2 holes on the wall according to the mounting template, and insert the expansion
tubes into the drilled holes.

HIKVISION DS-KB6403-WIP Specifications

General

Color	Yes
Video codecs	H.264
Certification	CE
Frequency band	2.4 GHz
Number of buttons	2 buttons
Connectivity technology	Wireless
Sustainability certificates	RoHS
Number of displays supported	-
Maximum number of cameras supported	1
Voice codecs	G.711u
Megapixel	2 MP
Sensor type	CMOS
Supported video modes	720p
Viewing angle, vertical	96 °
Viewing angle, horizontal	180 °
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
LED type	IR
Night vision distance	5 m
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Display diagonal	- \
Operating system installed	Linux
Product color	Gray
International Protection (IP) code	IP54
Supported network protocols	TCP/IP, RTSP
Power consumption	0.6 mA
Operating voltage (door opener)	12 V

Weight and Dimensions

Depth	122.4 mm
Width	45.9 mm
Height	28.1 mm
