Wall Mounting Shield (Door Station)
48.83 mm
134.5 mm
29.08 mm 19.12 mm
7.6 mm
41.78 mm
26.25 mm
28.02 mm
12±0.05 mm

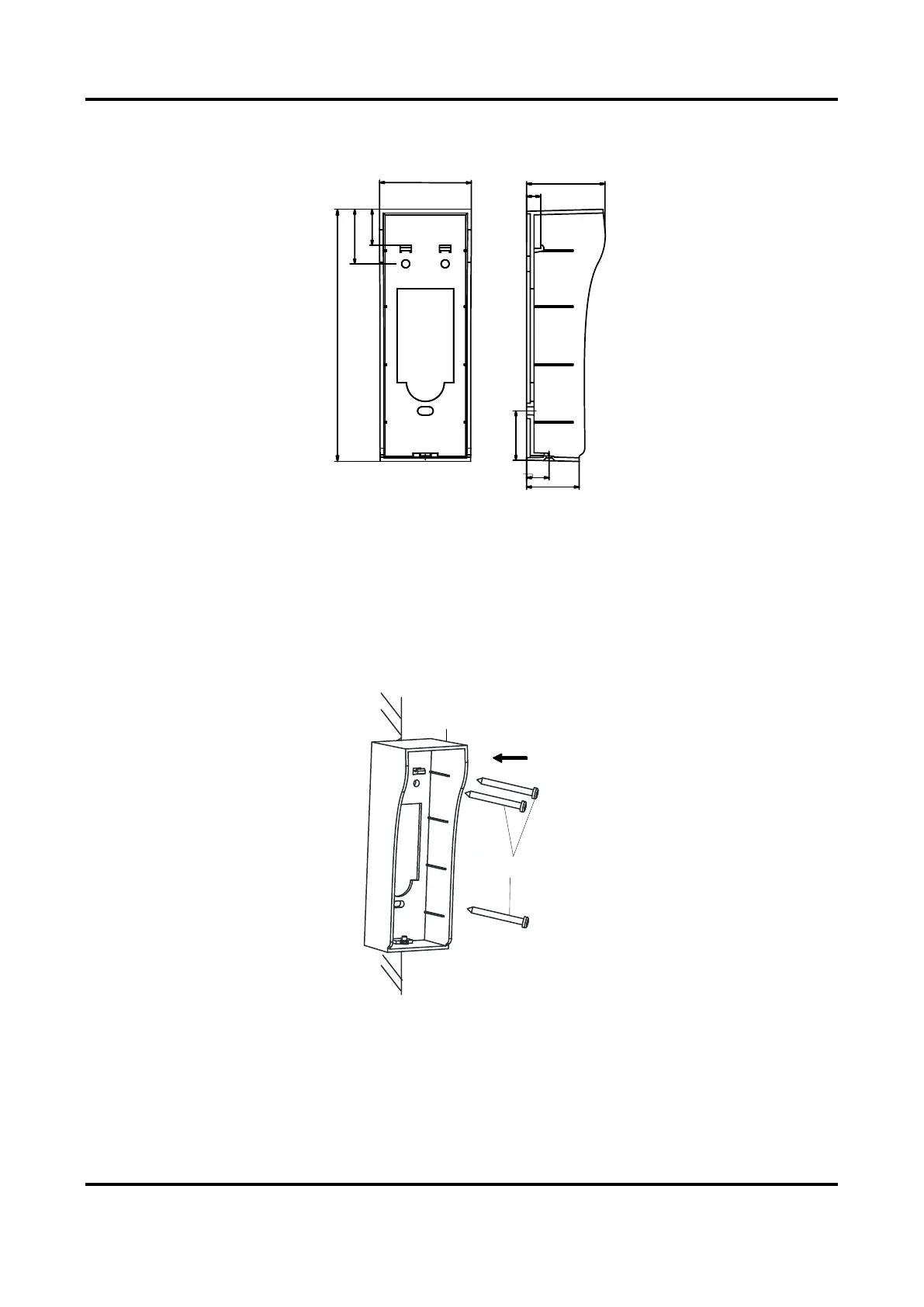

Figure 4-4 Wall Mounting Shield
Wall Mounting (Door Station)
You can follow the following steps to install the door station.
Steps:
1. Fix the wall mounting shield to the wall with 3 screws.
Screws
Wall Mounting Shield
Figure 4-5 Installing the Shield
2. Hook the door station to the shield tightly by inserting the hooks of shield panel into the slots
on the rear panel of the door station.
