5.2. VGA Output Module (Local Preview Image Output Module)
VGA main chip module LVC07A, 6303; LVC07A PIN 2 output single(VS)
and 1 K resistance (RL50) connect 5V voltage, PIN 4 output signal (HS) and
1 K (RL51) resistance connect 5V voltage
BAV99: control VGA output amplification, if BAV99 (Q9) 3 feet low level
(voltage 0 V), it means the system to detect VGA display; If you meet VGA
display, system and output signal and system menu VGA; If behind the VGA
display, the system only output VGA signal; If the high level (close to 3.3 V),
it means the system does not detect the display

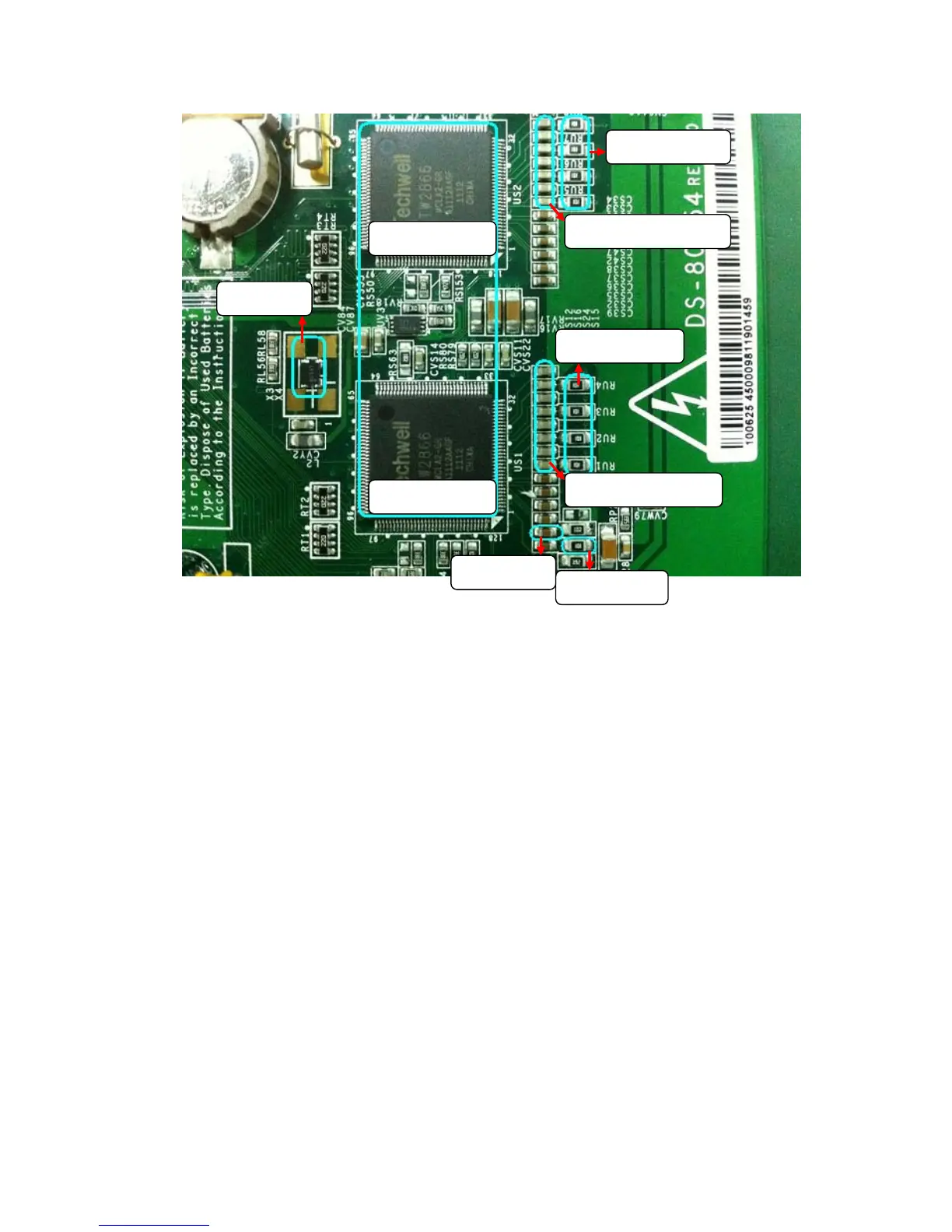

VGA signal output basic schemes:
27M
X4
100
Ω(
RU1-4
CS12/8/13/11
100
Ω
RU9
TW2866
US1
CS18
100
Ω
RU5-8
CS42/48/29/33
TW2866
US2
