Network Camera User Manual
94

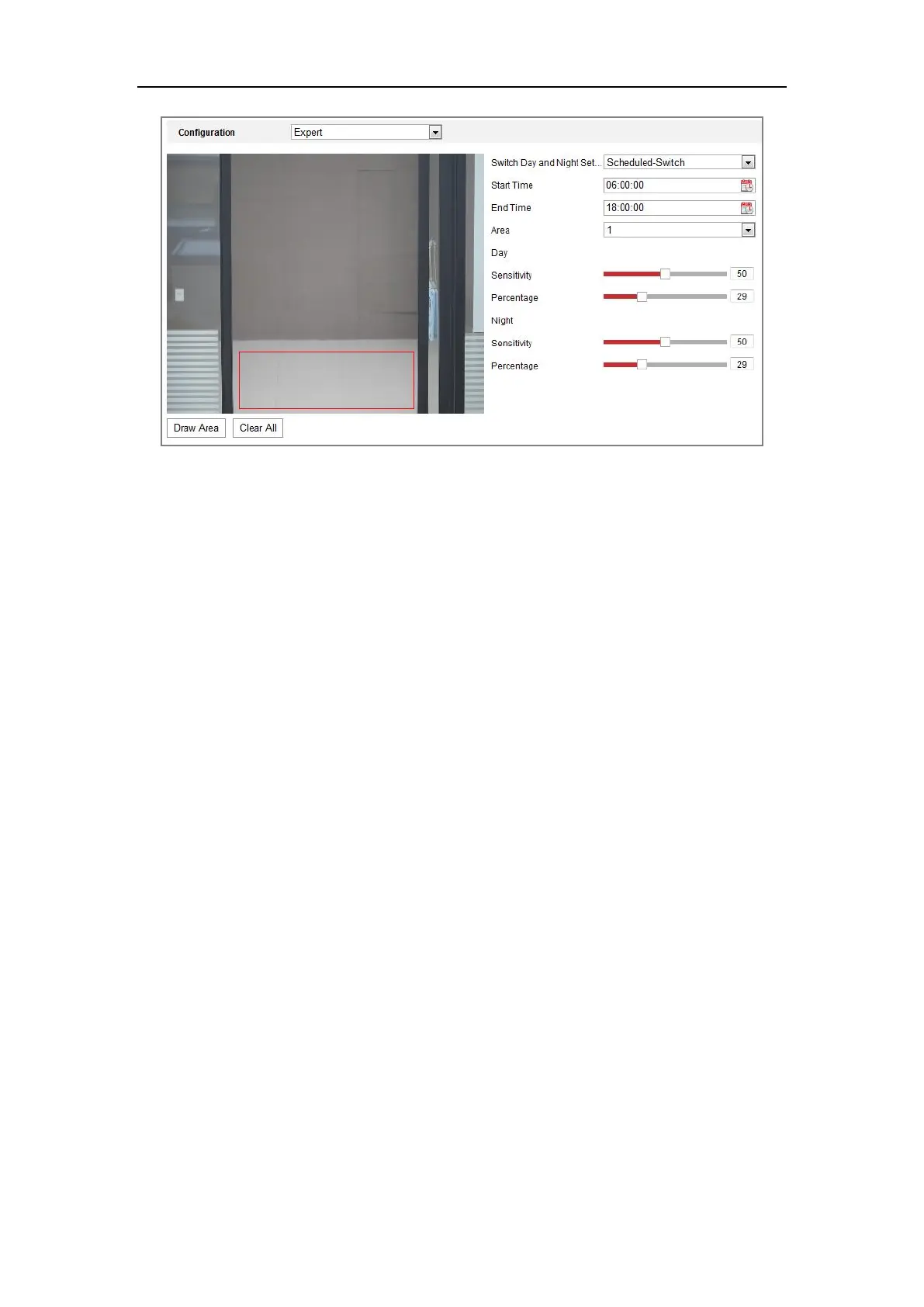

Figure 10-5 Expert Mode of Motion Detection
Day/Night Switch OFF
Steps:
1. Draw the detection area as in the normal configuration mode. Up to 8 areas are
supported.
2. Select OFF for Switch Day and Night Settings.
3. Select the area by clicking the area No.
4. Slide the cursor to adjust the sensitivity and proportion of object on the area for
the selected area.
5. Set the arming schedule and linkage method as in the normal configuration mode.
6. Click Save to save the settings.
Day/Night Auto-Switch
Steps:
1. Draw the detection area as in the normal configuration mode. Up to 8 areas are
supported.
2. Select Auto-Switch for Switch Day and Night Settings.
3. Select the area by clicking the area No.
4. Slide the cursor to adjust the sensitivity and proportion of object on the area for
the selected area in the daytime.
5. Slide the cursor to adjust the sensitivity and proportion of object on the area for
the selected area at night.
