HIKVISION HWI-D141H User Manual

Network Dome Camera·Quick Start Guide
13
Steps:
1. Attach the drill template to the ceiling.
2. Drill the screw holes and cable hole (optional) in the ceiling
according to the drill template.
Note:
Cable hole is required when you adopt ceiling outlet to route the
cables.

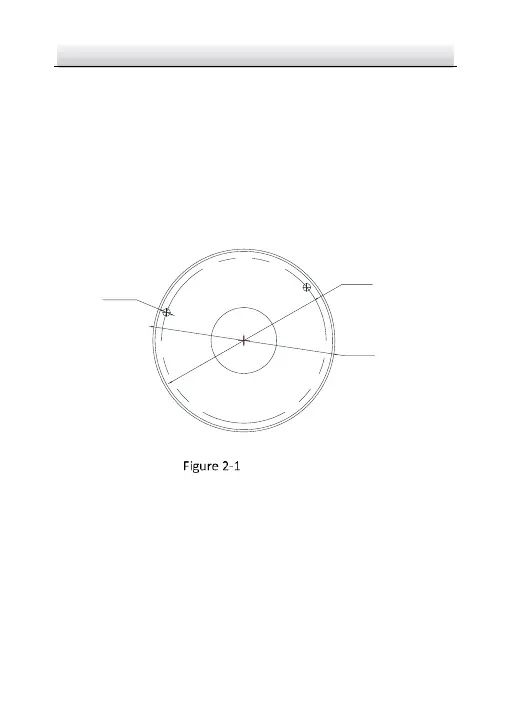

Drill Template
Hole A: for cables routed through the ceiling
screw hole 1: for Mounting Base
1
1
A
3 Φ 4.5 mm (0.2'')
Φ 100.4 mm (4'')
Φ 111 mm (4.4'')
Drill Template
3. Loosen the set screws with a hex wrench (supplied) to remove
the bubble.
Note:
The three screws are not required to be unscrewed totally.

HIKVISION HWI-D141H Specifications

General

Brand	HIKVISION
Model	HWI-D141H
Category	Security Camera
Language	English
