HIKVISION iDS-2CD9396-AIS

Network Traffic Camera • Quick Start Guide
10
Trigger Position
5m
5m
3. m
5m
3.75m
3.75m
3.75m
Lane 3
Pole Height: 6m
Network Traffic Camera 1
26m
Flash Light 3
26m
Radar 3
5m
3.75m
3.75m
3.75m
5m
Lane 2
Lane 1
Flash Light 2
Radar 2
Radar 1
Flash Light 1
Flash Light 4
Radar 4
Radar 5
Radar 6
Flash Light 5
Flash Light 6
Pole Height: 6m
Network Traffic Camera 2
Lane 4
Lane 5
Lane 6
Trigger Position

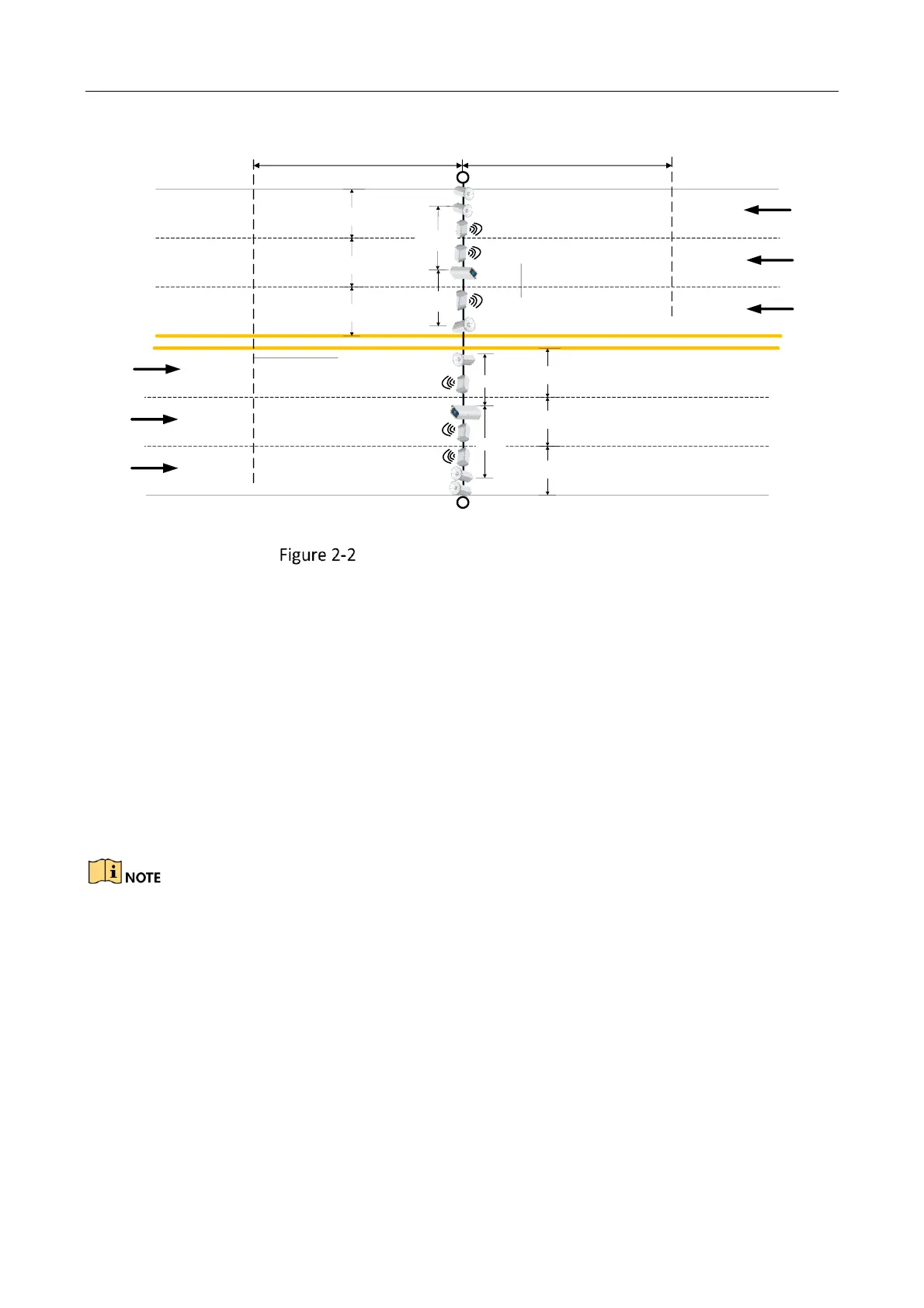

Construction Solution for 9 MP Camera
 The pole height is 6 m. We recommend that captured position should be 26 m or above
horizontal distance from the camera, to keep a complete face imaging.
 Flash light is built in the guard shield for multiple lanes light supplement, improving license
plate capturing and recognizing rate. If there is no built-in flash light, you can connect
supported strobe light.
 Radar should be in the middle of lanes.
 Network traffic camera or flash light should be 0.6 m or above away from the radar.
 The camera will capture multiple pictures continuously. To guarantee the second picture
quality, the picture bottom in captured position should be 18 to 20 m horizontal distance from
the pole.

Radar is used for speed detection.

Radar is not recommended in Video Analysis E-police mode.
