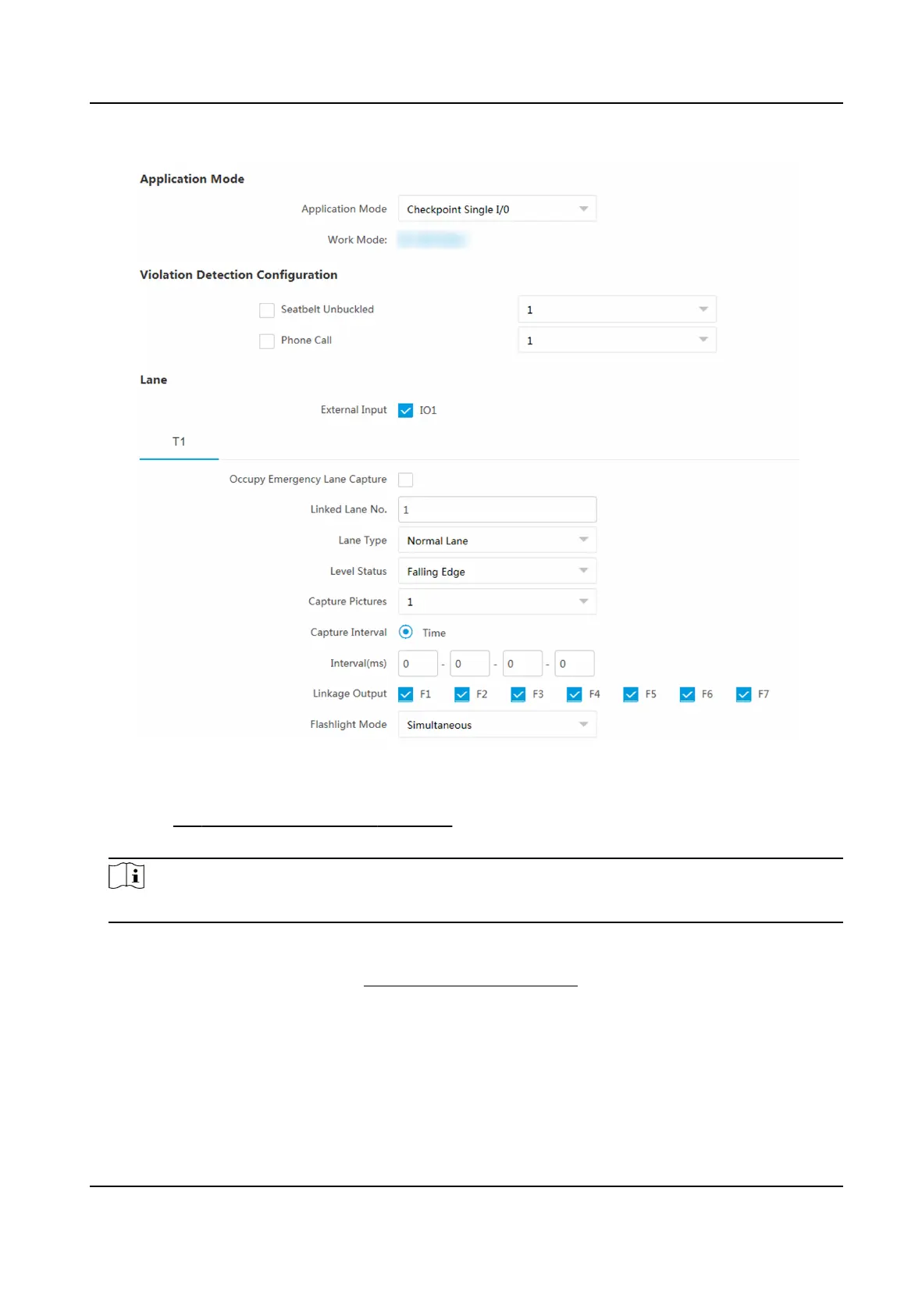

Figure 1-1 Set Checkpoint Single I/O
3.
Oponal: Select the violaon type(s) to be detected, and set the corresponding parameters.
Refer to Set Violaon and Incident Detecon for details.
4.
Check the corresponding External Input according to the connected I/O signal.
Note
Each input corresponds to one lane.
5.
Oponal: Check Occupy Emergency Lane Capture if you want to detect the violaon of
occupying emergency lane.
6.
Set the lane parameters. Refer to
Set Linked Lane Parameters for details.
7.
Set the parameters below.
Level Status
Capture is triggered according to the level signal status. If you select Falling Edge, the device
will trigger capture at the moment that the high level falls to low level. If you select Rising
Edge, the device will trigger capture at the moment that the low level rises to high level.
Network Trac Camera Conguraon Manual
2
