HIKVISION THC-T229-M

 To avoid heat accumulation, good ventilation is
required for the operating environment.
 Keep the camera away from liquid while in use for
non-water-proof device.
 While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
Mark Description
Table 0-1 Mark Description
Mark
Description
DC Voltage
1 Introduction
1.1 Product Features
The main features are as follows:
 High performance CMOS sensor
 Smart light
 4 in 1 video output
1.2 Overview
1.2.1 Overview of Type I Camera
DC12 VIN
Mounting Base
Switch Button
Video Cable
Power Cord
Main Body
Enclosure

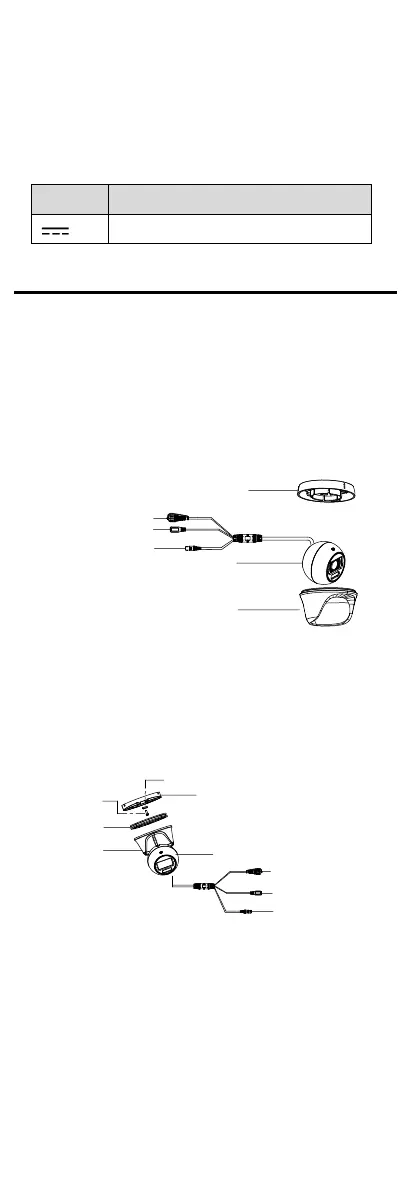

Figure 1-1 Overview of Type I Camera
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
1.2.2 Overview of Type II Camera
DC12 VIN
Screw
Clip Plate
Mounting Base
Trim Ring
Enclosure
Main Body
Switch Button
Power Cord
Video Cable
Figure 1-2 Overview of Type II Camera
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
