HIKVISION Ultra Series Quick Start Guide

Network Box Camera·Quick Start Guide
22
1). For network, alarm input and output, and audio input and
output, plug corresponding plugs to the rear panel of the
camera. See Figure 1-1.

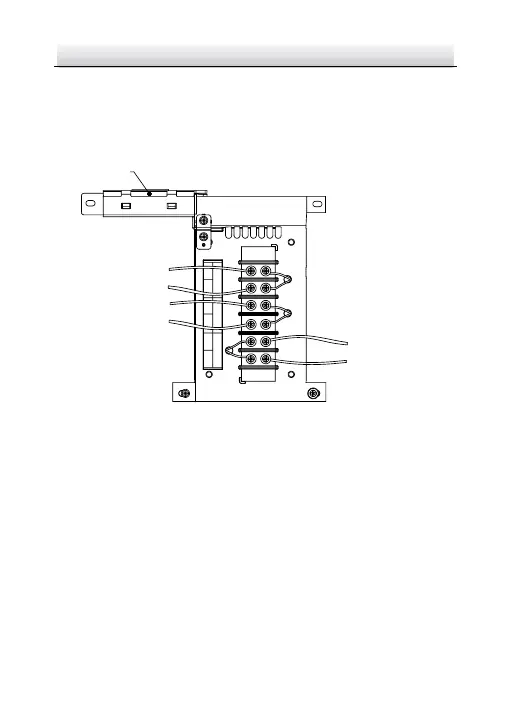

2). For power supply and RS-485, see the following figure.
Heater
To camera
RS-485 -, yellow
RS-485 +, orange
To camera
12 VDC -, black
12 VDC +, red
AC24V IN
~
~
DC12V RS-485
+
-
To power source
24 VAC
+
-
