HIKVISION Ultra Series Quick Start Guide

Network Box Camera·Quick Start Guide
23
Heater
To camera
RS-485 -, yellow
RS-485 +, orange
To camera
24 VAC
To power source
24 VAC
AC24V IN
~
~
DC12V RS-485
+
-
+
-

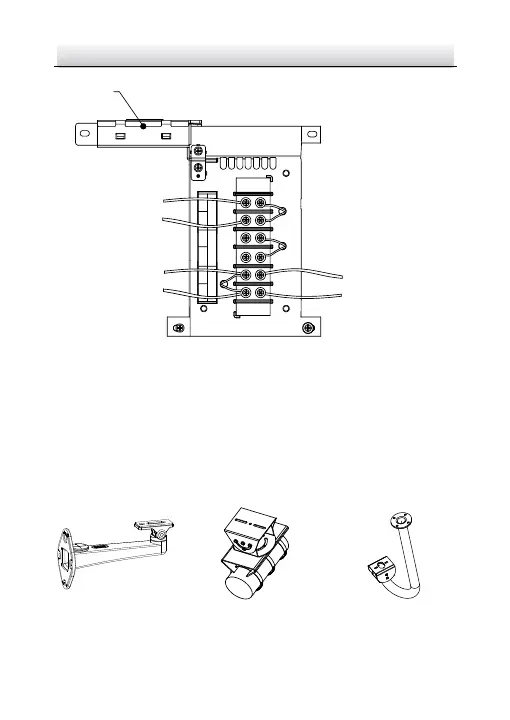

Figure 2-11 Wiring Board in Housing
4. Buckle the housing.
5. Install the housing to surveillance scene.
Using brackets, the housing supports wall mounting, pole
mounting, and pendant mounting. The brackets are shown in the
figures below:
