5.4 Preassembly of aluminum tube for foil packs and cartridges

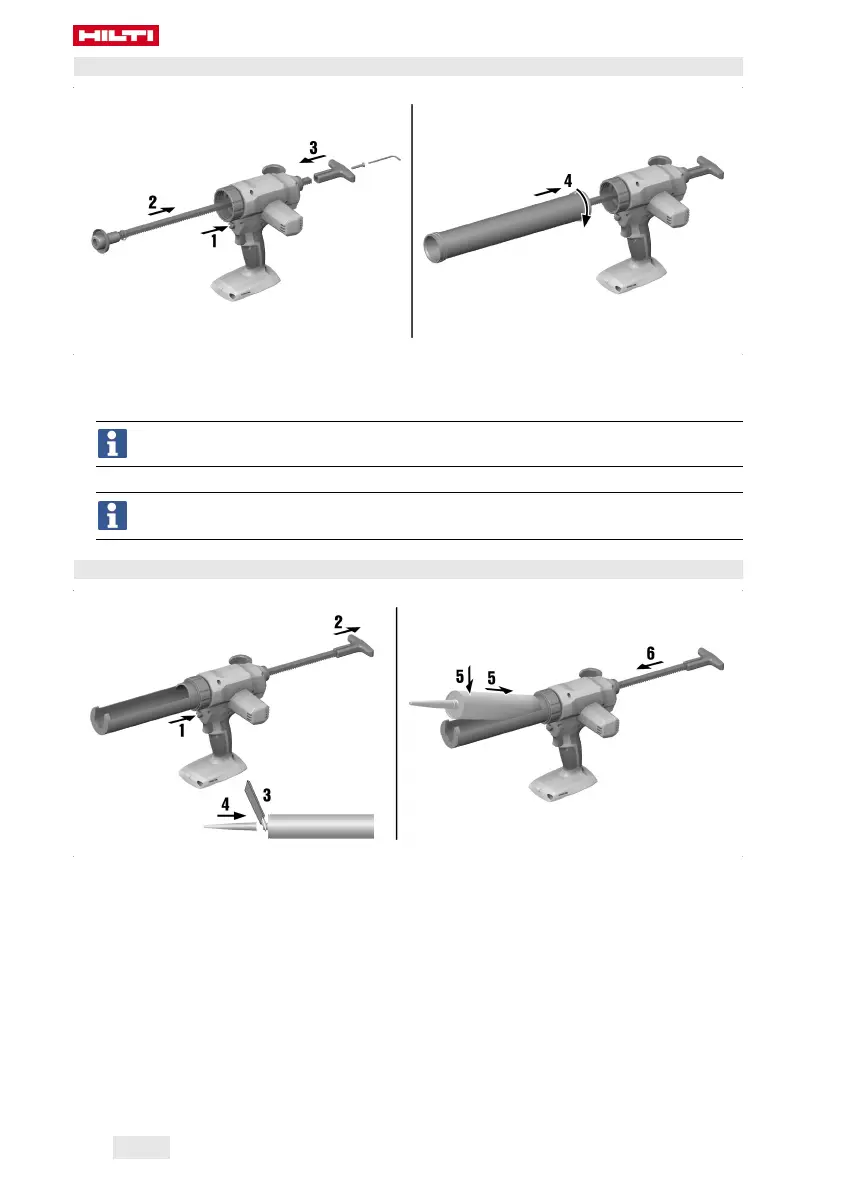

1. Hold the release button pressed.
2. Guide the appropriate (long) piston rod into the power tool so that the toothing is at the bottom.
3. Position the grip at the rear on the piston rod and fix it in place with the screw.
Make sure that the piston attachment for foil packs is mounted on the piston rod.
4. Screw the cartridge holder onto the connecting sleeve.
When preparing the cartridges with the aluminum tube, it is essential that piston attachment for
foil packs is removed again, as otherwise the cartridge will be damaged.
5.5 Inserting the cartridge
1. Press the release button.
2. Pull the piston rod back as far as they will go.
3. Open the cartridge with the aid of a cutter knife.
4. Mount the included nozzle.
5. Insert the cartridge with the base facing the piston into the cartridge holder and tilt the cartridge downward
until the front section is locked in position.
6. Manually push the piston rod forward to ensure that the cartridge is well-seated.
