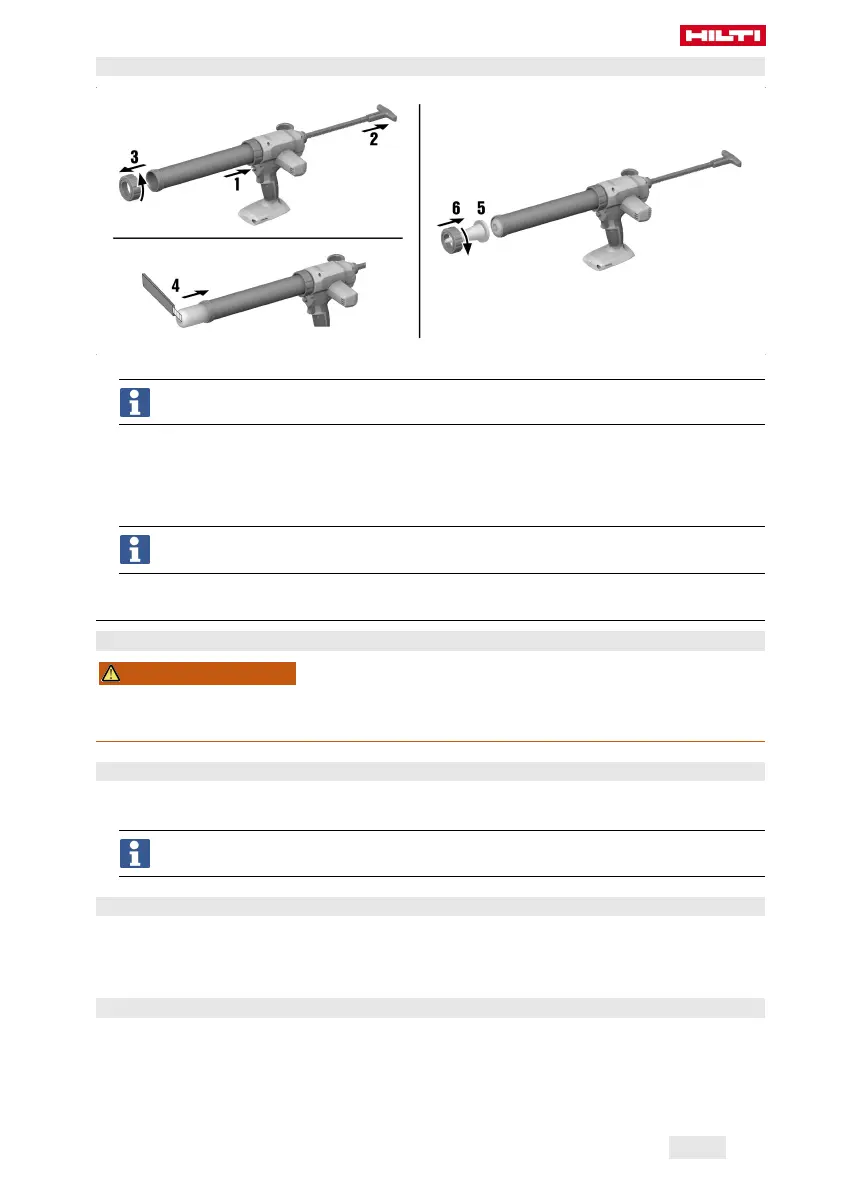

5.6 Inserting foil pack
1. Press the release button.
Make sure that the piston attachment for processing foil packs is screwed onto the piston rod
2. Pull the piston rod back as far as they will go.
3. Unscrew the front panel.
4. Open the foil pack with the aid of a suitable tool and insert the foil pack.
5. Mount the cover provided with the foil pack including the nozzle.
6. Screw on the front panel again.
We recommend pressing the piston rod forward until resistance is felt. The piston is now rests on
the cartridge and application can then be started as quickly as possible.
6 Types of work
6.1 Comply with all safety instructions and instructions for use.
WARNING
Chemicals hazard Incorrect use can lead to injury.
▶ Prior to use, read and comply with the safety data sheet for the product, the instructions on the packaging
and the instructions for use of the foil pack.
6.2 Pressing out compound
1. Press the switch.
2. Press out the compound.
The speed with which the compound is output can be varied with the aid of the speed control wheel.
6.3 Removing the cartridge
1. Press the release button.
2. Pull the piston rod back as far as they will go.
3. Lift the cartridge at the front and pull it out of the cartridge holder.
6.4 Removing the foil pack
1. Unscrew the front panel.
2. Remove the nozzle together with the remaining foil pack.
