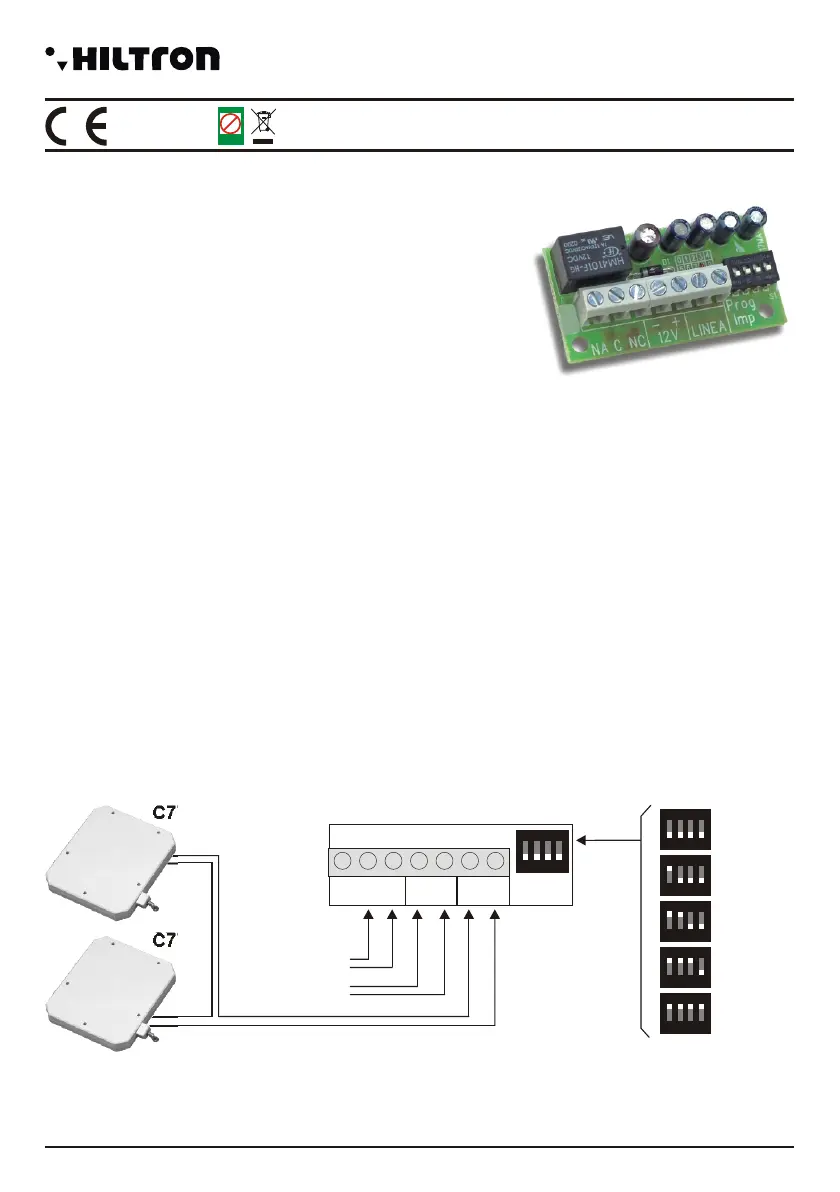

SCHSW
Card counter pulses for switch contacts
! Detection from 1 to 5 pulses.
! Sensitivity adjustment through dip-switch.
! Output relay contacts with C / NC / NO.
! Rated supply voltage: 13Vcc ±5%
! Absorption: 50mA
! Safety degree: 1
! Environmental class: 2
! Dimensions: 77x67x28mm
! Accordance with standards CEI EN 50131-1
SCHSW is an electronic card-counting pulses
useful to connect or a series of contacts "switch" for
roller shutters, or to a series of contacts to vibration.
Be possible to program, through dip-switch,
the quantity of pulses required for the activation
of the relay output. This provides a precise
adjustment of the sensitivity of the contacts
"switch" connected.
INSTALLATION
For installation, please refer to the connection diagram below. Proceed, therefore, the
sensitivity adjustment: with micro-switches can be set the number of pulses that the card must be
noted on the line to activate the relay output
2
217ADIE-3.03
not active
2 pulses
3 pulses
4 pulses
5 pulses
security
Pb
Lead free
RoHS
compliant
RAEE
Made in Italy
BT2014/35/UE
EMC2014/30/UE
1
1
1
1
1
2
2
2
2
2
3
3
3
3
3
4
4
4
4
4
2S
C778
C778
SCHSW
13Vcc ±5%
Zone
NA
12Vcc
+
-
NCC LINEA
1 2 3 4
