9

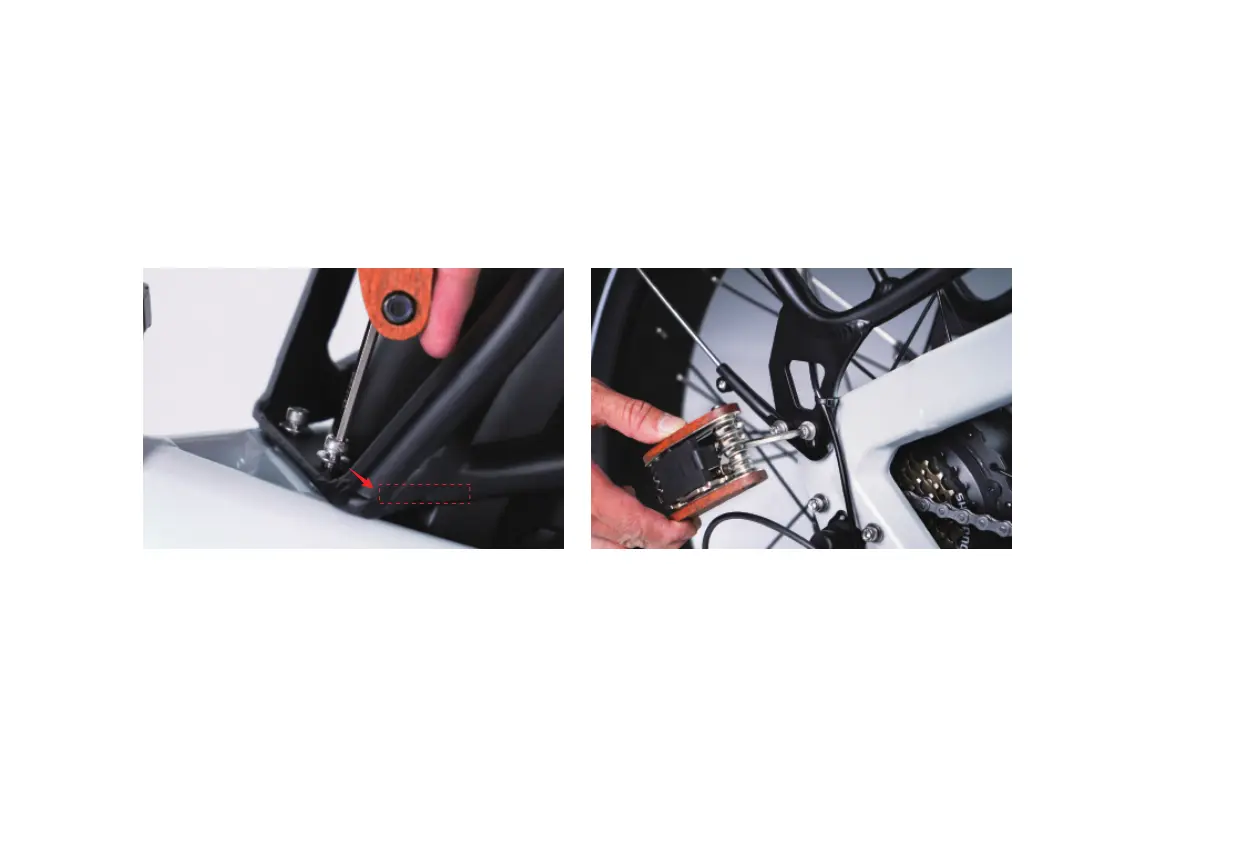

Remove the bolts with washers located a couple inches behind the seat post.
Place the rack down and adjust placement until the holes on the end are aligned, and screw the bolts back in. Make sure the washer is on top of the
rack, rather than underneath, as shown in the below image.
Tighten the eyelet bolts on both sides of the rear rack to the frame.
◆
Rear Rack Installation (4mm Hex Wrench)
Step 1:
Step 2:
Step 3:
The rear rack comes loosely attached to the bike, but has not yet been fully secured.
Bolt & washer
