Hiniker 6000 - Single Lift Assist Assembly

Page 5
SERIES 6000 ROW CULTIVATOR
11/10
S
E
C
5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
7
21
22
23
24
25
20
19
21
17
9
26

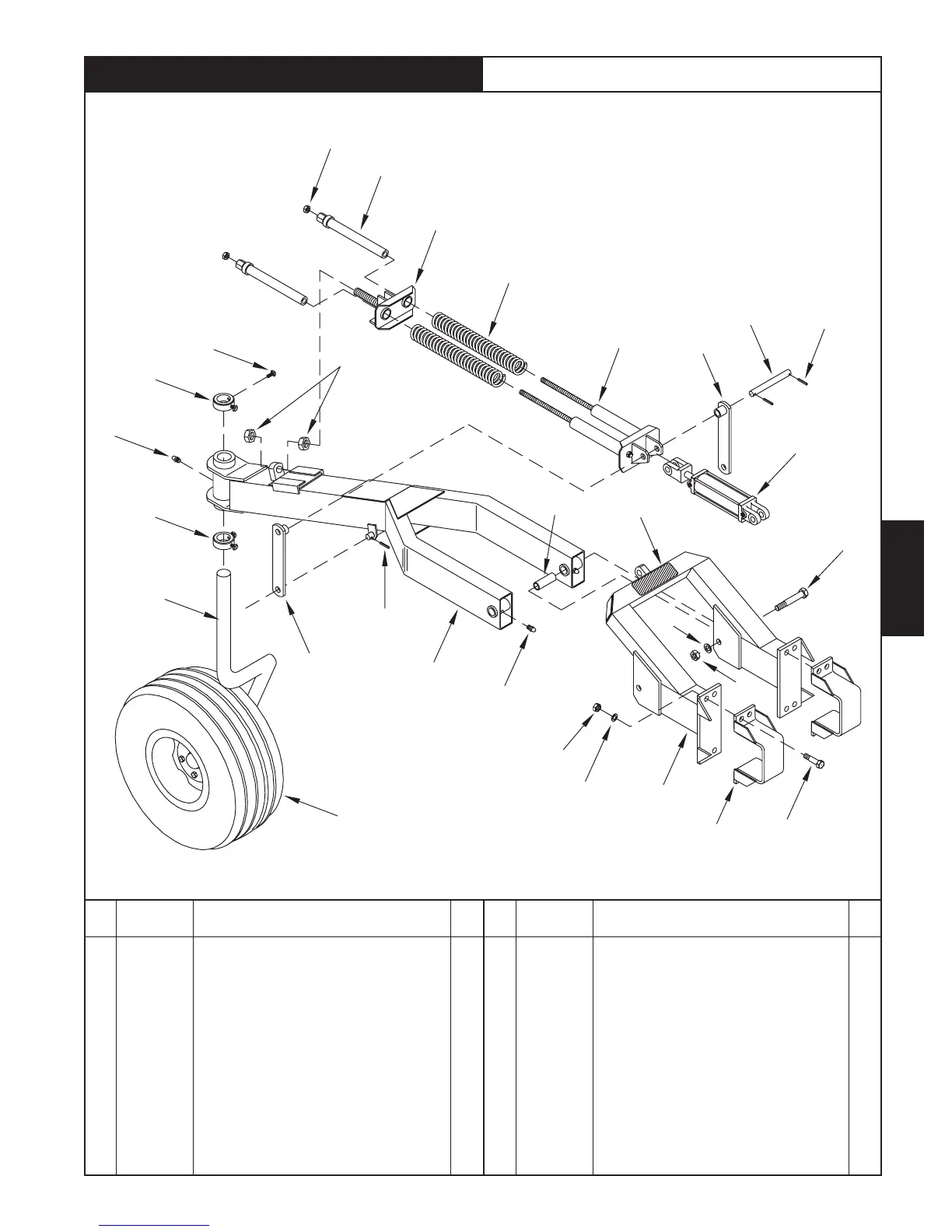

SINGLE LIFT ASSIST ASSEMBLY
REF.
NO.
PART
NUMBER
DESCRIPTION QTY.
REF.
NO.
PART
NUMBER
DESCRIPTION QTY.
1
2
3
4
5
6
7
8
9
10
11
12
13
81002664
81004203
81004153
81002661
880-001-071
81002660
81002647
81002648
953-003-017
81004503
950-001-186
950-001.168
950-001-210
951-001-024
Rear Mast Weldment
Front Mast Weldment
Mount Strap Weldment
Rear Guide Weldment
Compression Spring
Front Guide Weldment
Link Arm Weldment
Cylinder Arm Pin
Spring Pin 5/16 x 2
Hydraulic Cylinder 3 x 8 (See Sec. 3 Page 8)
Hex Head Cap Screw 1-8 x 6 Gr. 5
Hex Head Cap Screw Fits 7 x 7
Hex Head Cap Screw 7/8 x 10 Gr. 5 Fits Twin 5 x 7
Hex Nut 1-8
1
1
2
1
2
1
2
1
4
1
2
8
8
2
14
15
16
17
18
19
20
21
22
23
24
25
26
952-001-009
952-001-008
951-001-010
955-001-001
850-001-568
950-008-009
81002607
805-001-105
810-002-188
81002655
034-05173
951-001-022
6013
Lock Washer 1 Inch
Lock Washer 7/8 Inch
Hex Nut 7/8-9
Grease Fitting
Tire And Rim Assembly 9.5L x 15 (See Sec. 5 Pg. 6)
Square Head Set Screw 1/2-13 x 1
Caution Decal
Stern Collar
Sleeve
Spring Guide Weld
Uni-Torque Lock Nut 3/4-10
Hex Nut 1 1/4-7
Caster Stem Spindle And Hub Ass’y (See Sec. 5 Pg. 6)
Complete Single Lift Assist
2
8
8
3
1
4
1
2
2
2
2
2
DWG. NO. 2883
