INSTALLATION OF SAFETY
CABLE SUPPORT

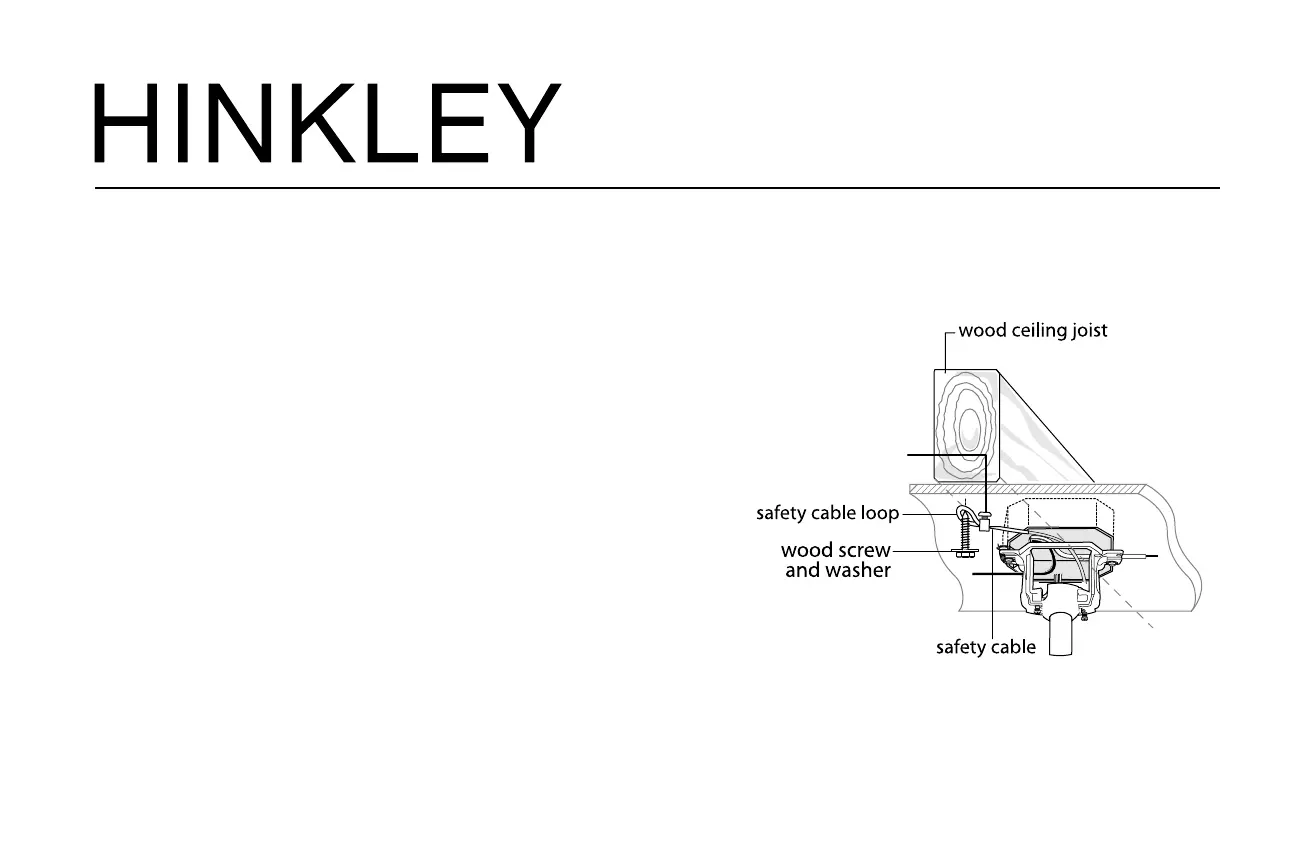

Attach the wood screw and the flat washer to the ceiling joist as
shown (do not fully tighten). Slide the cable clamp onto the
safety cable from the fan. Loop the safety cable around the
wood screw that was just attached to ceiling joist. Feed the end
of the cable into the clamp and pull as much cable through as
possible. Firmly tighten screw in the clamp. Cut o excess
cable.
safety cable clamp
