Hisense 40D50P - Making Connections; HDMI, Component, and AV Inputs

6 English
Making Connections
HDMI/COMP/AV

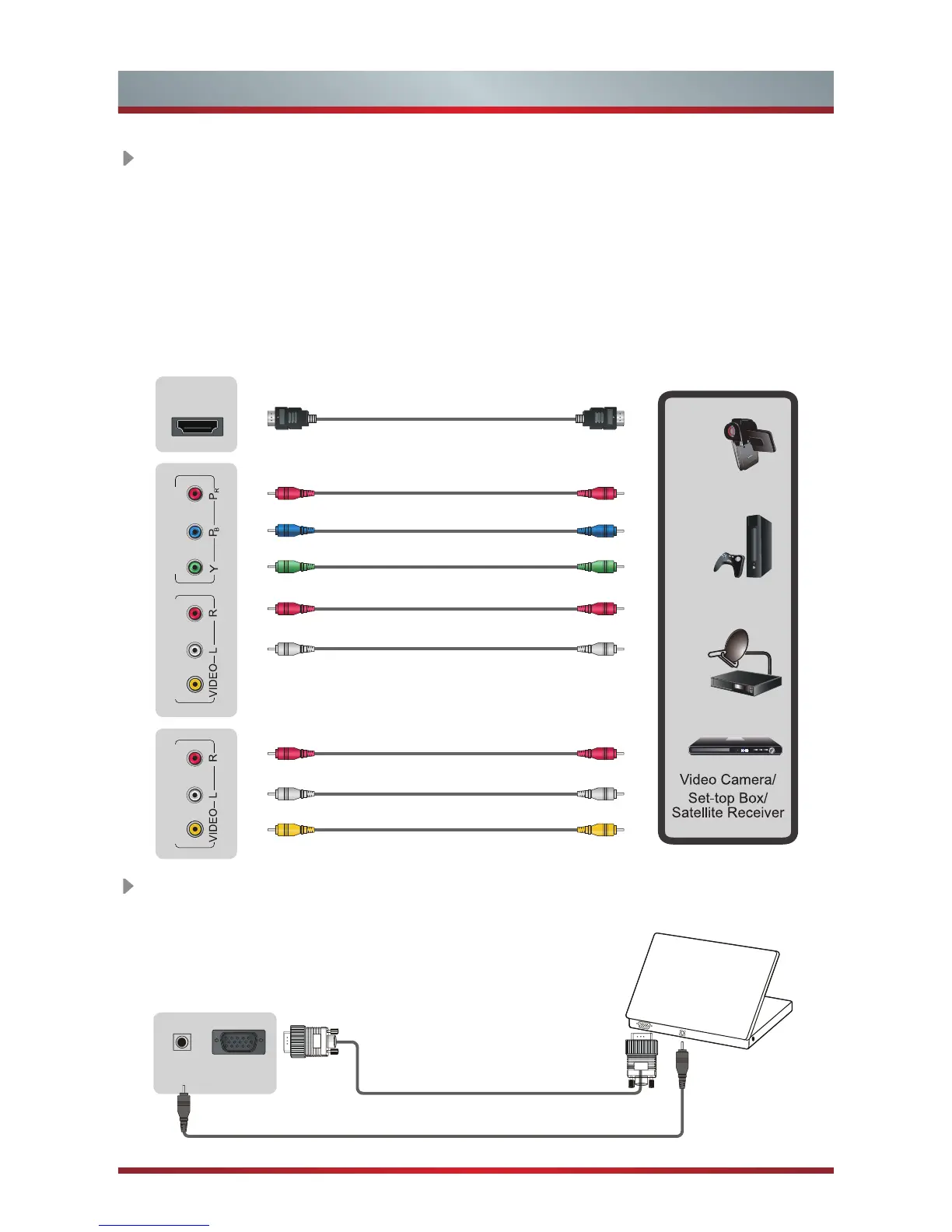

Connect a HDMI / Comp / AV cable from an external A/V equipment. No sound
connection is needed for HDMI to HDMI connection. If the signal resolution does not
match the specification table, you need to change the setting of device according to
the table. Please consult your device user manual for instruction.
·
To select the HDMI / Component / AV
Press [Source] button, when the list of input Source appears, press [
▲/
▼] to select
the source [HDMI] / [YPbPr] / [AV], then press [OK] to connect.
Red(PR/CR)
Blue(PB/CB)
Green(Y)
Red(R)
White(L)
Yellow(Video)
Red(R)
White(L)
VGA & AUDIO
Connect a VGA cable and an audio cable from the PC.
Press [Source] button, when the list of Input Source appears, press[[
▲/
▼] to select
the source [PC], then press [OK] to connect.
TV JACK
PC/DVI
AUDIO IN
VGA
COMPONENT IN
AV IN
(not included)
(not included)
Blue(P
B
/C
B
)
Green(Y)
(not included)
White(L)
(not included)
Red(P
R
/C
R
)
(not included)
Red(R)
AV IN
(not included)
White(L)
(not included)
Yellow(Video)
(not included)
Red(R)
P
R
P
B
Y
R
R
L
L
VIDEO
TV JACK
(not included)
HDMI cable
HDMI
Video Effect:
BEST(HDMI)
BETTER(COMP)
GOOD(AV)
AV&COMP AUDIO INAV&COMP AUDIO IN
