2

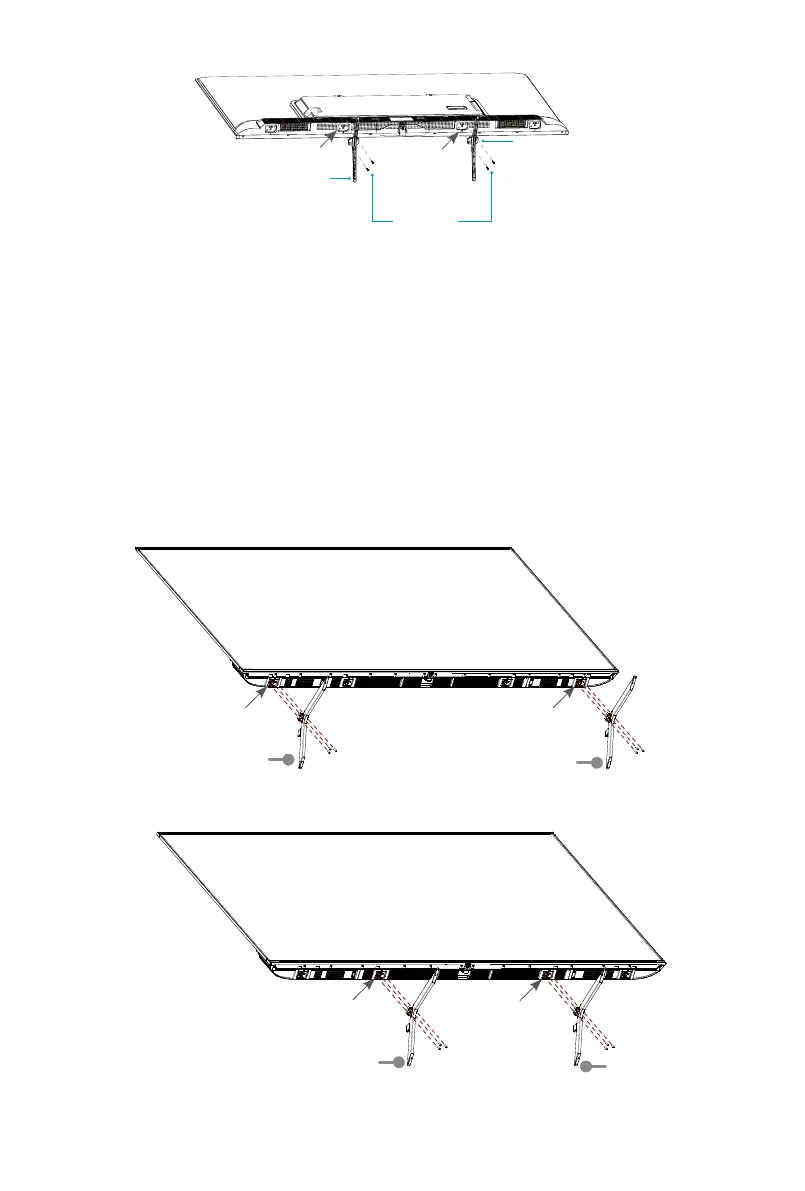

1. Carefully place your TV face-up on a soft, flat surface to prevent damage to the TV or
scratching to the screen.
2. Take out the 2 stands from the accessory bag and then insert the stands into the bottom
slots of the TV.
3. Secure the stands to the TV with the 6 screws in accessory tightly.
Note: If your table is long enough to place the TV on top of, then insert the base stands into the
screw holes ‘A’ that are shown in the illustration. If your table is NOT long enough, then insert
the base stand into the screw holes ‘B’ that are shown in the illustration. Note that these two
installation methods cannot be mixed.
85"
Base Stand
B
B
Screws:
M5×12
Base Stand
Screws:
M5×16
Base Stand
Base Stand
Screws:
M5×16
Base Stand
Screws: M5×16
Base Stand
Screws: M5×16
A
A
B
B
