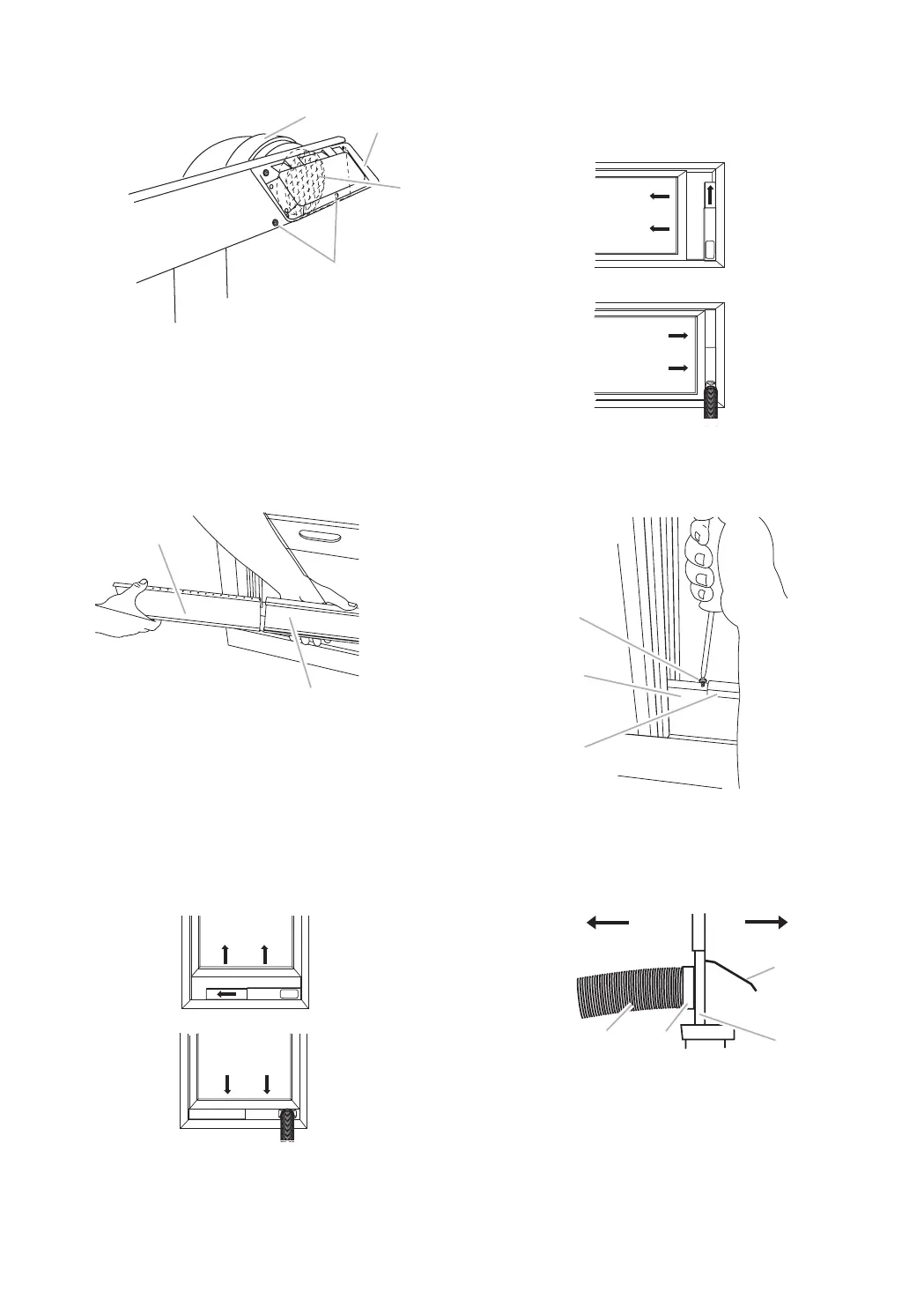

Rain cover--Horixontal Installation
NOTE: For casement window installation, the window slider kit
may be installed vertically with the window slider kit opening
at the bottom.
3. Open the window.
4. Measure the window opening.
If the window opening is too narrow for the window slider kit,
remove the inner slider section from the window slider kit.
■
6. Inset ½” screw (provide 2) into the hole in the inner slider
section that is closest to the end of the outer slider section of
A. ½”screw (provide 2)
B. Inner slider section
C. Outer slider section
7. Close the window onto the window slider kit to secure.
A. To portable air conditioner
B. Outdoors
C. Rain cover
D. Window slider kit
E. Window exhaust adapter
F. Flexible exhaust hose
A
B
C
D
A B
C
E
F
A. Window exhaust adapter
B. Rain cover
C. Outlet grille
D. Bolts inserted into unused
holes in Window slider kit
A. Inner slider section
B. Outer slider section
Using a saw, cut the inner slider section to fit the window
opening.
Slide the inner slider section into the outer slider section of
the window slider kit.
■
■
5. Place the window slider kit into the window, extending it to fit
the width of the window. Be sure the rain cover is on the
outside of the window.
A
B
A
B
C
D
