Hisense Hi-Dom User Manual

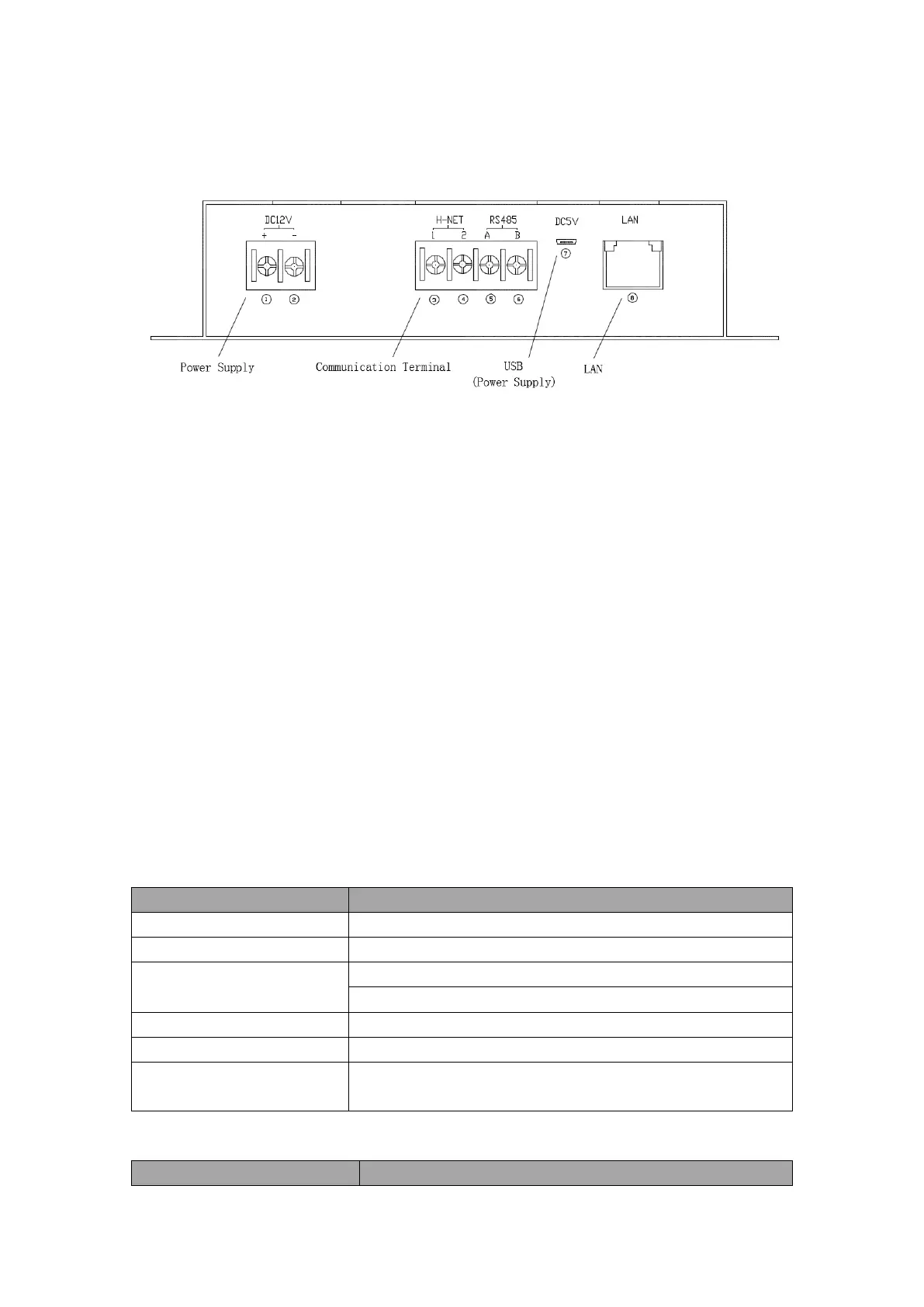

Figure 1.3 Terminal marking diagram
1.2.2 Terminal marking instruction
① : Power input(DC12V)-------------Non-polarized
② : Power input(DC12V)-------------Non-polarized
③ : H-NET signal input ---------------Non-polarized
④ : H-NET signal input ---------------Non-polarized
⑤ : RS485 A ----------------------------positive
⑥ : RS485 B ----------------------------negative
⑦ :USB(DC5V)
⑧ : LAN interface
※DC12V and DC5V power supply can not simultaneously access.
1.3 Specifications of aircondition adapter
The hardware specifications of this unit are shown in Table 1.1; communication specifications are
shown in Table 1.2 and Table 1.3.
Table 1.1 Hardware Specifications
Item
Specification
Power Supply
DC 12V
Power consumption
Below 1.5W
Environmental conditions
Ambient temperature:0~40℃
Ambient humidity:20~85%( non-condensing)
Dimensions
Length:180mm Width:110mm Height:40mm
Weight
0.55kg
Installation conditions
Using screws or guide rail for indoor installation
Horizontal (installation) / vertical (wall-mounted)
Table 1.2 H-NET (communication wiring) Communication specifications
Item
Specification
