Communication objects
Air-condition outdoor unit and indoor unit
Communication wiring
Non-polarized 2 core wire
Communication mode
Half-duplex communication
Communication synchronous
mode
asynchronous communication
Communication speed
9600 bps
Wiring distance
Total length less than 1000m
Number of air conditioners
connected
128 indoor units
Table 1.3 LAN(Ethernet) Communication Specification
Item
Specification
Communication objects
air conditioning management server, switch
Communication wiring
LAN(Ethernet)
Communication mode
IEEE802.3 standard(10BASE-T/100BASE-TX)
Wiring distance
100m
2. Air-conditioning adapter installation and wiring
2.1 Installation site
Please choose a place that meets the following conditions to install the unit.
○Please choose the site as specified in the [preamble] of this installation manual.
○This unit is to be mounted in the weak current control box.

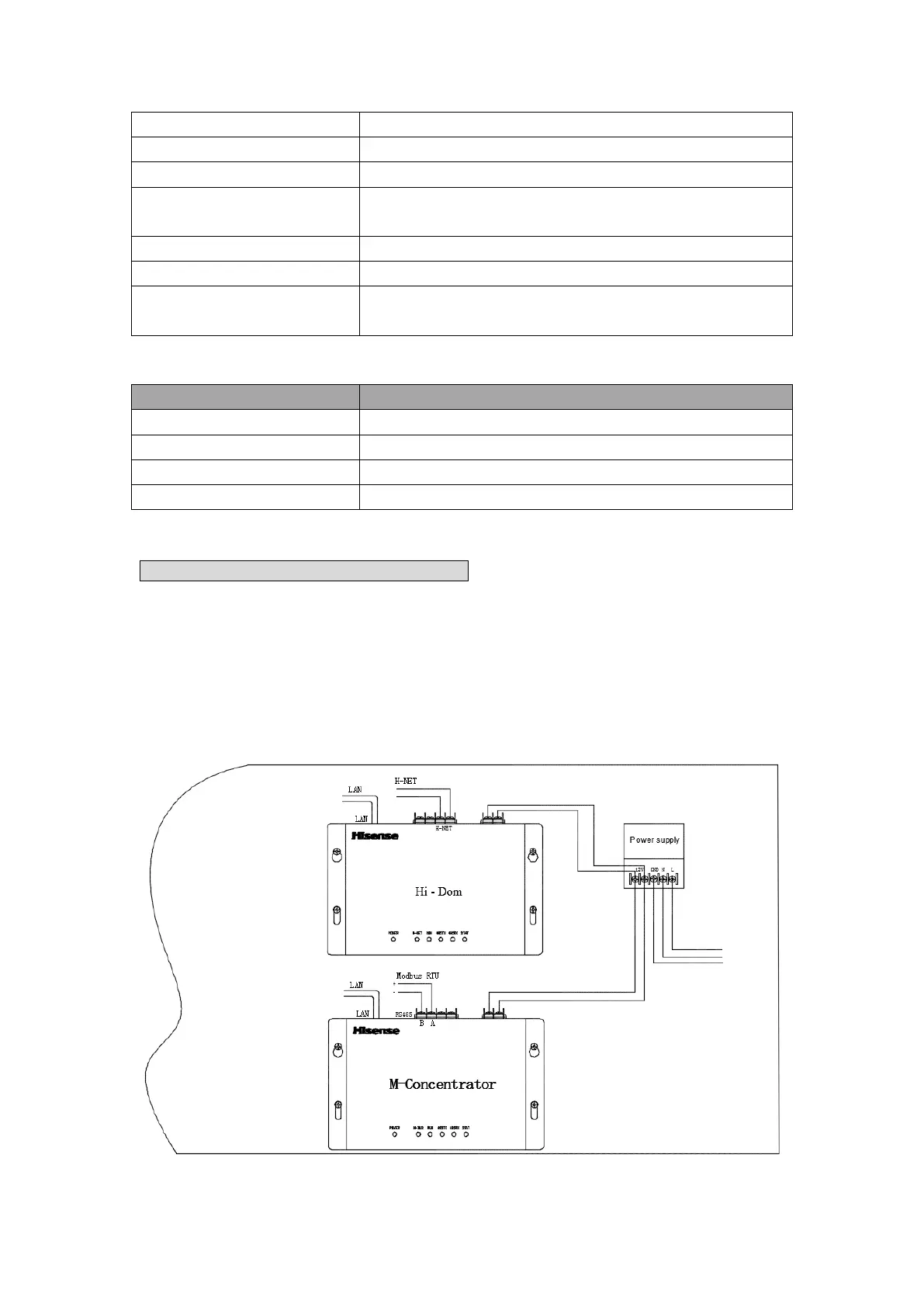

Figure 2.1 Installation diagram
