Hisense HKF-D1EC/C - Dimensions and Weight Data

pag. 28 Installation, Use and Maintenance Manual - HKFD1EC/C Series
English

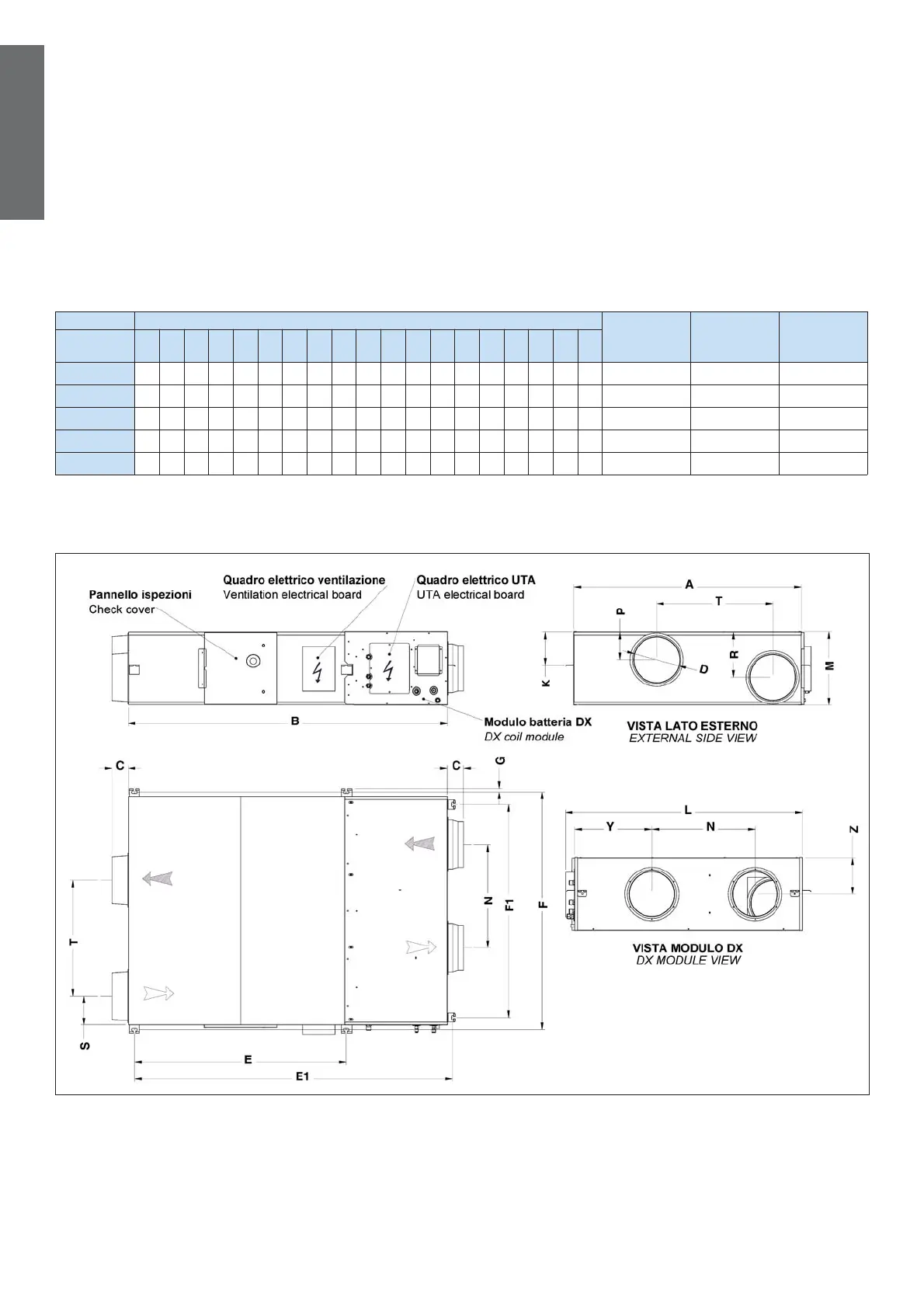

1.4 Dimensions and weights HKFD1EC/C
(1) Multiple = Multispeed > 3
Man = Manual by selector switch or control panel; 0-10V = By potentiometer or control panel; VSD = Modulation by air quality or air humidity
sensor
(2) Sound pressure level calculated at 1 m far from: ducted supply-exhaust air/ducted
return-fresh air intake/service side, at nominal conditions.
(3) Outside air at -5° 80% RH; room air at 20°C 50% RH
(4) Outside air at 32° 50% RH; room air at 26°C 50% RH
(5) Refeer to EU 1253/2014 regulation: at nominal pressure; air conditions refer to EN 308 standard
(6) Air inlet condition: 13°C DB, RH 40% (11°C DB, RH 45%); condensing temp. 40°C
(7) Air inlet condition: 28,5°C DB, RH 50%; evaporating temp. 7°C
Modello / Model Dimensione / Dimension [mm]
Peso netto / lordo
Weight net / gross
[Kg]
Dimensioni imballo
Packing dimensions
[mm]
Sovrapponibilità
imballaggi
Packaging overlap
HKFD1EC/C A B C D E E1 F F1 G L T K M N P R S Y Z
50 904 1450 107 200 825 1445 960 830 19 955 500 135 270 350 135 135 202 350 135 90 - 98
1750x1120x420
6
65 884 1745 85 250 1115 1735 940 810 19 945 428 170 388 390 170 170 228 340 170 95 - 105 1750x1120x420 5
80 1134 1745 85 250 1115 1735 1190 1060 19 1200 678 170 388 500 170 170 228 415 195 100 - 110
2010x1380x540
5
100 1216 1750 85 250 1130 1750 1273 1140 19 1290 621 171 388 550 146 241 151 415 195 105 - 120
2080x1460x540
5
130 1216 1750 85 250 1130 1750 1273 1140 19 1290 621 171 388 550 146 241 151 415 195 105 - 120
2080x1460x540
5
