a. Mark both front tire tread centers.
b. Face the steering wheel straight ahead.
c. Measure distance □,
A
between the marks.
d. Rotate the front tires 180° until the marks
are exactly opposite one another.
e. Measure distance □,
B
between the marks.
f. Calculate the toe-in using the formula given
below.
g. If the toe-in is incorrect, adjust it.
3. Adjust:
• toe-in
WARNING
:
Make sure that left / right tension rods
have
turned the same turns . Otherwise the UTV
will still go UTV left and right even though
. Operate the UTV to go forward straightly
with steering bar , easily causing to
getting out of contor and accident . After
adjusting the toe-in correctly drive the
UTV to move forward a span of distance
by fastering the steering bar so as to
make , sure if the Steering bar is pormal ,
if not , adjust the tension rod left or right
within the specification .

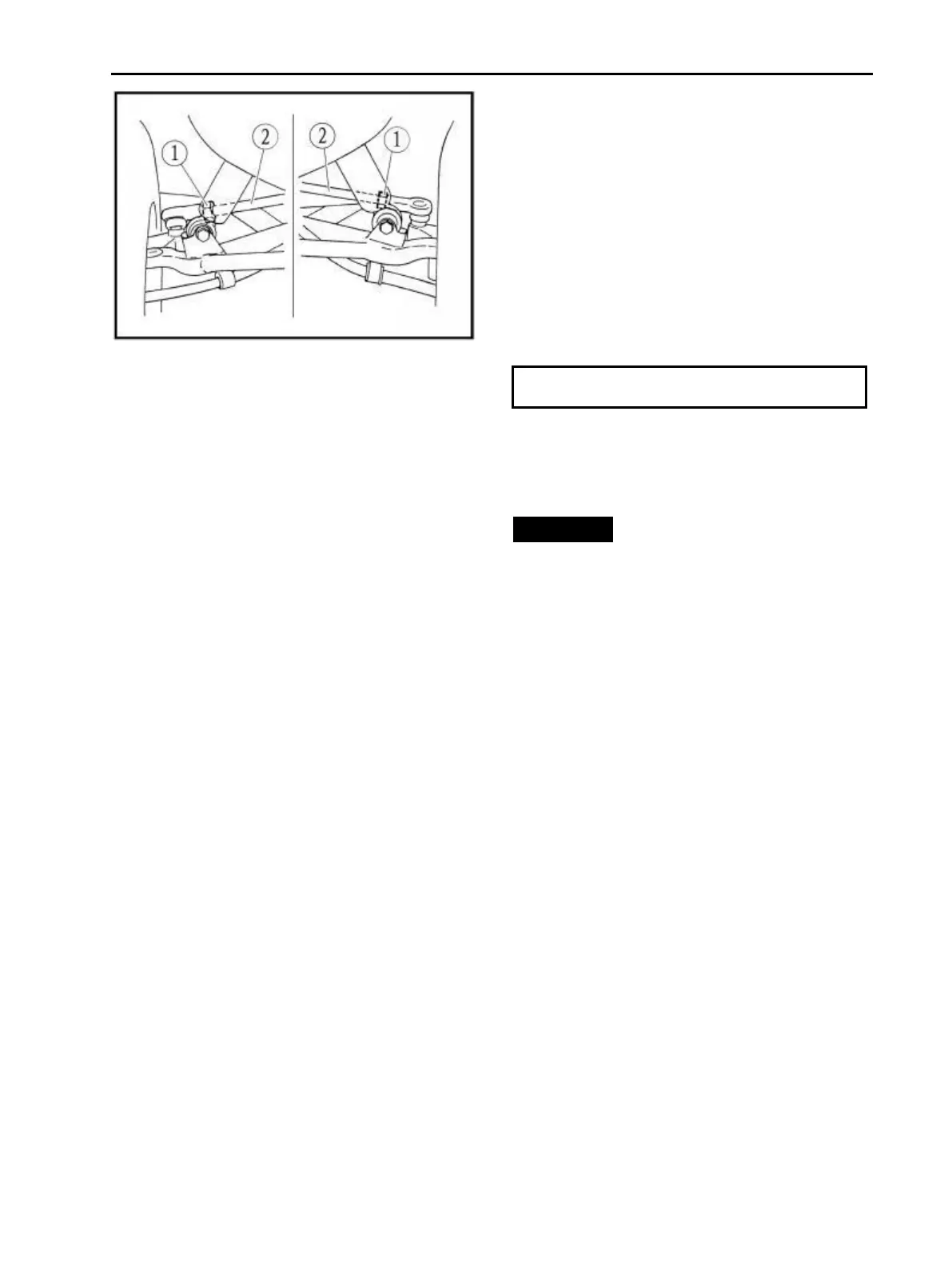

a. Mark both tie-rods ends. This reference
point will be needed during adjustment.
b. Loosen the locknut (tie-rod end) ① on each
tie-rod.
c. The same number of turns should be given
to both the right and left tie-rods ② until the
specified toe-in is obtained. This is to keep
the length of the rods the same.
