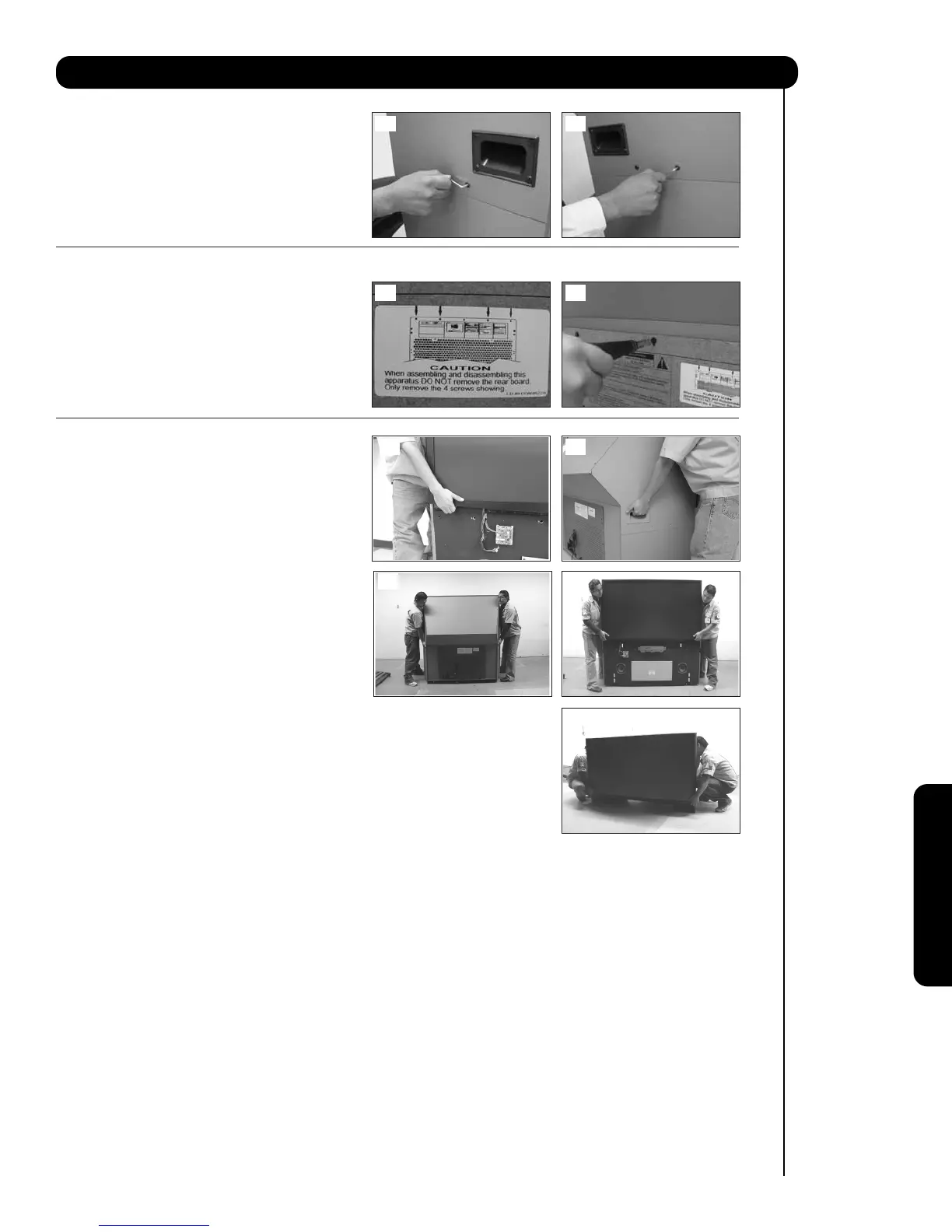

STEP 4
Remove the joint connector bolts from each side of
the TV set using the allen wrench that is provided
inside of the instruction bag, see (a) and (b).
STEP 5
Remove from the back side of the TV set only the
top 4 screws of the lower rear cover, see (b), as
shown by the arrows on the rear cabinet label,
see (a). Do not remove the rear cover board.
STEP 6
CAUTION: When the TV is separated, the top
portion weighs 112 lbs. This task should be done
by two persons to carry top portion when
separating this TV.
This assembly contains fragile parts, such as glass
and the viewing screen. Avoid any type of impact
that could cause breakage of these components.
Remove top portion by grabbing the bottom corner
of frame and the side of the TV, see (a)(b). Lift
upwards, see (c)(d), gently place the top portion on
the the floor, see (e).
(a) (b)
(a) (b)
