Hitachi 57F59A - Page 117

TABLE OF CONTENTS
DP65
116

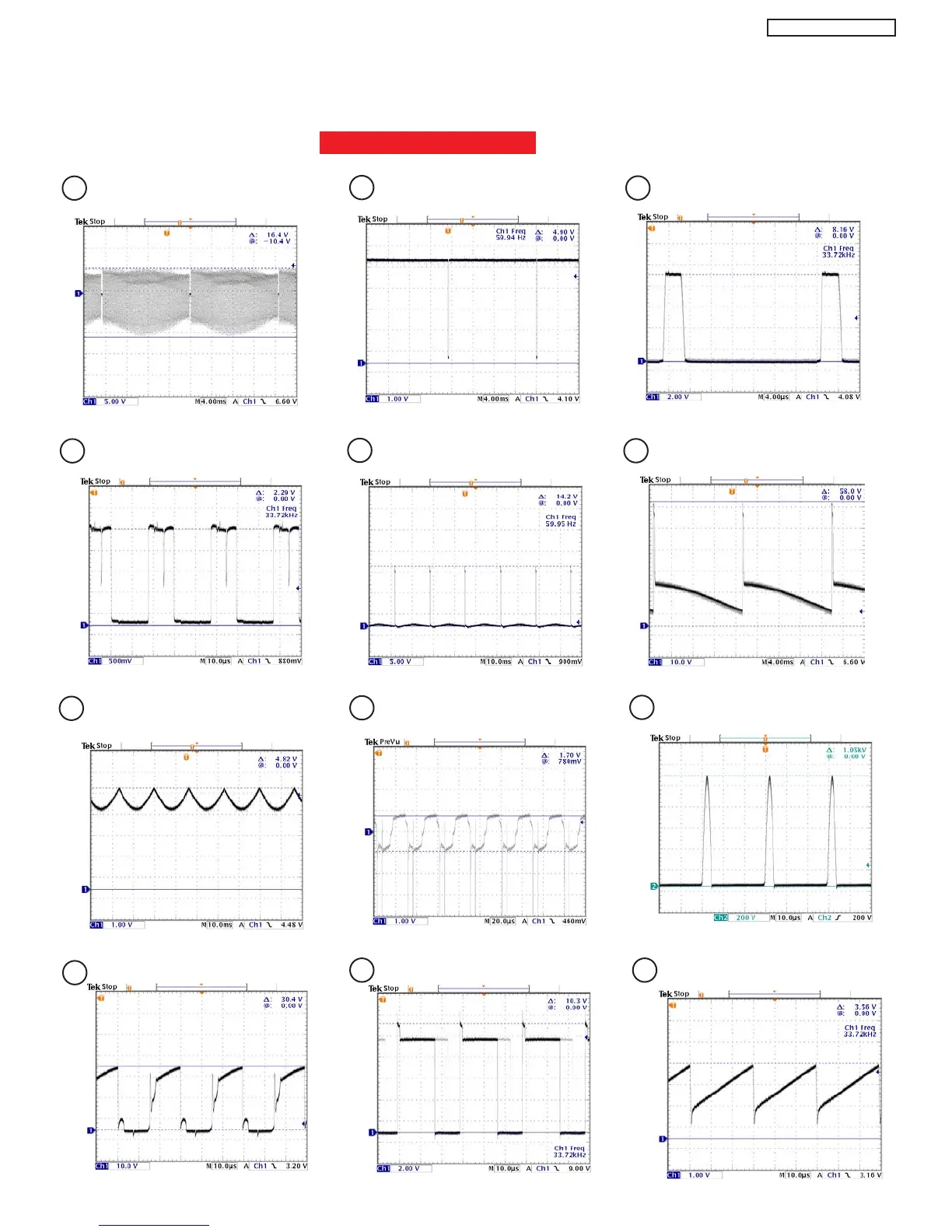

PCB Pin 6 BH CONV OUT PDT2 Pin 2 V DRIVE PDT2 Pin 4 H BLK
PDT2 Pin 6 H DRIVE PDT2 Pin 7 V BLK I601 Pin 1 V OUT
I701 Pin 7 SIDE PIN OUT
37
38
39
40
41
42
43
44 45
Q777 B H IN
Q777 C H OUT (USE 100 X PROBE)
47 IH01 Pin 1 HV DRIVE
46
Q709 C H DRIVE
48
IH01 Pin 4 RAMP GEN
Click on number to go to schematic
IMPORTANT NOTE: FOR HOT AREA USE AC CORD WITH FLOATING GROUND
