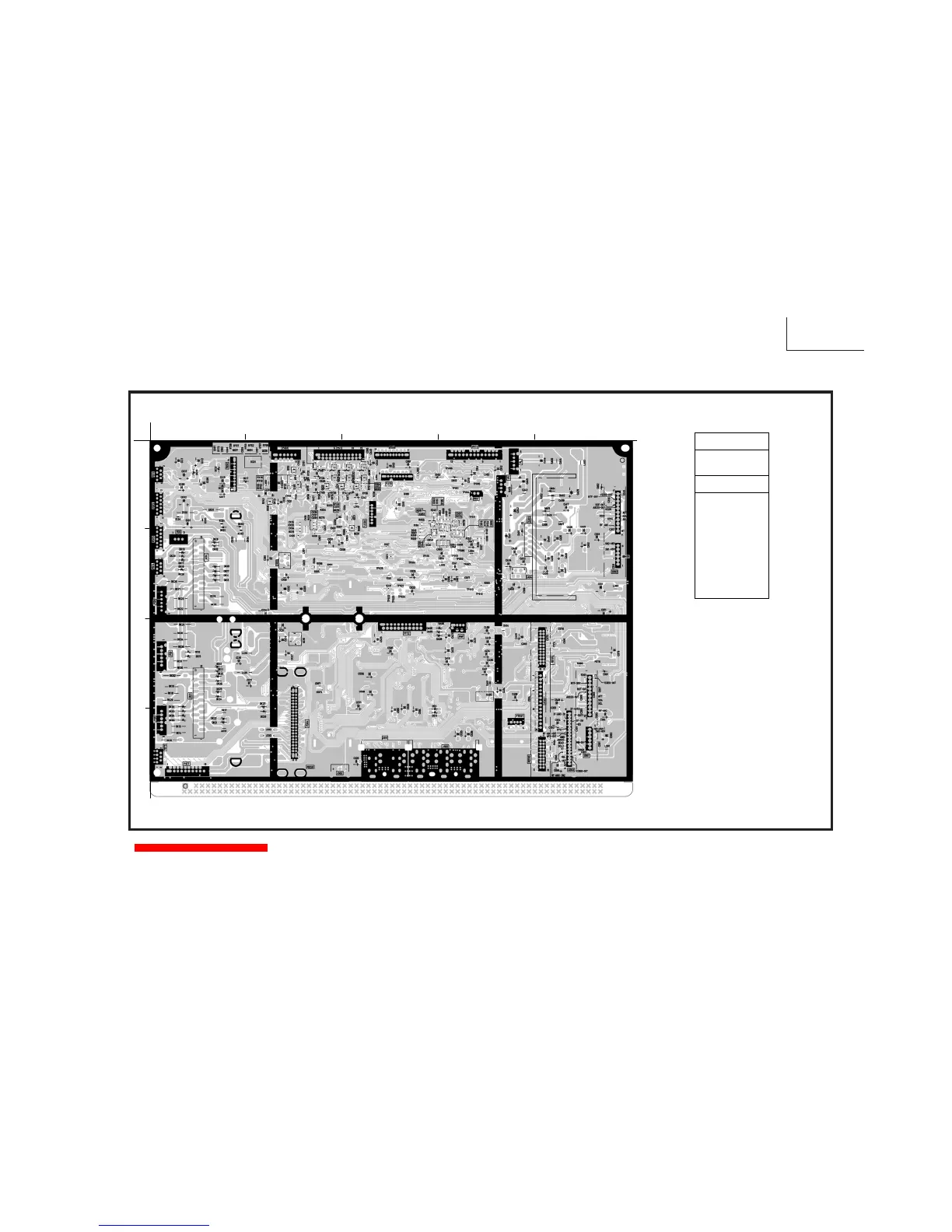

PRINTED CIRCUIT BOARDS
DP65 SIGNAL PWB (Solder side)
DP65
SEMICONDUCTOR LOCATION
(Solder
side)
BACK TO TABLE OF CONTENTS
144
A
B
C
D
1 2 3 4 5
DX07 A-2
DY01 A-2
QX13 A-2
QX20 A-3
QX25 A-2
QX26 A-2
QX27 A-2
QX29 A-2
QX30 A-3
QX31 A-3
QX33 A-3
QX34 A-3
QX35 A-3
DIODE
TRANSISTOR
