PRINTED CIRCUIT BOARDS

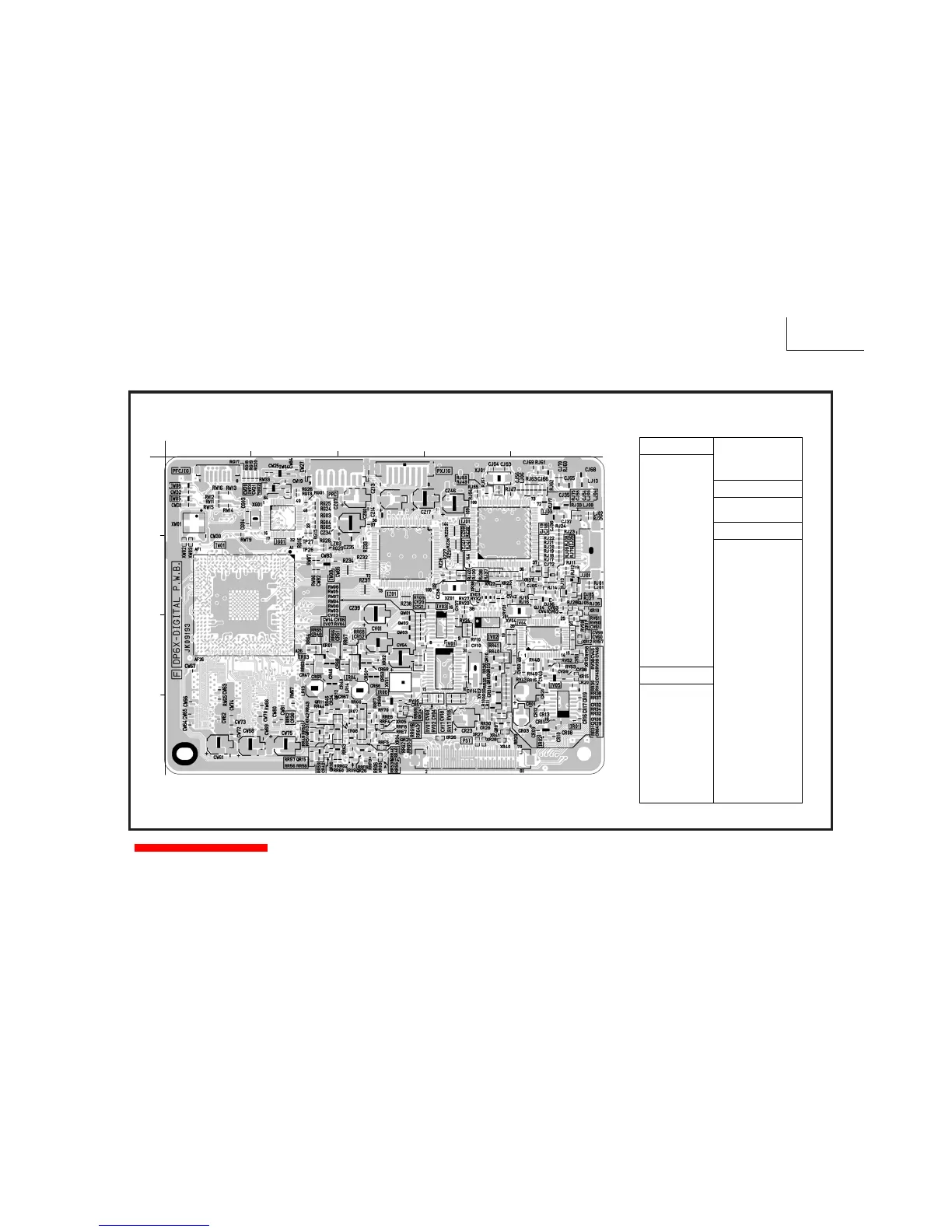

DP65 DIGITAL PWB (Component side)
145
A
B
C
D
1 2 3 4 5
DP65
SEMICONDUCTOR LOCATION
( Component side)
QR25 D-3
QR26 D-3
IG01 A-2 QW01 C-3
IJ01 A-4 QW02 C-3
IJ03 A-5 QW03 C-3
IJ05 B-5
IR01 D-5
IR02 D-5 DJ05 B-5
IR03 C-2 DJ06 B-5
IR04 C-3
IR06 D-3
IR07 D-3
IR08 D-3 XG01 A-2
IR09 D-3 XJ01 A-4
IV01 C-4 XR01 C-2
IV02 C-4 XR02 C-3
IV03 C-4 XR03 D-3
IV04 C-5 XR04 D-3
IV05 C-5 XR05 D-3
IW01 B-1 XR10 B-5
IW03 A-2 XR11 C-5
IW04 A-2 XR12 C-5
IW05 A-1 XR13 C-5
IW06 A-1 XR15 C-5
IW08 B-2 XR22 B-4
IZ01 B-3 XR23 B-4
XR24 D-3
XR26 D-4
XR27 D-4
QJ04 B-5 XR28 D-4
QJ05 B-5 XR37 B-5
QR07 D-4 XR38 B-4
QR08 C-4 XR40 D-4
QR09 C-4 XR41 D-4
QR10 C-4 XV01 C-3
QR11 D-2 XV02 C-4
QR12 D-2 XV03 B-4
QR13 D-2 XV04 B-5
QR14 D-2 XW01 A-1
QR15 D-2 XW02 B-1
QR16 D-2 XW03 B-1
QR24 D-3 XZ01 B-4
CRYSTAL & FILTER
DIODE
IC
TRANSISTOR
