PRINTED CIRCUIT BOARDS

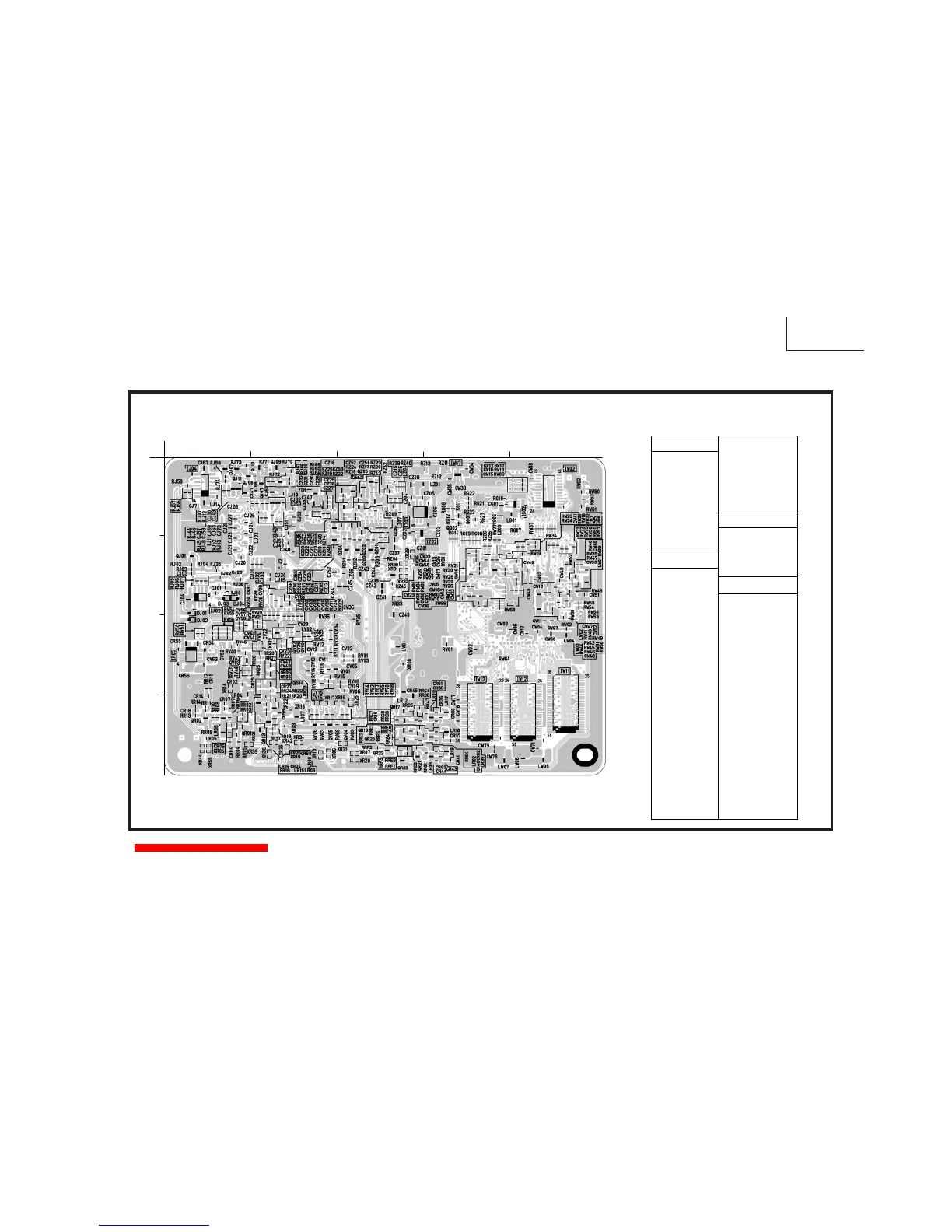

DP65 DIGITAL PWB (Solder side)
146
A
B
C
D
1 2 3 4 5
DP65
SEMICONDUCTOR LOCATION
(Solder side)
QW06 B-4
QW07 B-4
IG02 A-4 QZ01 B-3
IJ02 B-1 QZ02 B-3
IJ04 A-1 QZ03 B-3
IR05 C-1 QZ04 B-3
IV06 B-2 QZ05 A-3
IW02 A-5 QZ06 A-3
IW07 A-4 QZ07 A-3
IW11 D-5
IW12 D-5
IW13 D-4
IZ02 A-3 DJ01 B-1
IZ03 A-3 DJ02 C-1
DJ03 B-1
DJ04 B-1
DJ07 A-1
QG01 A-4
QG02 A-4
QJ01 B-1
QJ06 A-2 XR06 D-2
QJ07 A-2 XR07 D-3
QJ08 A-1 XR08 C-3
QJ09 A-2 XR09 D-2
QJ10
A-2
XR14
C-1
QJ11 A-1 XR16 D-2
QR01 D-1 XR17 D-2
QR02 D-1 XR18 D-2
QR03 D-2 XR19 D-2
QR04 C-2 XR20 D-3
QR05 C-2 XR21 D-3
QR06 C-2 XR25 D-3
QR17 D-3 XR29 B-3
QR18 D-3 XR30 B-3
QR19 D-3 XR31 B-3
QR20 D-3 XR32 B-3
QR21 D-3 XR33 B-3
QR22 D-3 XR34 D-2
QR23 D-3 XR35 D-2
QV01 C-2 XR36 D-2
QV02 C-2 XR39 D-1
QV03 C-1 XR42 D-2
QV04 D-3 XR43 A-2
QV05 D-2 XR44 D-1
QV06 D-2 XR55 D-1
TRANSISTOR
IC
DIODE
CRYSTAL & FILTER
