PRINTED CIRCUIT BOARDS

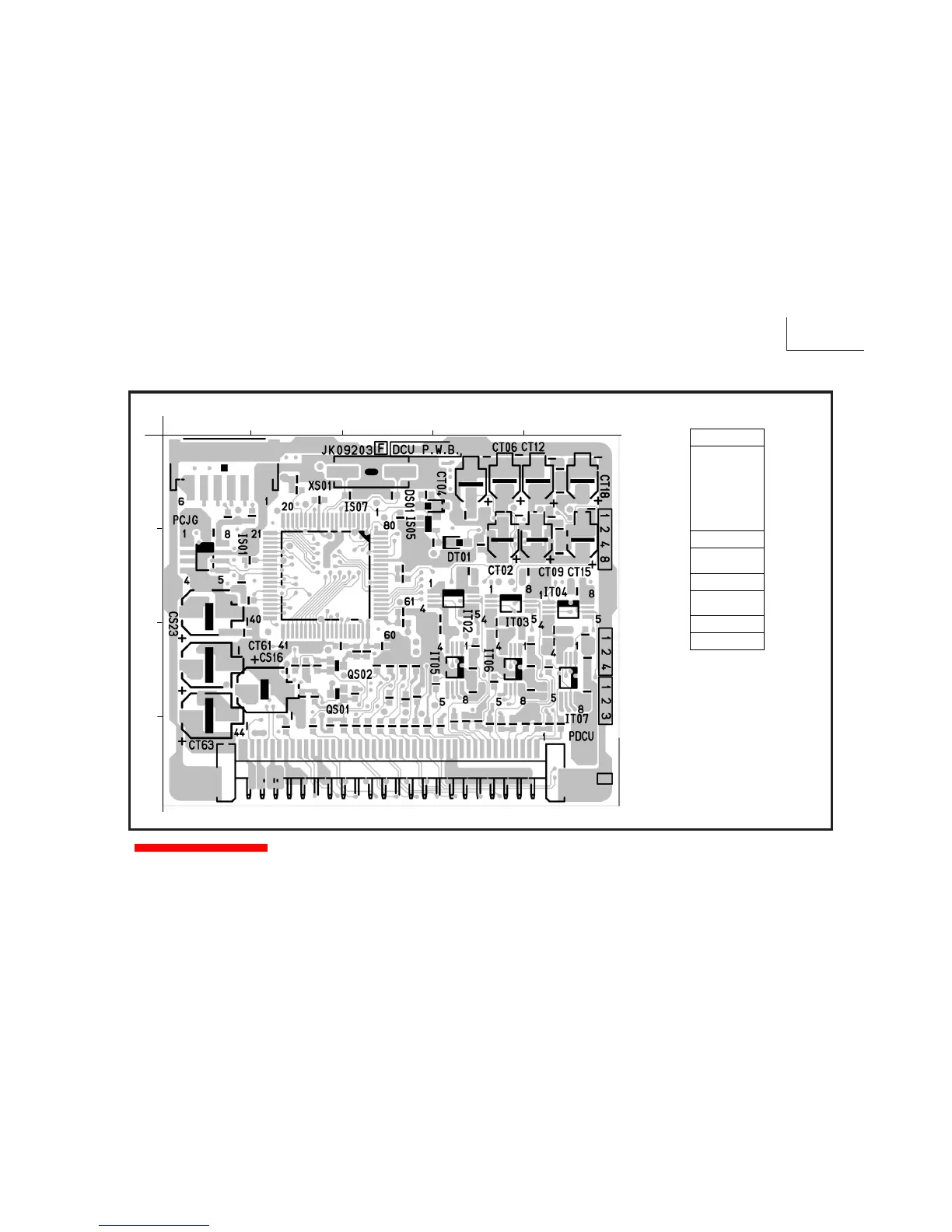

DP65 DCU PWB (Component side)
SEMICONDUCTOR LOCATION
(Component side)
DP65
147
A
B
C
D
1 2 3 4 5
IS01 B-1
IS05 A-3
IS07 B-2
IT02 B-4
IT03 B-4
IT04 B-5
IT05 C-4
IT06 C-4
IT07 C-5
QS01 C-2
QS02 C-2
DS01 A-3
DT01 B-4
XS01 A-3
CRYSTAL & FILTER
DIODE
IC
TRANSISTOR
