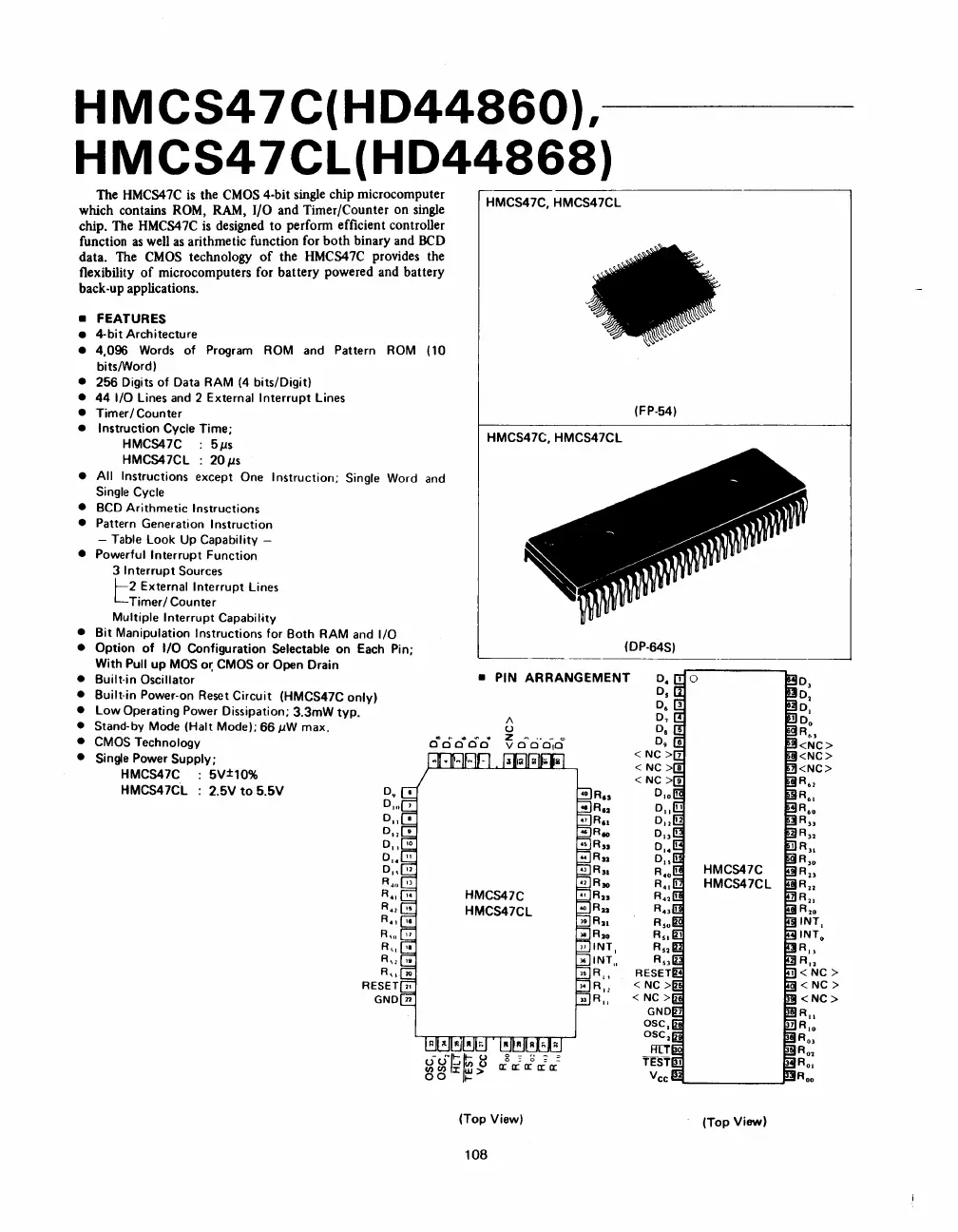

HMCS4 7C(HD44860) ,----
HMCS47CL(HD44868)
The HMCS47C is the CMOS 4·bit single chip microcomputer
which contains ROM, RAM, I/O and Timer/Counter on single
chip. The HMCS47C is designed to perform efficient controller
function
as well as arithmetic function for both binary and BCD
data. The CMOS technology of the HMCS47C provides the
flexibility of microcomputers for battery powered and battery
back·up applications.
• FEATURES
• 4-bit Architecture
• 4,096 Words of Program ROM and Pattern ROM (10
bitslWord)
• 256 Digits of Data RAM (4 bits/Digit)
• 44 I/O Lines and 2 External Interrupt Lines
• Timer/Counter
• Instruction Cycle Time;
HMCS47C :
5Jls
HMCS47CL : 20Jls
•
All Instructions except One Instruction; Single Word and
Single Cycle
• BCD Arithmetic Instructions
•
Pattern Generation Instruction
- Table Look Up Capability -
• Powerful Interrupt Function
3
Interrupt Sources
~2 External Interrupt Lines
LTimer/ Counter
Multiple Interrupt Capability
•
Bit Manipulation Instructions for Both RAM and I/O
• Option of I/O Configuration Selectable on Each Pin;
With
Pull up MOS o~ CMOS or Open Drain
HMCS47C, HMCS47CL
(FP-54)
HMCS47C, HMCS47CL
(DP·64S)
----
• Built·in Oscillator
• PIN ARRANGEMENT
O. ~ 0 0,
• Built·in Power·on Reset Circuit (HMCS47C only)
• Low Operating Power Dissipation; 3.3mW typo
•
Stand-by Mode (Halt Mode); 66 JlW max.
• CMOS Technology
• Single
Power Supply;
HMCS47C 5V±10%
HMCS47CL : 2.5V
to 5.5V
o~oo~o~o'
1\
U
Z ~ .. - 0
v 0 0010
HMCS47C
HMCS47CL
(Top View)
108
0, ~ 0,
O. ~ 0,
0, ~ 1 D.
O. ~ A.,
O. 8 <NC>
: ~~ ~i ~~g~
< NC >~ A.,
O,.E A.,
0,," A.
o
0,,'2 A"
0" 1 An
0,.' 1 All
0" 1 A,.
A •• ' HMCS47C A"
A.,' HMCS47CL A12
A.,1 All
A.,1 A,.
As. INT,
A" 1 INT.
An A"
A" All
RESET , < NC >
< NC > < NC >
< NC > <NC>
GNO 7 A"
asc, 7 A,.
asc, A.,
HIT A.,
TEST~ A.,
Vee -i2 _______ --'r- A o.
(Top View)
