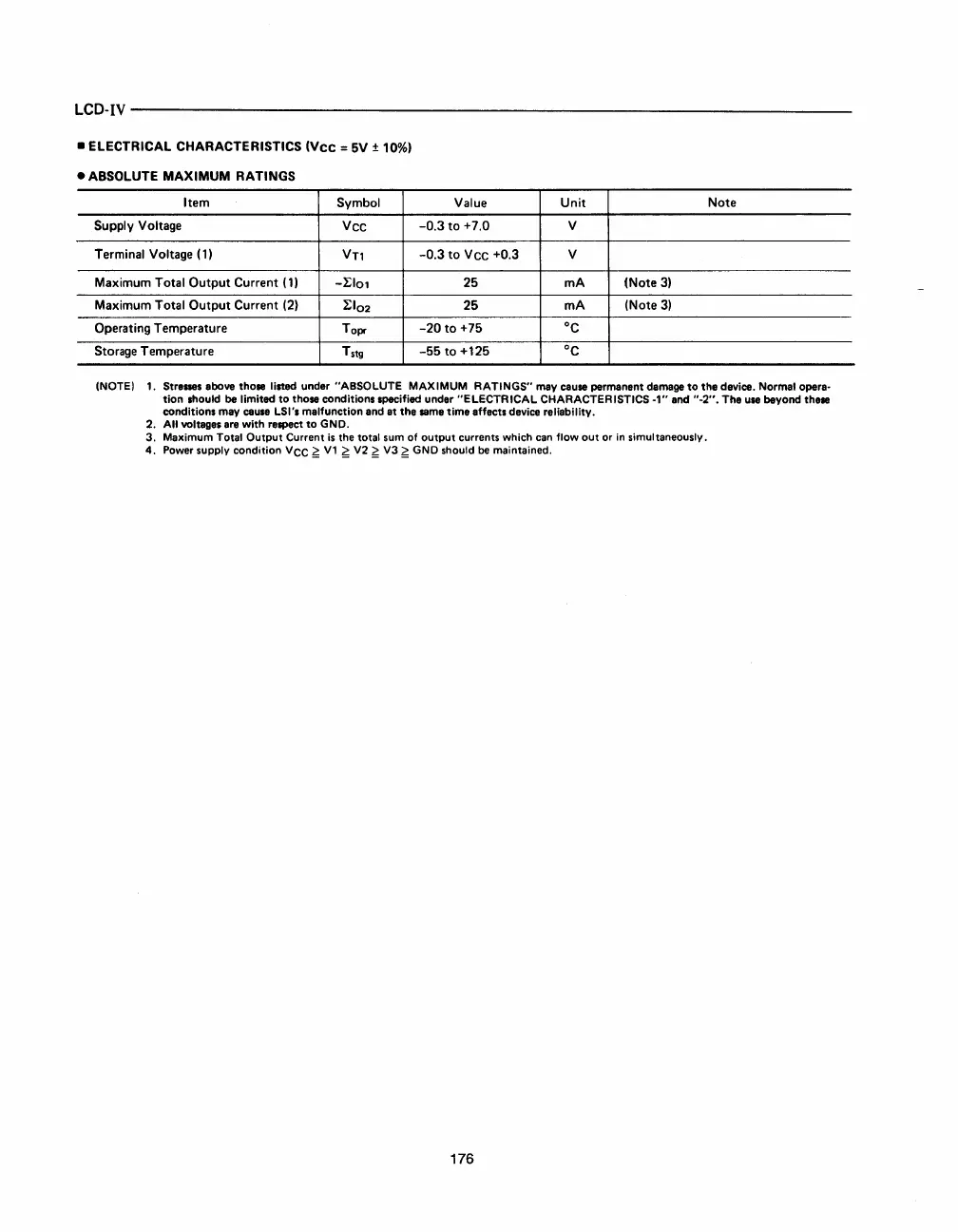

LCD-IV
--------------------------------
•
ELECTRICAL
CHARACTERISTICS
(VCC =
5V
±
10%)
•
ABSOLUTE
MAXIMUM
RATINGS
Item
Symbol
Value
Unit
Note
Supply
Voltage
Vcc
-0.3
to
+7.0
V
Terminal
Voltage
(1)
Vn
-0.3
to
V
cc
+0.3
V
Maximum
Total
Output
Current
(1)
-1:101
25
mA
(Note
3)
Maximum
Total
Output
Current
(2)
1:102
25
mA
(Note
3)
Operating
Temperature
Topr
-20
to
+75
°c
Storage
Temperature
Tstg
-55
to
+125
°c
(NOTE)
,.
Stresses above those listed under "ABSOLUTE
MAXIMUM
RATINGS" may cause permanent damage
to
the
device. Normal opera·
tion
should be limited to those conditions specified under "ELECTRICAL CHARACTERISTICS
.,"
and
"·2".
The use beyond these
conditions may cause
LSI's malfunction and at the seme time affects device reliability.
2.
All
wltages are with respect
to
GND.
3. Maximum
Total Output Current
is
the total sum of output currents which can flow
out
or
in
simultaneously.
4.
Power supply condition
VCC
~
V,
~
V2
~
V3
~
GND
should be maintained.
