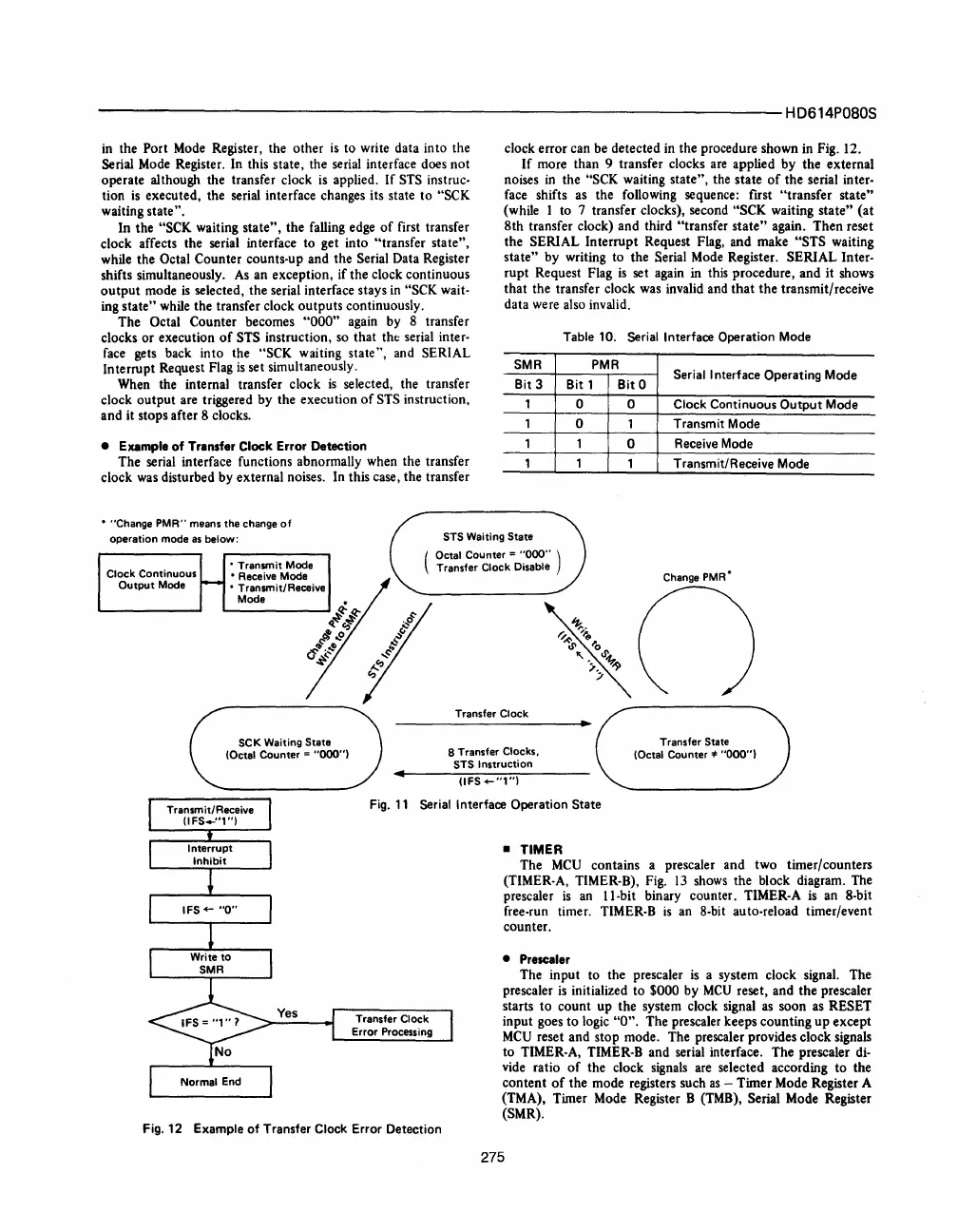

-------------------------------------------------------------HD614P080S
in
the Port Mode Register, the other
is
to write data into the
Serial Mode Register. In this state, the serial interface does not
operate although the transfer clock
is
applied.
If
STS instruc-
tion
is
executed, the serial interface changes its state
to
"SCK
waiting state".
In
the "SCK waiting
state",
the falling edge
of
first transfer
clock affects the serial interface to get into
"transfer state",
while the Octal Counter counts-up and the Serial Data Register
shifts simultaneously.
As
an exception, if the clock continuous
output
mode
is
selected,
the
serial interface stays in "SCK wait-
ing
state"
while the transfer clock
outputs
continuously.
The
Octal Counter becomes
"000"
again by 8 transfer
clocks or execution
of
STS instruction, so that tht: serial inter-
face gets back into the
"SCK waiting state", and SERIAL
Interrupt Request Flag
is
set simultaneously.
When the internal transfer clock
is
selected, the transfer
clock
output
are triggered by the execution
of
STS instruction,
and
it stops after 8 clocks.
• Example
of
Transfer Clock Error Detection
The serial interface functions abnormally when the transfer
clock was disturbed by external noises. In this case, the transfer
clock error can be detected in the procedure shown in Fig. 12.
If
more than 9 transfer clocks are applied by
the
external
noises in the
"SCK waiting state", the state
of
the
serial inter-
face shifts as the following sequence: first
"transfer state"
(while 1 to 7 transfer clocks), second "SCK waiting
state"
(at
8th
transfer clock) and third "transfer
state"
again. Then reset
the
SERIAL Interrupt Request Flag, and make "STS waiting
state" by writing to the Serial Mode Register. SERIAL Inter-
rupt Request Flag
is
set again in this procedure, and it shows
that
the transfer clock was invalid and
that
the
transmit/receive
data were also invalid.
Table 10. Serial
Interface Operation Mode
SMR
PMR
Bit 3
Bit 1 Bit
0
Serial I nterface Operating Mode
1
0 0
Clock Continuous
Output
Mode
1
0
1
Transmit Mode
1
1
0
Receive Mode
1
1
1 Transmit/Receive Mode
• "Change
PMR"
means the change
of
operation mode
as
below:
STS Waiting State
Clock Continuous
Output
Mode
l""-
• Transmit Mode
• Receive Mode
• Transmit/Receive
Mode
SCK Waiting State
(Octal Counter =
"000")
(
Octal
Counter =
"000"
)
Transfer Clock Disablil
Change
PMR'
Transfer Clock
8 Transfer Clocks.
STS
Instruction
(lFS~"1")
..
n
Transfer State
(Octal
Counter';
"000")
Fig.
11
Serial Interface Operation State
Transfer Clock
Error Processing
• TIMER
The
MCV
contains a prescaler and two timer/counters
(TIMER-A, TIMER-B), Fig.
13
shows the block diagram. The
prescaler
is
an
II-bit
binary counter. TIMER-A
is
an 8-bit
free-run timer. TIMER-B
is
an 8-bit auto-reload timer/event
counter .
• Prescaler
The input to the prescaler
is
a system clock signal. The
prescaler
is
initialized
to
SOOO
by
MCU
reset, and
the
prescaler
starts
to
count up the system clock signal
as
soon
as
RESET
input goes
to
logiC
"0".
The prescaler keeps counting
up
except
MCV
reset and stop mode. The prescaler provides clock signals
to
TIMER-A, TIMER-B and serial interface. The prescaler di-
vide ratio
of
the clock signals are selected according
to
the
content
of
the mode registers such
as
- Timer Mode Register A
(TMA), Timer Mode Register B (TMB),
Serial Mode Register
(SMR).
Fig. 12 Example of Transfer Clock Error Detection
275
