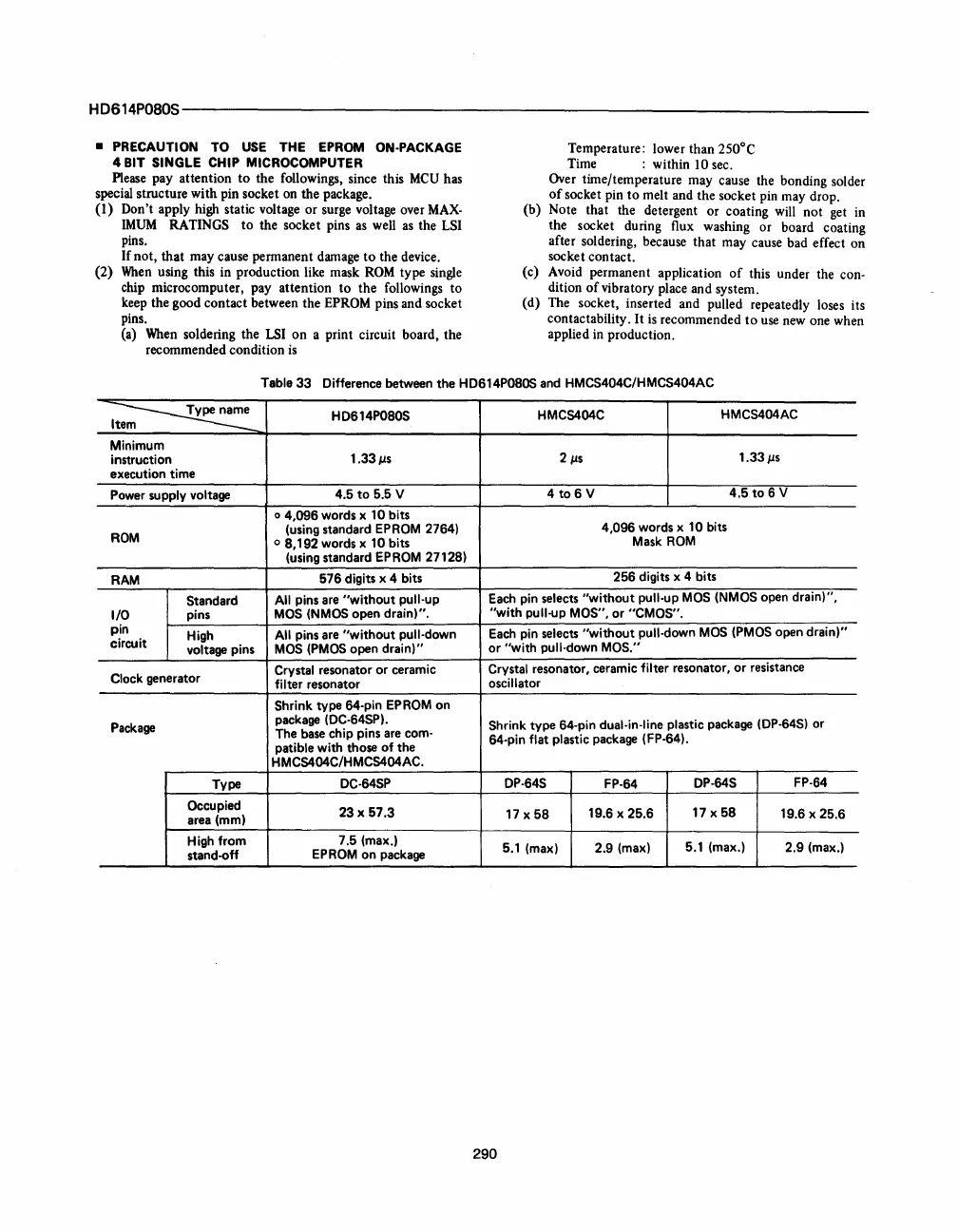

HD614P080S-------------------------------------------------------------
• PRECAUTION TO
USE
THE
EPROM
ON-PACKAGE
4 BIT SINGLE CHIP MICROCOMPUTER
Please pay attention
to
the followings, since this
MCU
has
special structure with pin socket on the package.
(1)
Don't apply high static voltage or surge voltage over
MAX-
IMUM
RATINGS
to
the socket pins
as
well
as
the LSI
pins.
If
not,
that
may cause permanent damage
to
the device.
(2)
When
using this in production like mask
ROM
type single
chip microcomputer, pay attention
to
the followings
to
keep the good contact between the EPROM pins and socket
pins.
(a) When soldering the LSI on a print circuit board, the
recommended condition
is
Temperature: lower than 250°C
Time : within 10 sec.
Over time/temperature may cause the bonding solder
of
socket pin
to
melt and the socket pin may drop.
(b) Note that the detergent or coating will not get in
the socket during flux washing or board coating
after soldering, because that may cause bad effect on
socket contact.
(c) Avoid permanent application
of
this under the con-
dition
of
Vibratory place and system.
(d) The socket, inserted and pulled repeatedly loses its
contactability.
It
is
recommended
to
use
new one when
applied
in
production.
Table
33
Difference between the HD614P08OS and HMCS404C/HMCS404AC
~
Item
HD614P080S
HMCS404C
HMCS404AC
Minimum
instruction
1.33p.s
2p.s
1.33p.s
execution time
Power supply voltage
4.5
to
5.5 V
4
t06
V
4.5
to
6 V
04,096
words x 10 bits
4,096 words x 10 bits
ROM
(using standard EPROM 2764)
08,192
words x 10 bits
Mask
ROM
(using standard EPROM 27128)
RAM
576 digits x 4 bits
256 digits x 4 bits
Standard
All
pins
are
"without
pull-up
Each
pin selects
"without
pull-up
MOS
(NMOS open
drain)",
I/O
pins
MOS (NMOS open
drain)".
"with
pull-up MOS",
or
"CMOS".
pin
High
All
pins
are
"without
pull-down
Each
pin
selects
"without
pull-down
MOS
(PMOS open
drain)"
circuit
voltage pins
MOS
(PMOS
open
drain)"
or
"with
pull-down MOS."
Clock generator
Crystal resonator
or
ceramic
Crystal resonator, ceramic
filter
resonator,
or
resistance
filter
resonator
oscillator
Shrink type 64-pin
EPROM on
Package
package
(DC-64SP).
Shrink
type 64-pin dual-in-line plastic
package
(DP-64S)
or
The
base
chip pins
are
com-
64-pin
flat
plastic
package
(FP-64).
patible
with
those
of
the
HMCS404C/HMCS404AC.
Type
DC-64SP
DP-64S
FP-64
DP-64S
FP-64
Occupied
23x
57.3
17
x
58
19.6 x 25.6
17 x 58
19.6 x 25.6
area
(mm)
High
from
7.5 (max.)
5.1
(max) 2.9 (max)
5.1
(max.)
2.9 (max.)
stand-off
EPROM on
package
290
