--------------------------------------------------------------------------HMCS404CL
• REGISTER
AND
FLAG
The
MCU
has
nine
registers
and
two
flags
for the
CPU
opera-
tions.
They
are
illustrated
in
Fig.
5
and
described
in
the
follow-
ing
paragraphs.
•
Accumulator
(A),
B Register (B)
Accumulator
and
B
Register
are
4-bit
registers
used
to
hold
the results of Arithmetic
Logic
Unit
(ALU),
and
to transfer data
to/from
memories,
I/O and other registers.
• W Register (W), X Register
(X),
V Register
(V)
W
Register
is
2-bit, and X
and
Y
Register
are
4-bit
registers
used
for
indirect
addressing
of
RAM.
Y register
is
also
used
for
D-port addressing.
• SPX Register (SPX),
Spy
Register (SPY)
SPX
and
SPY
Register
are
4-bit
registers
used
to
assist
X
and
Y Register respectively.
• Carry (CA)
Carry
(CA)
stores the
overflow
of
ALU
generated
by
the
arithmetic operation.
It
is
also
affected
by
SEC,
REC,
ROTL
and
ROTR
instructions.
During
interrupt
servicing,
Carry
is
pushed onto the stack
and restored back from the stack by
RTNI
instruction. (It's not
affected
by
RTN
instruction.)
• Status (ST)
Status (ST) holds the
ALU
overflow,
ALU
non-zero and the
results of bit test instruction
for
the arithmetic or compare
in-
struction.
It
is
used
for
a branch condition
of
BR,
BRL,
CAL
or
CALL
instructions.
The
value
of the Status
remains
unchanged
until the next arithmetic, compare or bit test instruction
is
ex-
ecuted. Status
becomes
"1"
after the
BR,
BRL,
CAL
or
CALL
instruction
has
been executed (irrespective of
its
execution/
skip).
During
the interrupt
servicing,
Status
is
pushed
onto the
'--
____
--'I
B
Atgllll'
I 0
~WRtglll.r
L--
____
--J
Y
Atg.ltlr
'--
____
--'
SPX
Regilt"

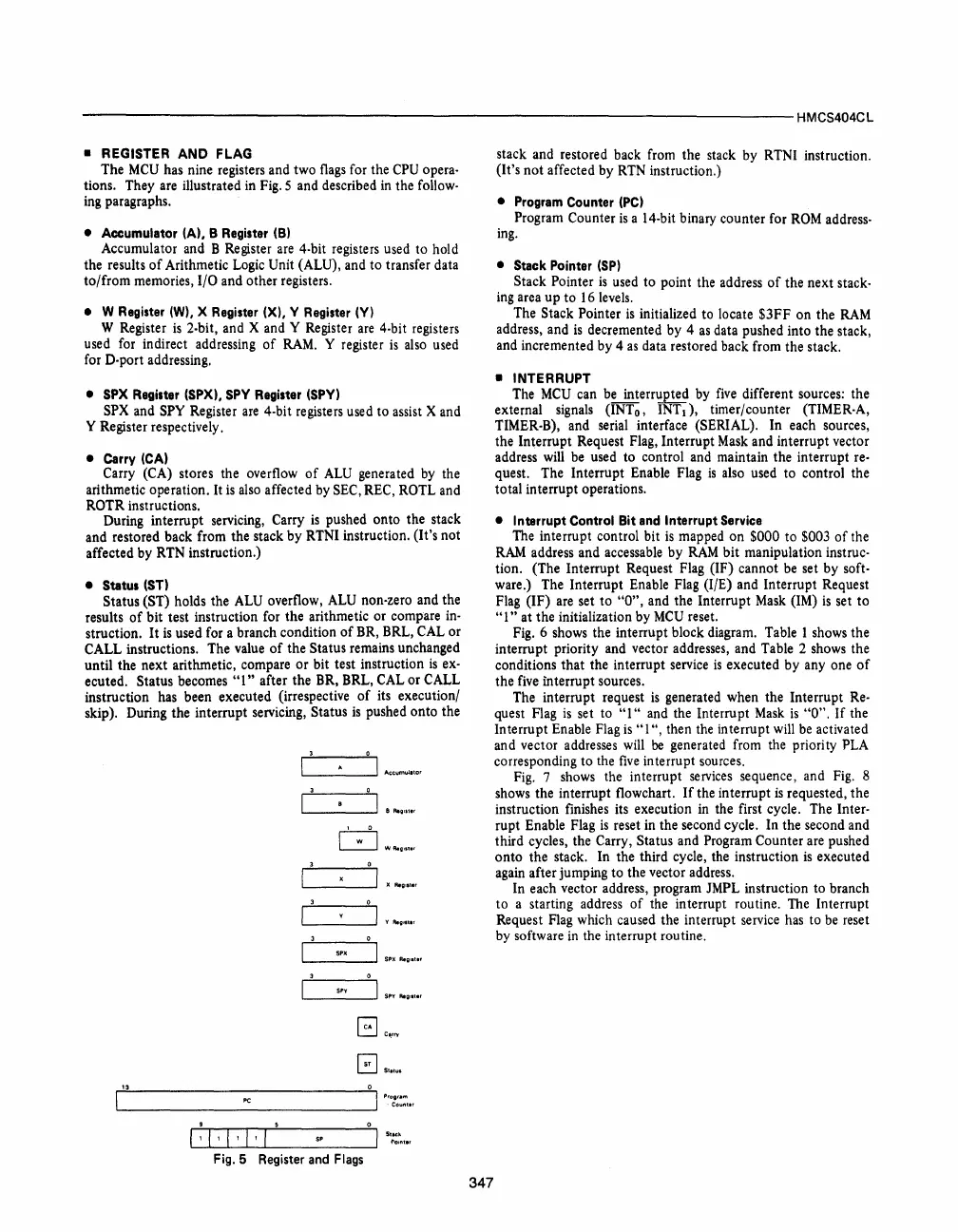

Fig.5
Register and Flags
347
stack
and
restored
back
from
the
stack
by
RTNI
instruction.
(It's not affected
by
RTN
instruction.)
• Program Counter
(PC)
Program
Counter
is
a
14-bit
binary counter for
ROM
address-
ing.
• Stack Pointer
(SP)
Stack Pointer
is
used
to point the
address
of
the next
stack-
ing
area
up
to
16
levels.
The
Stack Pointer
is
initialized
to
locate $3FF
on
the
RAM
address,
and
is
decremented
by
4
as
data pushed into the stack,
and
incremented by 4
as
data restored back
from
the stack.
•
INTERRUPT
The
MCU
can
be
interrupted
by
five
different
sources:
the
external
signals
(INTo,
INT
d, timer/counter
(TIMER·A,
TIMER-B),
and
serial
interface (SERIAL).
In
each sources,
the Interrupt Request
Flag,
Interrupt
Mask
and
interrupt vector
address
will
be
used
to
control
and
maintain the interrupt
re-
quest.
The
Interrupt
Enable
Flag
is
also
used
to control the
total interrupt operations.
•
Interrupt
Control
Bit
and
Interrupt
Service
The
interrupt control bit
is
mapped
on $000 to
$003
of
the
RAM
address and
accessable
by
RAM
bit manipulation instruc·
tion. (The Interrupt Request
Flag
(IF) cannot
be
set
by soft-
ware.)
The
Interrupt
Enable
Flag
(l/E) and Interrupt Request
Flag
(IF)
are
set to "0",
and
the Interrupt
Mask
(1M)
is
set to
"1"
at the initialization
by
MCU
reset.
Fig.
6
shows
the interrupt block
diagram.
Table
1
shows
the
interrupt priority
and
vector
addresses,
and
Table
2
shows
the
conditions that the interrupt
service
is
executed by anyone
of
the
five
interrupt sources.
The
interrupt request
is
generated when the Interrupt
Re-
quest
Flag
is
set
to
"1"
and
the
Interrupt
Mask
is
"0". If
the
Interrupt
Enable
Flag
is
"1", then
the
interrupt
will
be
activated
and
vector
addresses
will
be
generated
from
the
priority
PLA
corresponding to
the
five
interrupt
sources.
Fig.
7
shows
the
interrupt
services
sequence,
and
Fig.
8
shows
the interrupt flowchart.
If
the
interrupt
is
requested, the
instruction
finishes
its
execution
in
the first cycle.
The
Inter-
rupt Enable
Flag
is
reset
in
the
second
cycle.
In
the second
and
third cycles, the Carry, Status and
Program
Counter
are
pushed
onto the stack.
In
the third cycle,
the
instruction
is
executed
again
after jumping to the vector
address.
In
each vector address, program
JMPL
instruction to branch
to a starting
address
of
the
interrupt routine.
The
Interrupt
Request
Flag
which
caused
the interrupt
service
has
to
be
reset
by
software
in
the
interrupt routine.
