HMCS404CL--------------------------------------------------------------------------
i-=--'-'-~_~
TCA(8bit)
TIMER COUNTER A
TIMER
MODE
REGISTER A
INTERRUPT
REQUEST FLAG
OF
TIMER-A

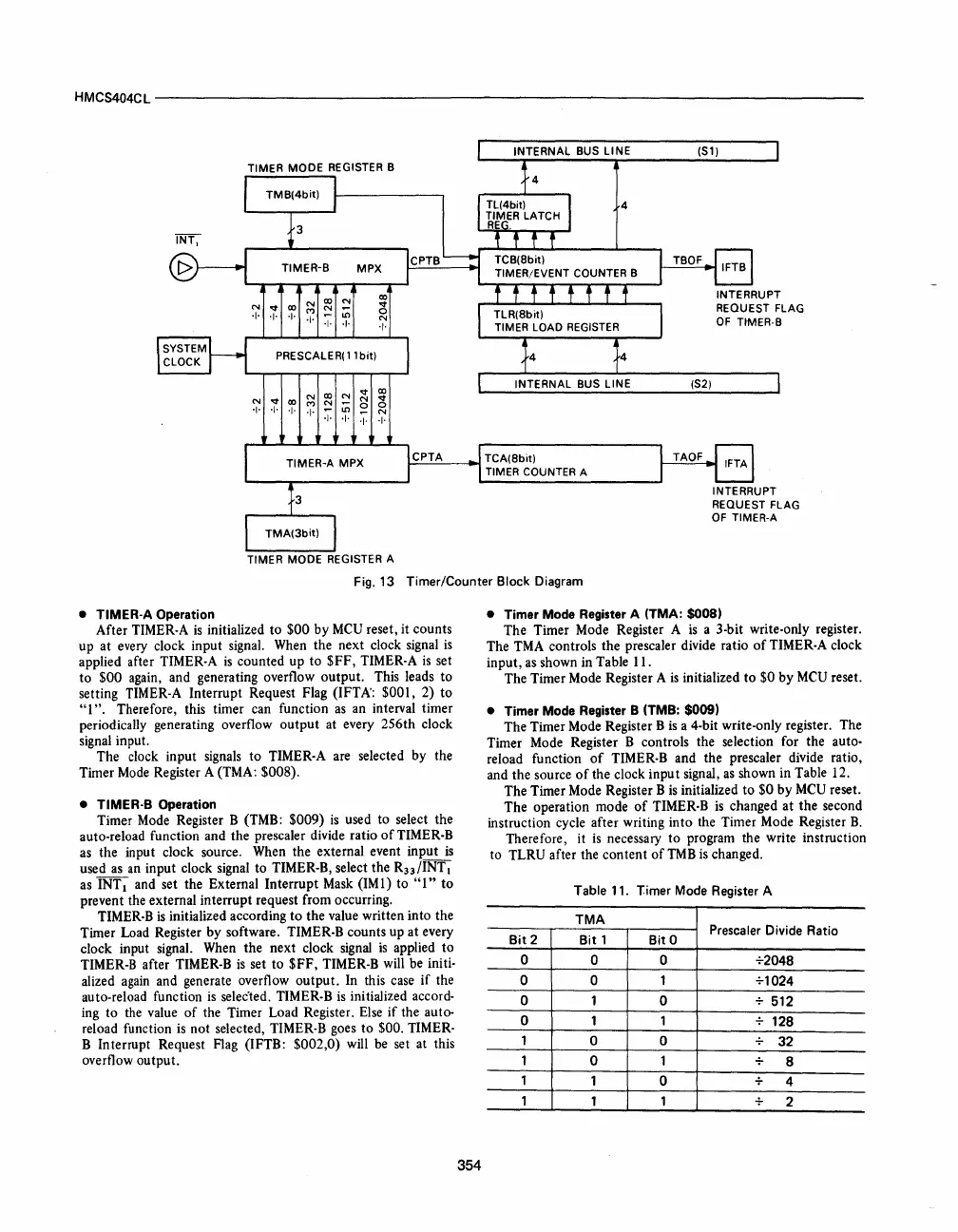

Fig. 13 Timer/Counter Block Diagram
• TIMER·A Operation
After TIMER·A
is
initialized to $00 by
MeV
reset, it counts
up at every clock input signal. When the next clock signal
is
applied after TIMER·A
is
counted up to $FF, TIMER·A
is
set
to
$00
again, and generating overflow output. This leads to
setting
TIMER·A Interrupt Request Flag (1FT
A:
$001, 2)
to
"I".
Therefore, this timer can function
as
an interval timer
periodically generating overflow
output
at every 256th clock
signal input.
The clock input signals to
TIMER·A are selected by the
Timer
Mode
Register A (TMA: $008).
• TIMER·B Operation
Timer Mode Register B (TMB: $009)
is
used to select the
auto·reload function and the prescaler divide ratio
of
TIMER·B
as the input clock source. When the external event input
is
used as
an
input clock signal to TIMER·B, select the
R33
lINT
1
as INTI and set the External Interrupt
Mask
(1M
I)
to
"1"
to
prevent the external interrupt request from occurring.
TIMER·B
is
initialized according
to
the value written into the
Timer Load Register by software.
TIMER·B counts up at every
clock input signal. When the next clock signal
is
applied to
TIMER-8 after TIMER-B
is
set
to
$FF,
TIMER-B will be initi-
alized
again
and generate overflow output. In this case
if
the
auto·reload function
is
selec'ted. TIMER-B
is
initialized accord·
ing to the value
of
the Timer Load Register. Else
if
the auto·
reload function
is
not selected, TIMER·B goes to $00. TIMER·
B Interrupt Request Flag (IFTB: $002,0) will
be
set at this
overflow output.
354
• Timer Mode Register A (TMA: $008)
The Timer Mode Register A
is
a 3·bit write-only register.
The
TMA
controls the prescaler divide ratio
of
TIMER·A clock
input,
as
shown in Table
II.
The Timer Mode Register A
is
initialized to $0 by
MeV
reset.
• Timer Mode Register B (TMB: $009)
The Timer Mode Register B
is
a 4·bit write-only register. The
Timer Mode Register B controls the selection for the
auto-
reload function
of
TIMER·B and the prescaler divide ratio,
and the source
of
the clock input signal,
as
shown in Table 12.
The Timer Mode Register B
is
initialized to $0 by
MeV
reset.
The operation mode
of
TIMER·B
is
changed at the second
instruction cycle after writing into the Timer Mode Register
B.
Therefore,
it
is
necessary to program the write instruction
to
TLRV after the content
of
TMB
is
changed.
Table 11. Timer Mode Register A
TMA
Bit
2
Bit
1
Bit
0
Prescaler
Divide Ratio
0
0 0
+2048
0 0
1
+1024
0
1
0
512
0 1 1
128
1
0 0
32
1
0 1
8
1
1
0
4
1
1 1
2
