--- 37 ---

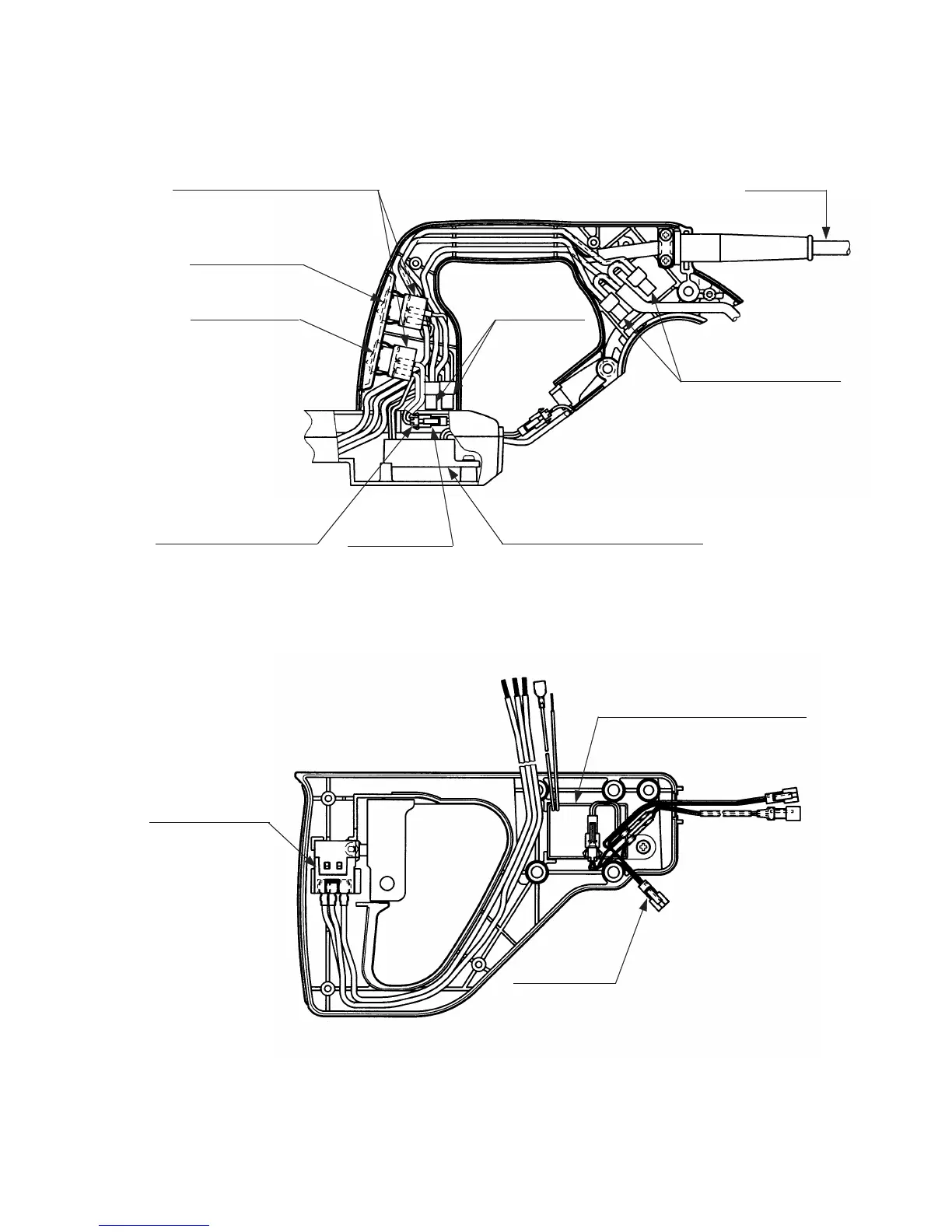

Wiring diagram (C 12LDH)
Fig. 50
Fig. 51
Connect the connectors
of Switch (B) [217] and
Cord (B) [218].
Wind tetron tape 1.5 or 2 turns.
Cord (B) [218]
Switch (B) [217]
Switch (A) [216]
Connector 50092 [214]
Cord (B) [218] Switching Power Supply [220]
Connector
50092 [214]
Switch
(3P Faston Type)
[226]
Switching Power Supply [220]
Cord [201]
