English
39
(3) Remove the bolt and washer (D)
(4) Lift the lower guard and mount the saw blade.
WARNING: When mounting the saw blade, confirm that the rotation indicator
mark on the saw blade and the rotation direction of the spindbe
cover (see Fig. 1) are properly matched.
(5) Thoroughly clean washer (B) and the 10 mm bolt, and install them onto the saw
blade spindle.
(6) Press in the spindle lock and tighten the 10 mm bolt by turning it to the left by 17
mm box wrench (Standard accessorie) as indicated in Fig. 52-c.
CAUTION: *A dust guide is installed inside behind the hinge.
When removing or installing the saw blade, do not make contact
with the dust guide. Contact may break or chip saw blade tips.
*Confirm that the spindle lock has returned to the retract position
after installing or removing the saw blade.
*Tighten the 10 mm bolt so it does not come loose during operation.
Confirm the 10 mm bolt has been properly tightened before the
power tool is started.
2. Dismounting the saw blade
Dismount the saw blade by reversing the mounting procedures described in paragraph
1 above.
The saw blade can easily be removed after lifting the lower guard.

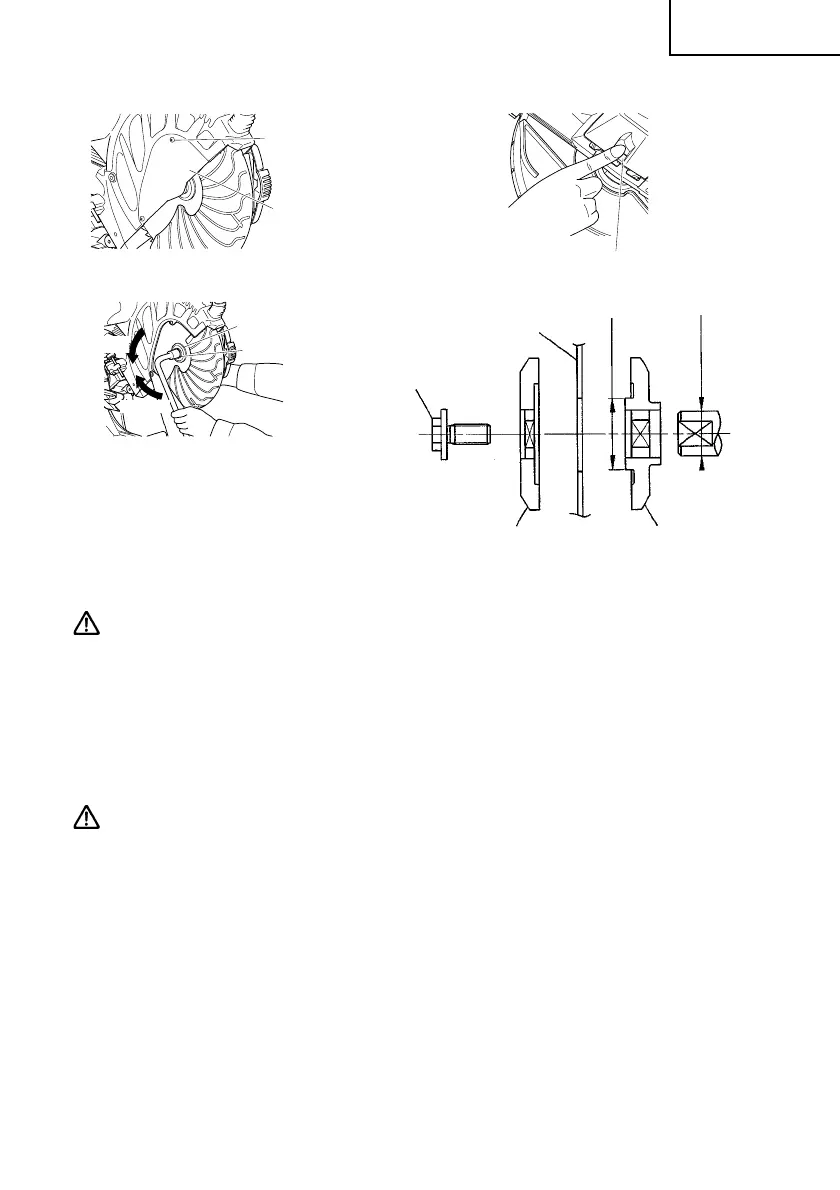

Fig. 52-a Fig. 52-b
Fig. 52-c
Spindle cover
5 mm screw
Spindle lock
Loosen
10 mm bolt
Washer (B)
Tighten
Saw Blade
Bolt
Washer (B) Washer (A)
21/32” (17mm)
1” (25.4mm)
Fig. 52-d
