-8-

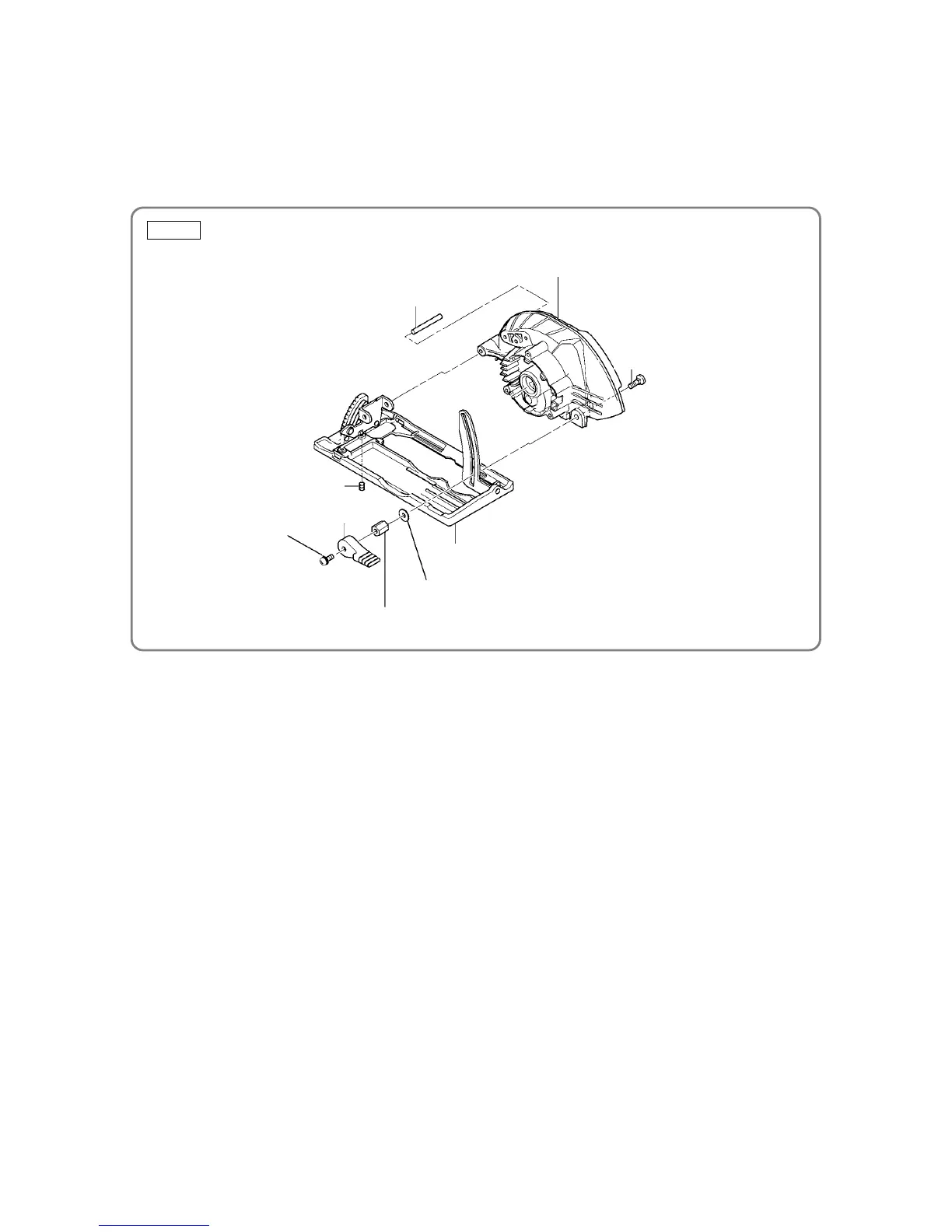

Fig. 4
7. Removal of the Base
(a) Align the bevel plate hole of Base [68] with the Gear Cover Ass’y [26] and then press-fit Roll Pin D6 x
50 [58].
(b) Loosen the Seal Lock Screw (W/Sp. Washers) M6 x 14 [62], and then remove Lever (A) [63], the Lock
Nut [65], Washer (C) [67] and Bolt (Square) M6 x 20 [28].
Bolt (Square) M6 x 20 [28]
Roll Pin D6 x 50 [58]
Base [68]
Seal Lock Screw (W/Sp.
Washers) M6 x 14 [62]
Lock Nut [65]
Washer (C) [67]
Slotted Hd. Set Screw
(Seal Lock) M6 x 8 [61]
Gear Cover Ass’y [26]
Lever (A) [63]
