-9-

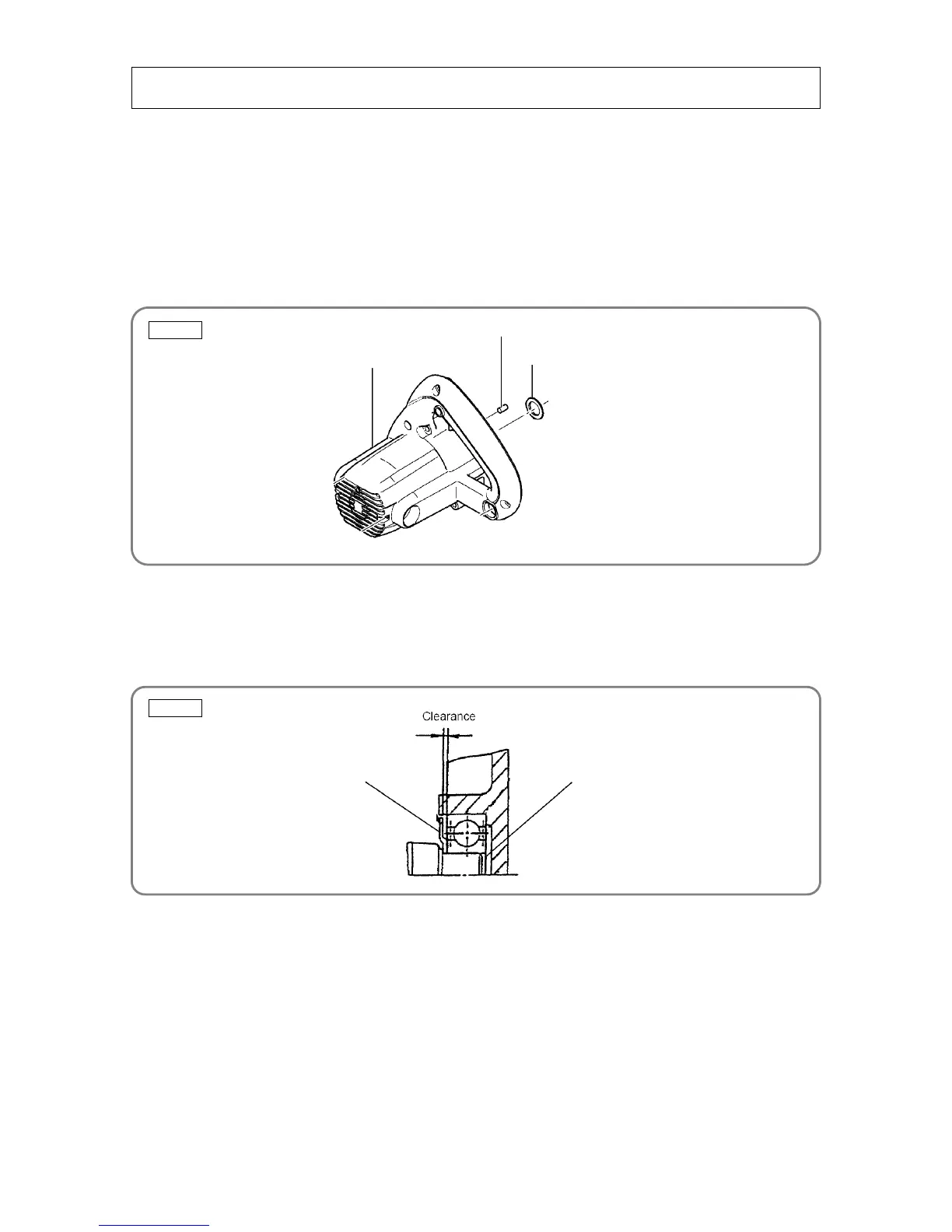

Fig. 5
Fig. 6
Perform reassembly by reversing the order of the disassembly procedure. However, special attention
should be given to the following items.
1. Reassembly of the Bearing Lock and Thrust Washer
Before installing the Armature [23], be sure to install the Bearing Lock [18] and Thrust Washer [19] in the
bearing chamber of the Housing Ass'y [30] in this order. When installing the Thrust Washer [19], be sure to
note its direction of assembly.
2. Replacement of the Ball Bearing 608VVC2PS2L
When only replacing the Ball Bearing 608VVC2PS2L [20], make sure that Washer (A) [21] is reassembled
in the proper direction with clearance between the Ball Bearing 608VVC2PS2L [20] and Washer (A) [21].
3. Reassembly of the Rubber Ring
When installing the Rubber Ring [45], be careful not to damage the bearing chamber groove of the Gear
Cover Ass'y [26].
Reassembly
Washer (A) [21]
Ball Bearing 608VVC2PS2L [20]
Housing Ass'y [30]
Bearing Lock [18]
Thrust Washer [19]
To Next Page
