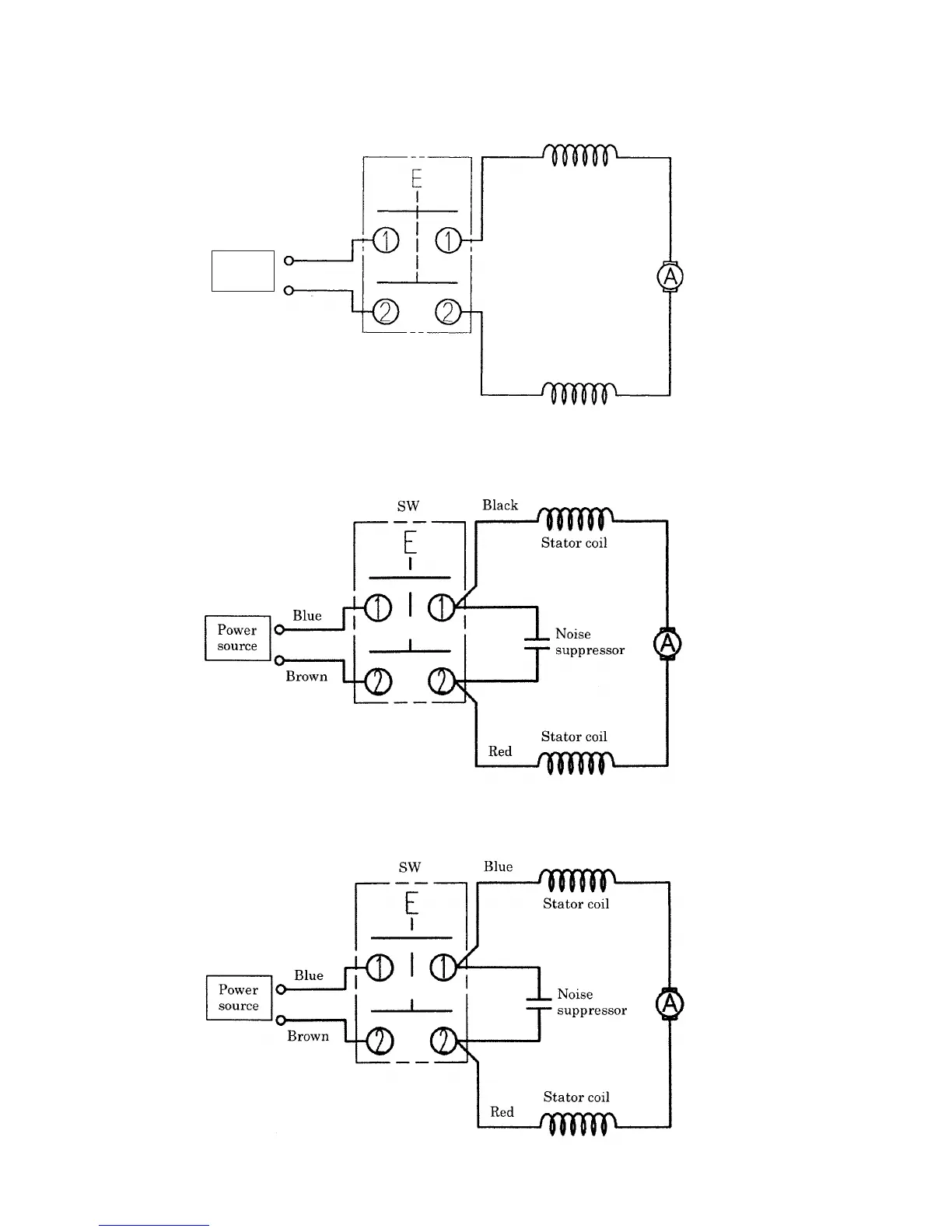

(5) Wiring diagrams (See Figs. from 3 to 6.):
A. Model C 7SB2
Fig. 3
For AUS/GBR (110 V)
For the U.S.A.
Fig. 4
For NZL/Europe
Fig. 5
Stator coil
Stator coil
Black
Red
White
Black
Power
source
SW
