FUNCTIONAL DESCRIPTION
NOTE:
The information contained in this Instruction Manual is designed to assist you in the
safe operation and maintenance of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have first read and
understood all safety instructions contained in this manual.
Some illustrations in this Instruction Manual may show details or attachments that differ
from those on your own power tool.

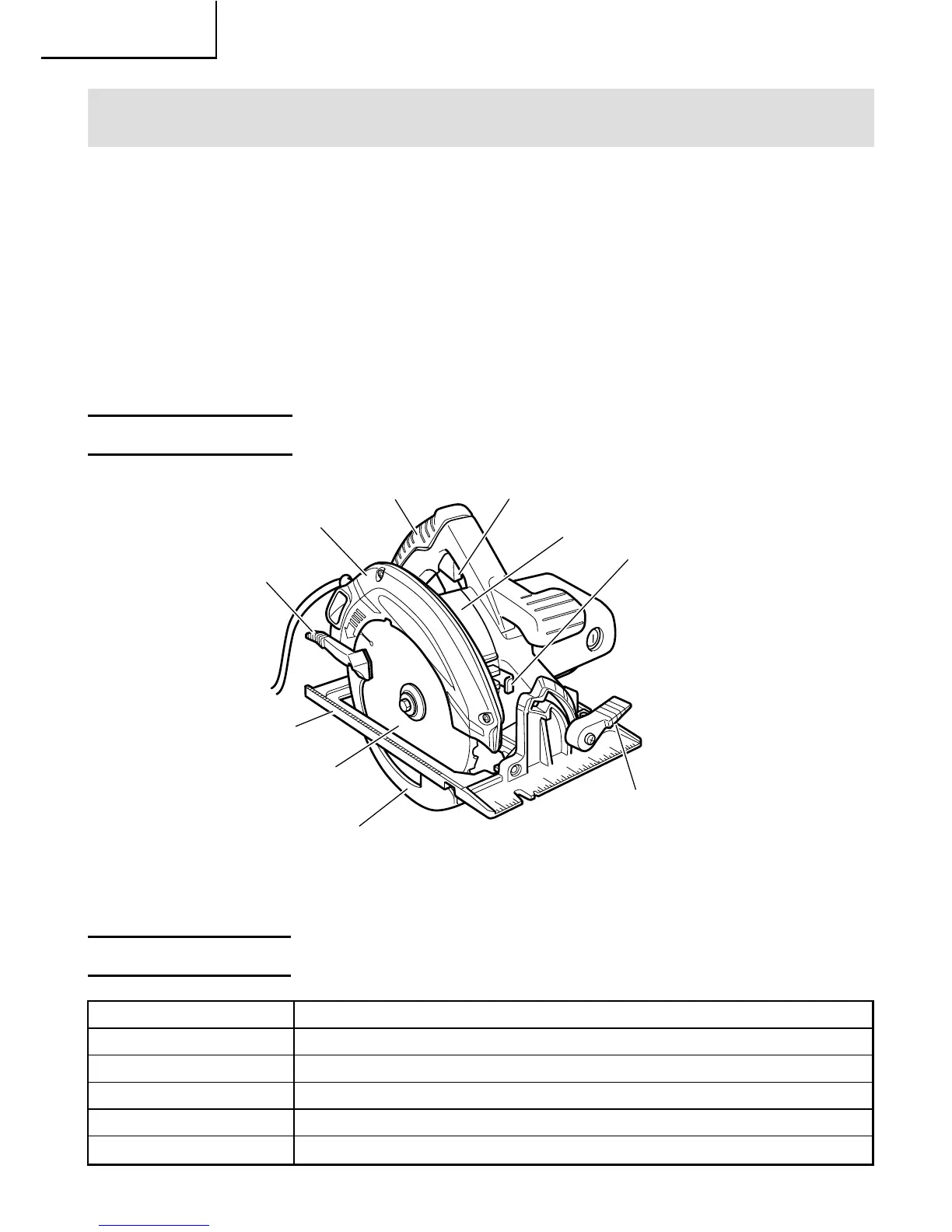

NAME OF PARTS
Motor Single-Phase, Series Commutator Motor
Power Source Single-Phase 120V AC 60Hz, 120V DC
Max. Cutting Depth 2-3/8" (60mm)
Current 15 A
No-Load Speed 5800/min.
Weight (without cord) 10.1 lbs (4.6 kg)
SPECIFICATIONS
Fig. 8
Handle
Switch
Gear Cover
Lock Lever
Lever (A)
Lower Guard
Saw Blade
Base
Lever
(Retracting
Handle)
Blade Cover
To Next Page
