Hitachi C 7SB3 User Manual

-2-
• Removal of the lower guard
• Removal of the lever
[26]
[5]
[6]

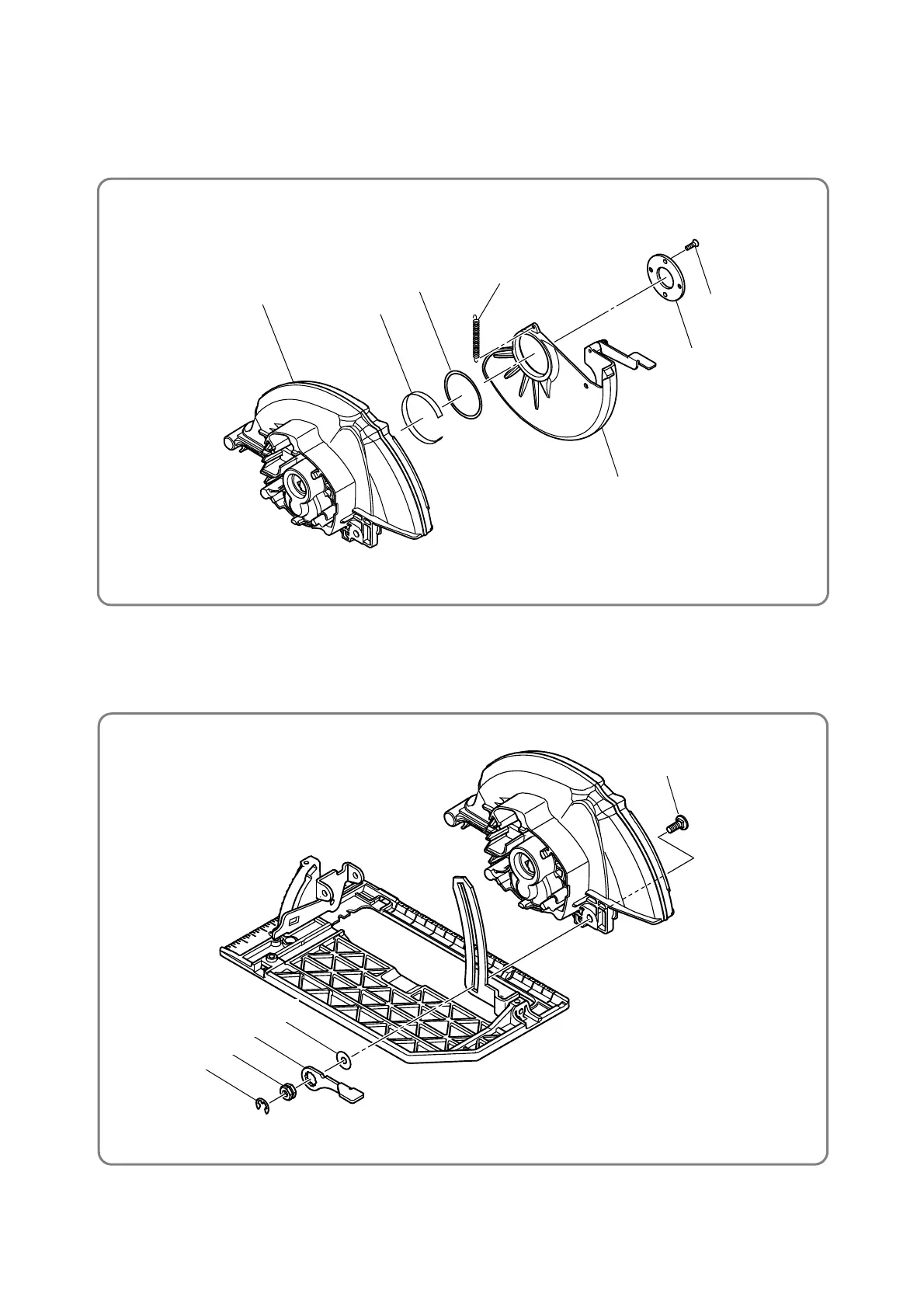

2. Removal of the lower guard
(1) Remove the two Seal Lock Flat Hd. Screws M4 x 10 [10], then remove the Bearing Cover [9].
(2) Remove the hook of the Return Spring [7] from the Gear Cover [26] and Lower Guard [8], then remove
the Lower Guard [8], Liner [5] and Washer [6].
3. Removal of the lever
(1) Loosen the Lever [58] and remove the Retaining Ring (E-type) [56].
(2) Remove the Lever [58], Lock Nut [57], Washer [59], and Bolt (Square) M6 [32].
[7]
[8]
[9]
[10]
[56]
[57]
[58]
[59]
[32]
