-3-
• Separation of the spindle and gear set from the bearing holder
• Removal of the bearing holder and spindle and gear set
[26]
[3]
[2]
[1]
[1]
[2]

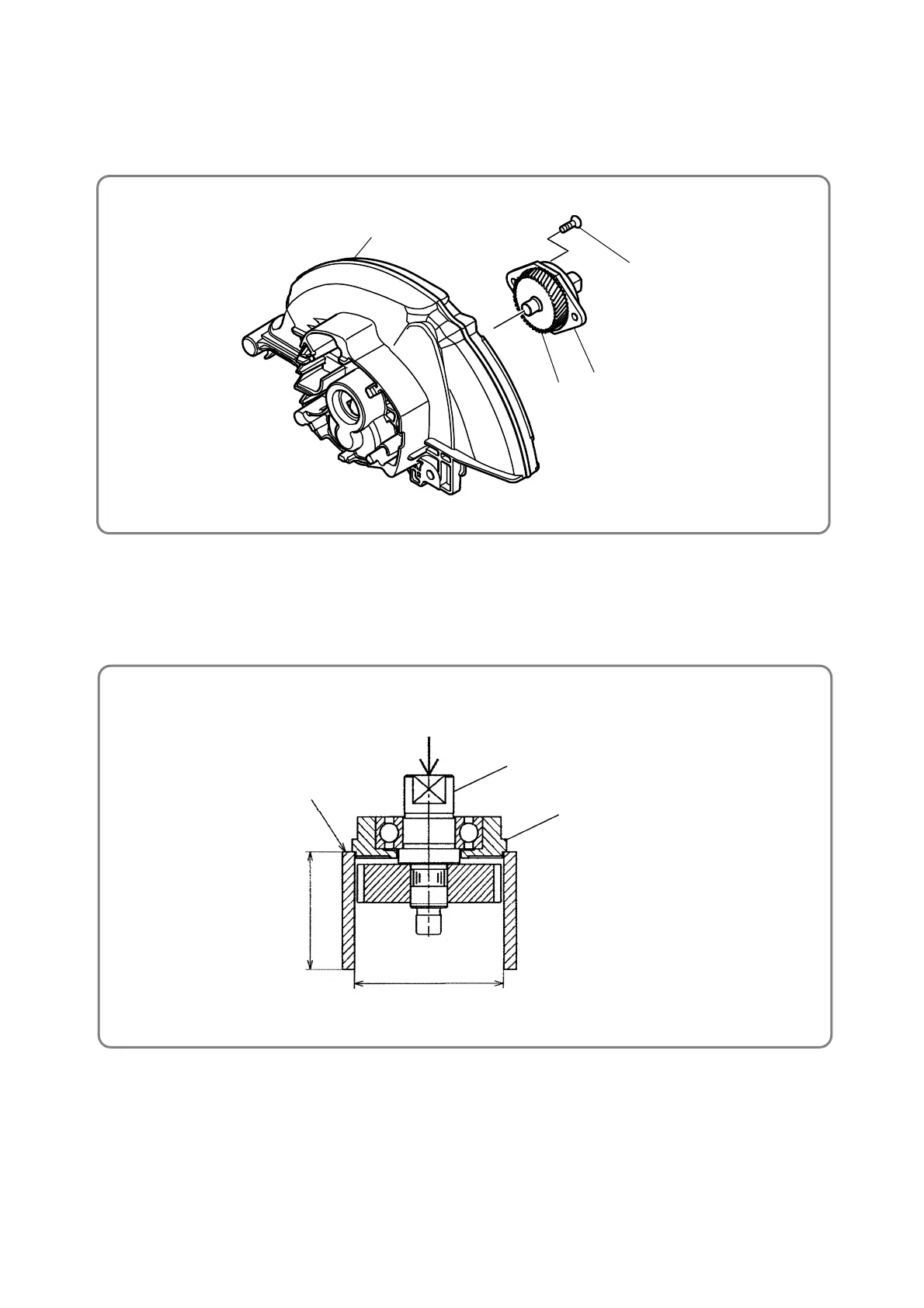

4. Removal of the bearing holder and spindle and gear set
(1) After removing the Lower Guard [8] as described above, loosen the two Seal Lock Flat Hd. Screws M5
x 14 [3].
(2) Remove the Bearing Holder [2] together with the Spindle and Gear Set [1] from the Gear Cover [26].
5. Separation of the spindle and gear set from the bearing holder
(1) Support the Bearing Holder [2] with an appropriate tubular jig.
(2) Push down on the end of the spindle to separate the Spindle and Gear Set [1] from the Bearing Holder
[2].
Push
Tubular jig
60 mm
(2-3/8")
49 mm
(1-15/16")
To Next Page
