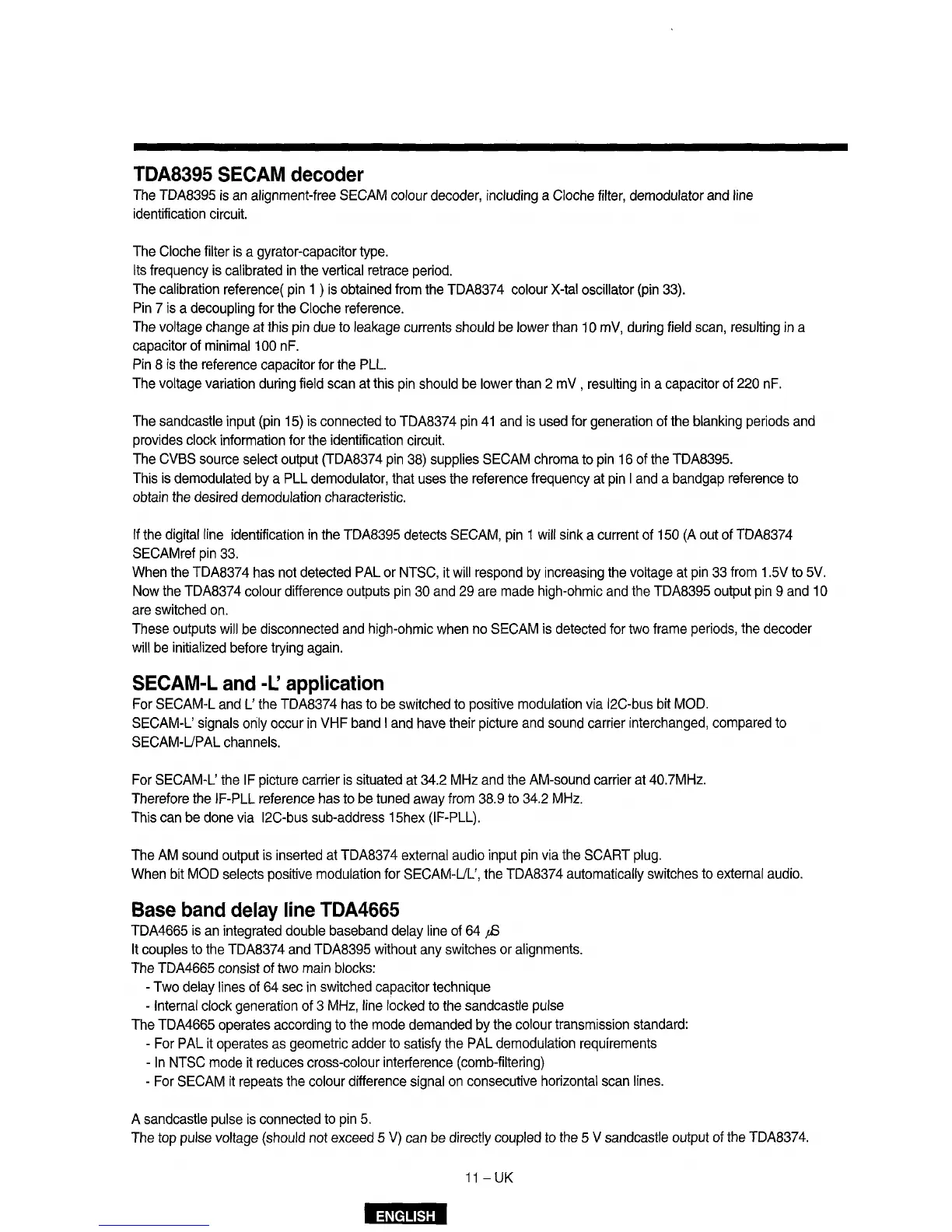

TDA8395
SECAM
decoder
The
TDA8395
is
an
alignment-free
SECAM
colou
r
decoder,
including
a
Cloche
filter,
demodulator
and
line
identification
circuit.
The
Cloche
filter
is
a
gyrator-capacitor
type.
lts
frequency
is
calibrated
in
the
vertical
retrace
period.
The
calibration
reference(
pin
1 )
is
obtained
from
the
TDA8374
colour
X-tal
oscillator
(pin
33).
Pin
7
is
a
decoupling
for
the
Cloche
reference.
The
voltage
change
at
this
pin
dueto
leakage
currents
should
be
lower
than
1 O
mV,
during
field
scan,
resulting
in
a
capacitor
of
minimal100
nF.
Pin
8
is
the
reference
capacitor
for
the
PLL.
The
voltage
variation
during
field
scan
at
this
pin
should
be
lower
than
2
mV
,
resulting
in
a
capacitor
of
220
nF.
The
sandcastle
input
(pin
15)
is
connected
to
TDA837
4
pin
41
and
is
used
for
generation
of
the
blanking
periods
and
provides
clock
information
for
the
identification
circuit.
The
CVBS
source
select
output
(TDA837
4
pin
38)
supplies
SECAM
chroma
to
pin
16
of
the
TDA8395.
This
is
demodulated
by
a
PLL
demodulator,
that
uses
the
reference
frequency
at
pin
I
and
a
bandgap
reference
to
obtain
the
desired
demodulation
characteristic.
lf
the
digitalline
identification
in
the
TDA8395
detects
SECAM,
pin
1
will
sink
a
current
of
150
(A
out
of
TDA8374
SECAMref
pin
33.
When
the
TDA8374
has
not
detected
PAL
or
NTSC,
it
will
respond
by
increasing
the
voltage
at
pin
33
from
1.5V
to
5V.
Now
the
TDA837
4
colou
r
difference
outputs
pin
30
and
29
are
made
high-ohmic
and
the
TDA8395
output
pin
9
and
1 O
are
switched
on.
These
outputs
will
be
disconnected
and
high-ohmic
when
no
SECAM
is
detected
for
two
trame
periods,
the
decoder
will
be
initialized
before
trying
again.
SECAM-L
and
-L:
application
For
SECAM-L
and
L'
the
TDA8374
has
to
be
switched
to
positive
modulation
via
12C-bus
bit
MOD.
SECAM-L'
signals
only
occur
in
VHF
band
I
and
have
their
and
sound
carrier
interchanged,
compared
to
SECAM-UPAL
channels.
For
SECAM-L'
the
IF
carrier
is
situated
at
34.2
MHz
and
the
AM-sound
carrier
at
40.7MHz.
Therefore
the
IF-PLL
reference
has
to
be
tuned
away
from
38.9
to
34.2
MHz.
This
can
be
done
via
12C-bus
sub-address
15hex
(IF-PLL).
The
AM
sound
output
is
inserted
at
TDA837
4
externa!
audio
input
pin
via
the
SCART
plug.
When
bit
MOD
selects
positive
modulation
for
SECAM-UL',
the
TDA8374
automatically
switches
to
externa!
audio.
Base
band
delay
line
TDA4665
TDA4665
is
an
integrated
double
baseband
delay
line
of
64
~
lt
couples
to
the
TDA837
4
and
TDA8395
without
any
switches
o r
alignments.
The
TDA4665
consist
of
two
main
blocks:
-
Two
delay
!ines
of
64
sec
in
switched
capacitar
technique
-
Internal
clock
generation
of
3
MHz,
line
locked
to
the
sandcastle
pulse
The
TDA4665
operates
according
to
the
mode
demanded
by
the
colou
r
transmission
standard:
-For
PAL
it
operates
as
geometric
adder
to
satisfy
the
PAL
demodulation
requirements
-ln
NTSC
mode
it
reduces
cross-colour
interference
(comb-filtering)
-
For
SECAM
it
repeats
the
colour
difference
signal
on
consecutiva
horizontal
scan
lines.
A
sandcastle
pulse
is
connected
to
pin
5.
The
top
pulse
voltage
(should
not
exceed
5
V)
can
be
directly
coupled
to
the
5 V
sandcastle
output
of
the
TDA8374.
11-UK
