Hitachi C251 - How to Release the Magnetic Position Sensor

-9-
MN1-5839 Rev. 4
4-2-2. How to release the magnetic position sensor

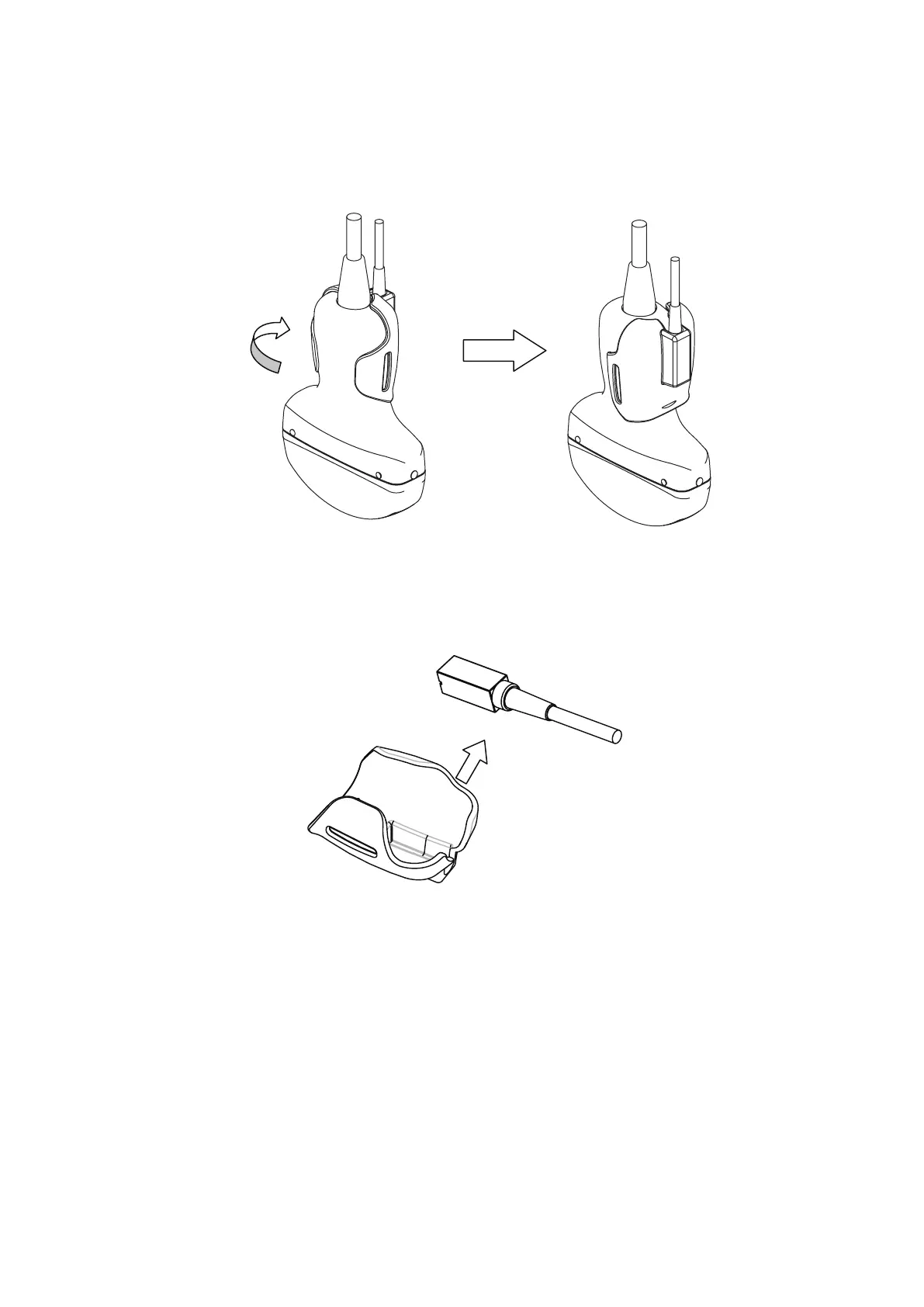

(1) Turn the magnetic position sensor attachment clockwise to release it from the probe as shown in Figure 5.
Figure 5 How to release Magnetic Position Sensor Attachment
(2) Take out the magnetic position sensor from the magnetic position sensor attachment.
Figure 6 How to release Magnetic Position Sensor
