Installation of blade guard
(Fig. 1-8, 8B, 8E, 8F)
NOTE!
The guard bracket may come already mounted
to the gear case on some models.
Install the blade guard and the bracket spacers
(1) (If so equipped) on drive shaft tube against
angle transmission. Tighten the guard bracket
firmly so that the blade guard does not swing or
move down during operation.
Install the blade guard to the guard bracket,
which also secures the guard to the gear case
using the two guard mounting screws.
CAUTION!
Some blade guards are equipped with sharp line
limiters. Be careful with handling it.
Throttle wire / stop cord
Remove air cleaner cover. (Fig. 1-4)
Connect stop cords. (Fig. 1-5)
Connect throttle wire end to carburetor. (Fig.1-6)
Cover throttle wire and stop cords together with
protective tube provided up to air cleaner cover.
(Fig. 1-7)

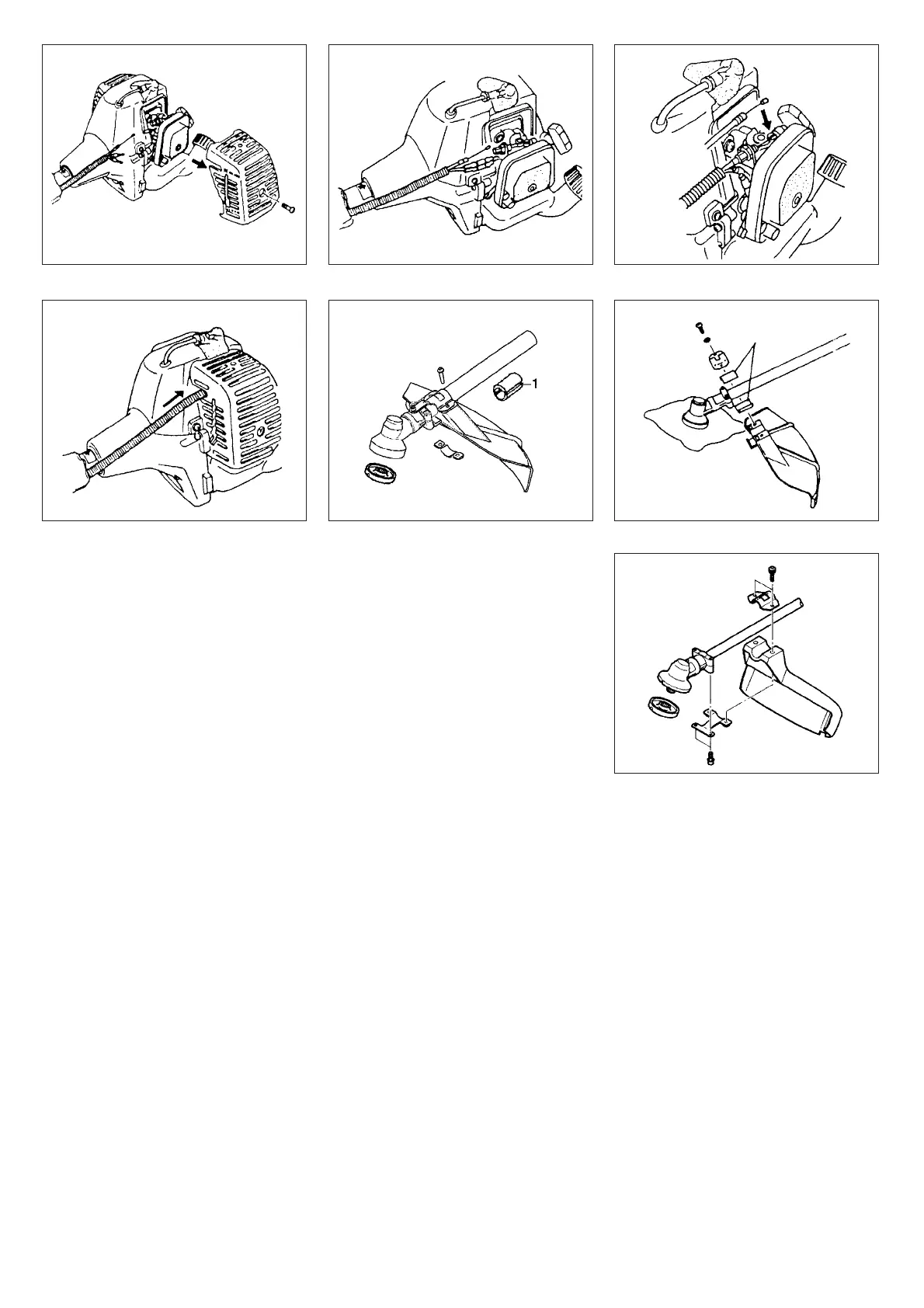

Fig. 1-4 Fig. 1-5 Fig. 1-6
Fig. 1-7 Fig. 1-8 Fig. 1-8B
1
Fig. 1-8E
