4. CH UNIT INSTALLATION
DANGER:
- Do not install the Indoor Unit in a ammable environment to avoid re or an explosion.
WARNING:
- Check to ensure that the ceiling slab is strong enough.
- Do not install the CH Unit outside. If installed outdoors, an electric hazard electric leakage will occur.
4.1. FACTORY-SUPPLIED ACCESSORIES
Check to ensure that the following accessories are packed with the CH Unit.

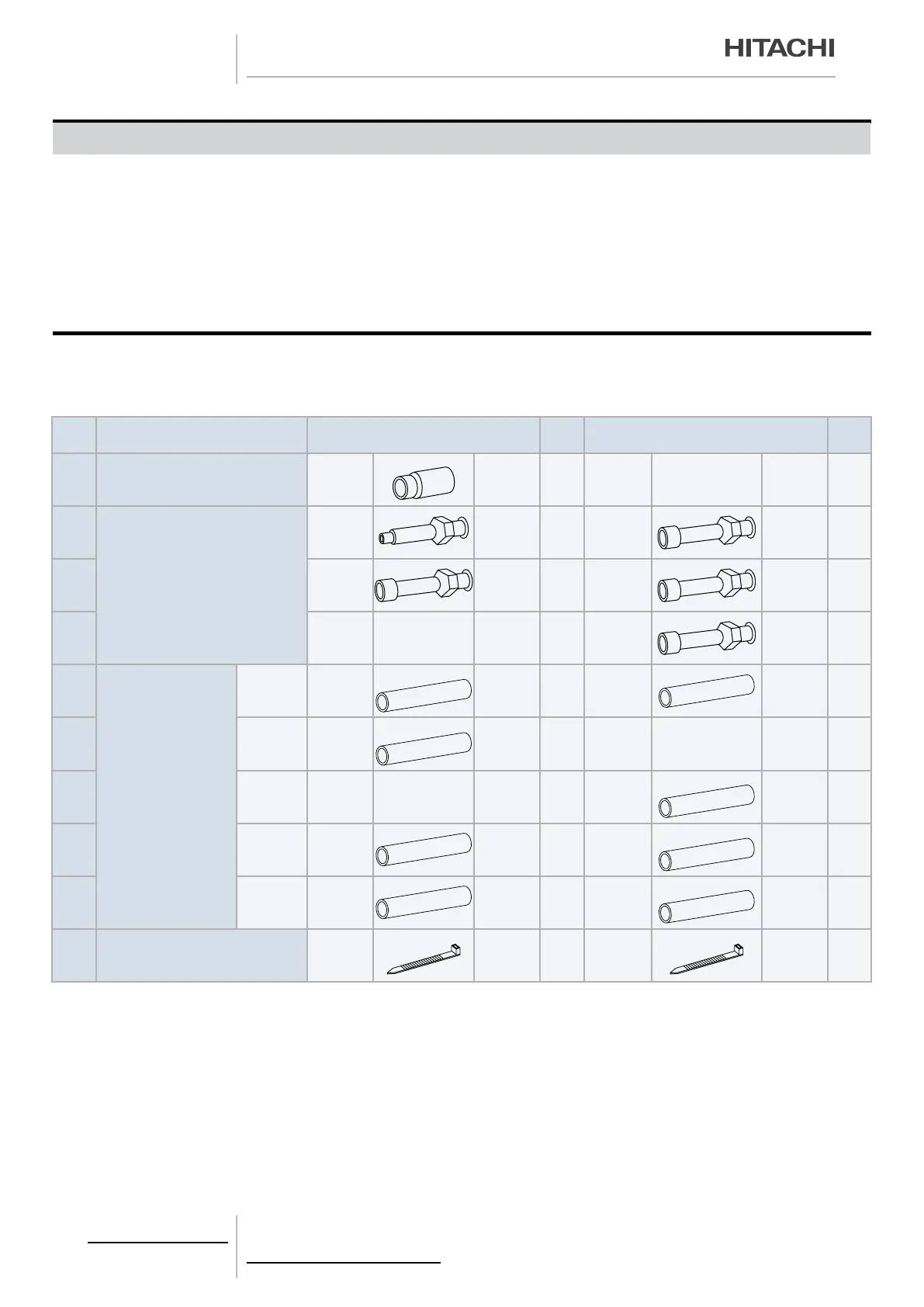

Item Accessory Model CH-6.0N2 Qty Model CH-10.0N2 Qty
Reducer ID15.88 ID19.05 1 - -
Accessory Pipe (for Flare Nut)
OD12.7
OD15.88 2 ID22.2 OD19.05 2
ID19.05 OD19.05 1 ID19.05 OD19.05 2
- - ID19.05 OD15.88 1
Insulation Material
ID16
2 1
ID20 1 - -
ID22 - - 2
ID38 2 1
ID43 1 2
Clamp 6 6
ID: Inner Diameter
OD:Outer Diameter
CH UNIT INSTALLATION
PMML0309A rev.1 - 09/2015 - P5416573
