Hitachi CJ 14DSL Technical Data And Service Manual

-3-

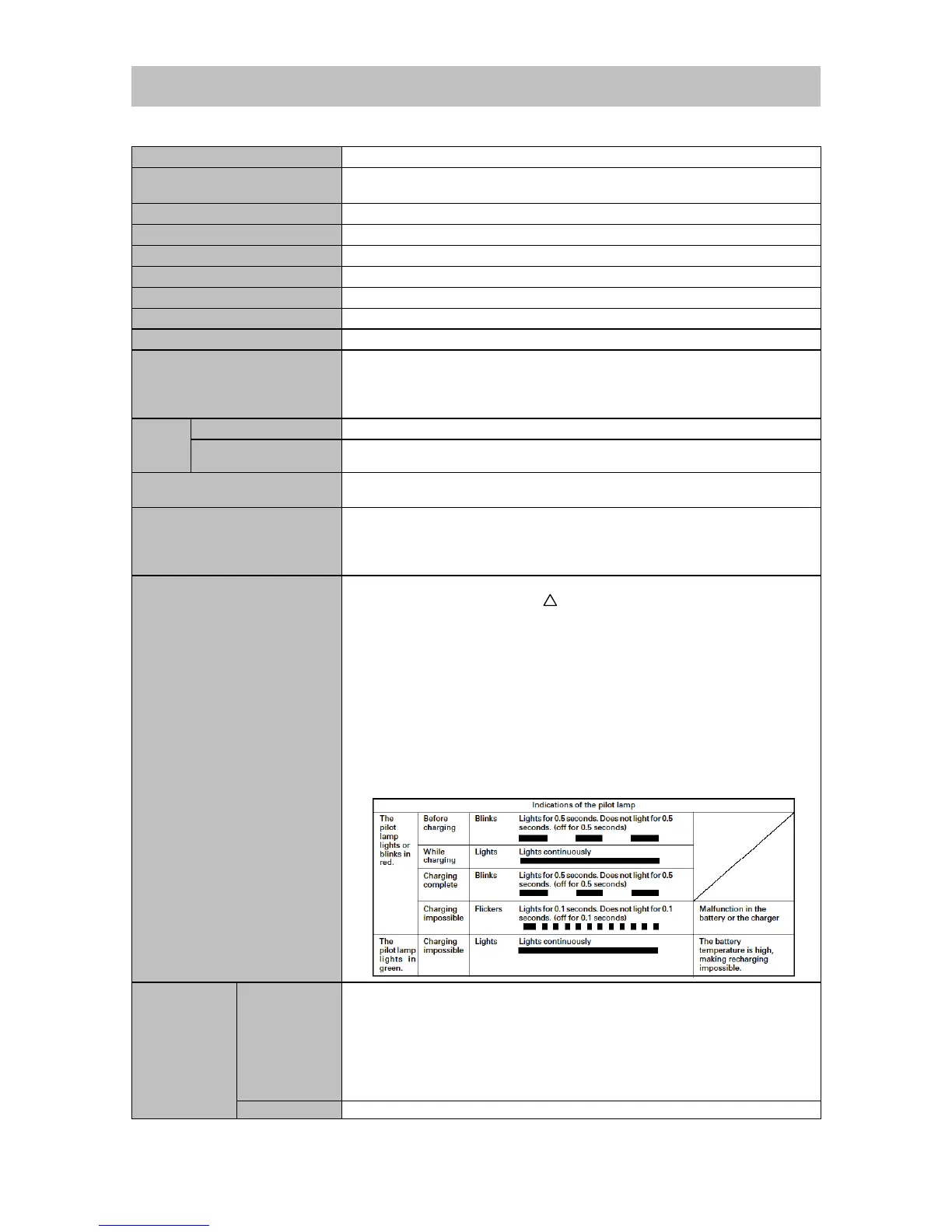

1. Specifications
Model CJ 18DSL
Capacity
Max. cutting thickness Wood 135 mm (5-5/16")
Mild steel 10 mm (3/8")
No-load rotation speed 0 to 2,400 min
-1
Length of stroke 26 mm (1")
Min. cutting radius 25 mm (1")
Type of motor DC magnet motor with fan
Type of switch Trigger switch with rotation selector and brake (with ON-OFF lock)
Max. cutting angle 45° (right and left)
LED light White LED
Enclosure
Housing ------- Glassfiber reinforced polycarbonate resin and elastomer
Gear holder -- Aluminum alloy die casting alloy
Battery --------- Glassfiber reinforced polycarbonate resin
Charger ------- ABS resin
Main body 2.4 kg (5.3 lbs) (including the battery)
Weight
Charger
(including the cord)
0.6 kg (1.3 lbs)
Overall length, overall height
and overall length
277 mm x 213 mm x 76 mm
(10-29/32” x 8-3/8” x 2-63/64”)
Battery
(Type BSL 1830)
Sealed cylindrical lithium-ion storage battery
Nominal voltage ------DC 18 V
Nominal life -----------Charging/discharging: Approx. 1,500 times
Nominal capacity ---- 3.0 Ah
Charger
(Model UC 18YRSL)
Overcharge protection system:
(1) Battery voltage detection (- V system)
Battery temperature detection (dT/dt system)
(2) Battery surface temperature detection (thermostat or thermistor)
(3) 120-minute timer
(4) Stop current detection
Power input: 90 W
Charging time: Approx. 45 minutes [for Type BSL 1830 battery at 20°C
(68°F)]
Operable ambient temperature range: 0°C to 40°C (32°F to 104°F)
The maximum allowable temperature of the Type BSL 1830 battery is
50°C (122°F).
Indicated method of battery charging function
2LSCK
Charger (UC 18YRSL) --------------------------------------------- 1
Battery (BSL 1830) -------------------------------------------------- 2 (LSCK: 1)
Battery cover ---------------------------------------------------------- 1
Blade (No. 41) -------------------------------------------------------- 1
Splinter guard --------------------------------------------------------- 1
Chip cover ------------------------------------------------------------- 1
Plastic case ----------------------------------------------------------- 1
Standard
accessory
NN Without charger, battery, battery cover or plastic case
SPECIFICATIONS

Hitachi CJ 14DSL Specifications

General

Brand	Hitachi
Model	CJ 14DSL
Category	Cordless Saw
Language	English
