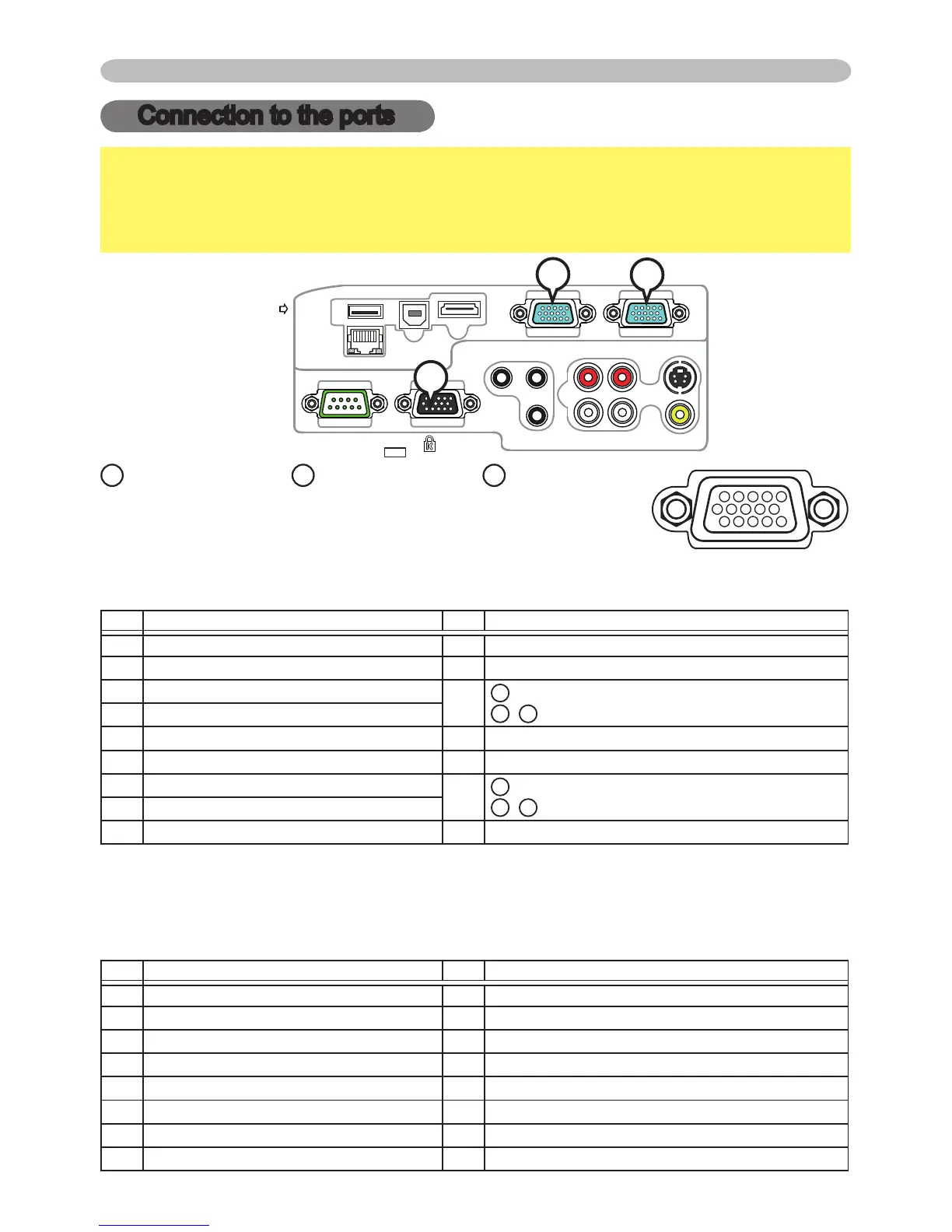

Connection to the ports
Connection to the ports
NOTICE
►Use the cables with straight plugs, not L-shaped ones, as the
input ports of the projector are recessed.
►Only the signal that is input from the COMPUTER IN1 or IN2 can be output
from the MONITOR OUT port.
COMPUTER IN1COMPUTER IN2
HDMI
USB TYPE B
S-VIDEO
VIDEO
AUDIO OUT
AUDIO IN3AUDIO IN1
AUDIO IN2
MIC
MONITOR OUT
CONTROL
USB
TYPE A
DC5V
0.5A
B
A
C
A
COMPUTER IN1,
B
COMPUTER IN2,
C
MONITOR OUT
D-sub 15pin mini shrink jack
(1) for PC signal
• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. Signal: TTL level (positive/negative)
• Composite sync. Signal: TTL level
Pin Signal Pin Signal
1
Video Red 10 Ground
2 Video Green 11 (No connection)
3 Video Blue
12
A
: SDA (DDC data)
B
,
C
: (No connection)
4 (No connection)
5 Ground 13 H. sync / Composite sync.
6 Ground Red 14 V. sync.
7 Ground Green
15
A
: SCL (DDC clock)
B
,
C
: (No connection)
8 Ground Blue
9 (No connection) - -


 
(2) for Component signal
• Y : Component video Y with composite sync, 1.0±0.1 Vp-p, 75 Ω terminator
• Cr/Pr : Component video Cr/Pr, 0.7±0.1 Vp-p, 75 Ω terminator
• Cb/Pb : Component video Cb/Pb, 0.7±0.1 Vp-p, 75 Ω terminator
System:480i@60,480p@60,576i@50,576p@50,720p@50/60,1080i@50/60,1080p@50/60
Pin Signal Pin Signal
1
Cr/Pr 9 (No connection)
2 Y 10 Ground
3 Cb/Pb 11 (No connection)
4 (No connection) 12 (No connection)
5 Ground 13 (No connection)
6 Ground Cr/Pr 14 (No connection)
7 Ground Y 15 (No connection)
8 Ground Cb/Pb - -

Hitachi CP-A220N Specifications

General

Matrix size	0.63 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	106 kHz
Horizontal synchronization (min)	15 kHz
Throw ratio	0.3:1
Focal length range	- mm
Lamp power	210 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	5000 h
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
RMS rated power	10 W
Number of built-in speakers	1
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Optical disc player type	Not included
Noise level	35 dB
Certification	UL, C-UL, FCC, CE
Noise level (economic mode)	28 dB
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	310 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	303 mm
Width	344.93 mm
Height	85.09 mm
Weight	3900 g
